Installing Wiper Arm For Rear Window Wiper System
WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
- Switch on ignition and move rear wiper motor to its end position by activating it once.
- Switch off the ignition.

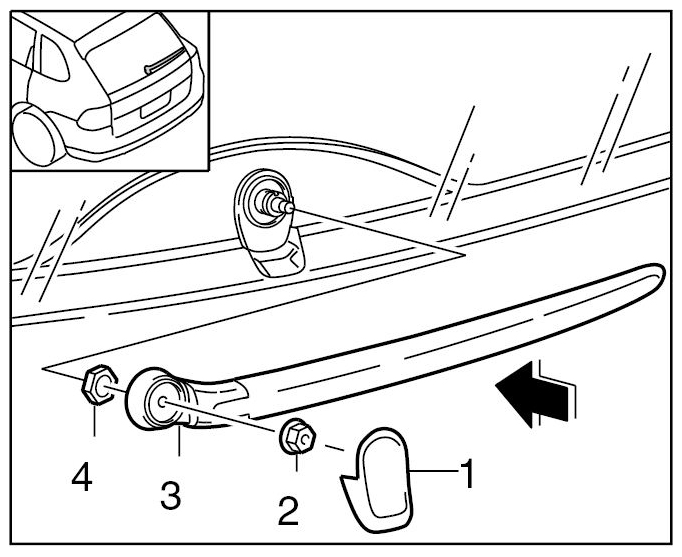

- Fit wiper arm -3-
and secure with the fastening nut -2-
. → Tightening torque: 12 Nm (9 ftlb.)
Information
Before fitting the cap, check the retaining lugs of the cap for damage. The cap must be replaced in the event of damage or if you have any doubts about it.
- Fit cover cap -1- and press in until it is felt to engage.
