Installing Wiper Shaft

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

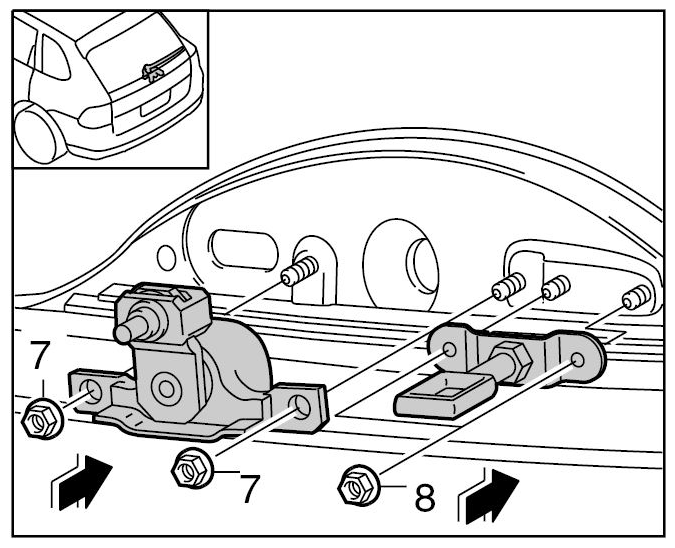

Tighten wiper shaft using fastening nuts -7- . → Tightening torque: 5.3 ftlb.

Fig 1: Installing Wiper Shaft And Catch Bar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position the catch bar and tighten with the fastening nuts -8- . → Tightening torque: 5.3 ftlb.

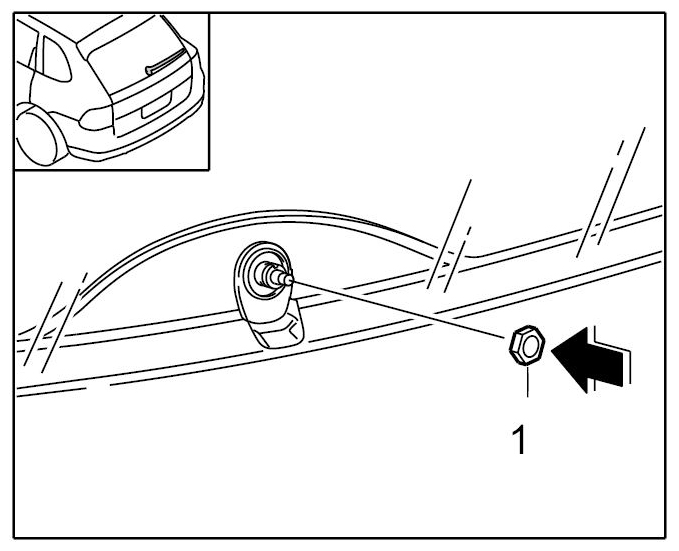

Tighten the fastening nut -1- . → Tightening torque: 13 ftlb.

Fig 2: Tightening Fastening Nut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip in cover for wiper shaft.

Fig 3: Installing Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
