Removing Wiper Motor For Rear Window Wiper System

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

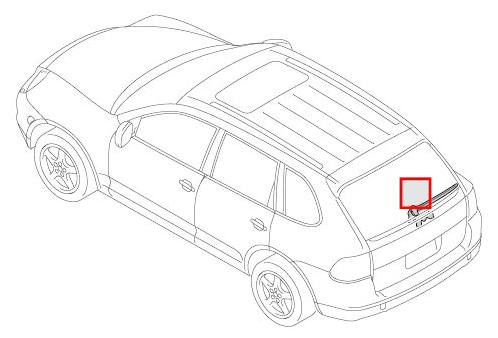

Fig 1: Overview Of Wiper Motor For Rear Window Wiper System
G09415198Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Switch off ignition, remove ignition key and set wiper switch on steering column switch to the off  position.
  2. Unclip cover cap -1-  at side and remove it.

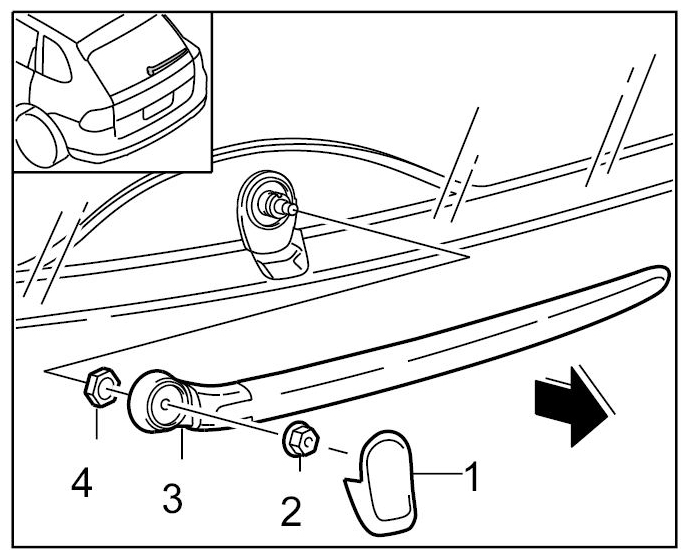

    Fig 2: Unscrewing Rear Window Wiper Fastening
    G09415199Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Unscrew fastening nut -2-  .
  4. Pivot wiper arm -3-  up and down a little and remove.
  5. Unscrew fastening nut -4-  .
  6. Unplug the electrical connection and unscrew the three fastening screws -5-  . Remove the wiper motor.

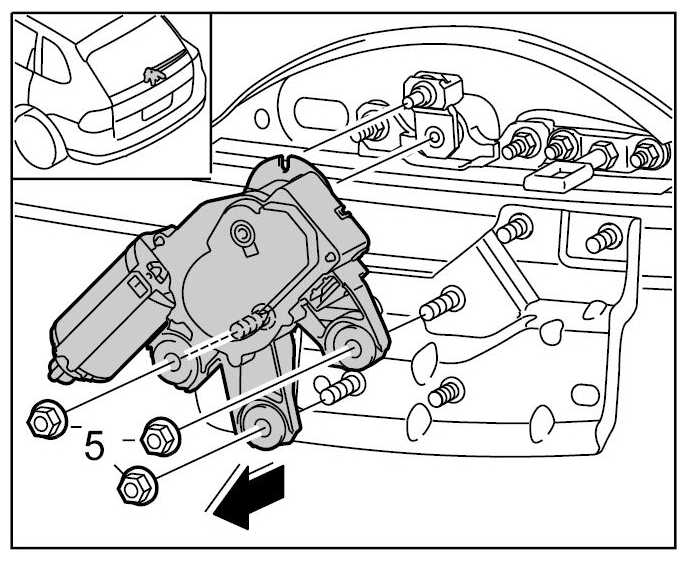

    Fig 3: Unscrewing Wiper Motor Fastening
    G09415200Courtesy of PORSCHE CARS NORTH AMERICA, INC.
