Removing Wiper Blade

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Electrically moved components

Danger of limbs being trapped or severed

→ Switch off electric power to drive motor.

→ Make sure it does not switch on again.

→ Check that there is no electric charge.

Lift up the wiper arm.
Only for vehicles up to vehicle identification numbers specified below: Unclip cover on wiper arm.

RoW

9P8LA

10081

9P8LA

40054

9P8LA

90089

USA

9P8LA 10166

9P8LA 40068

9P8LA 90044

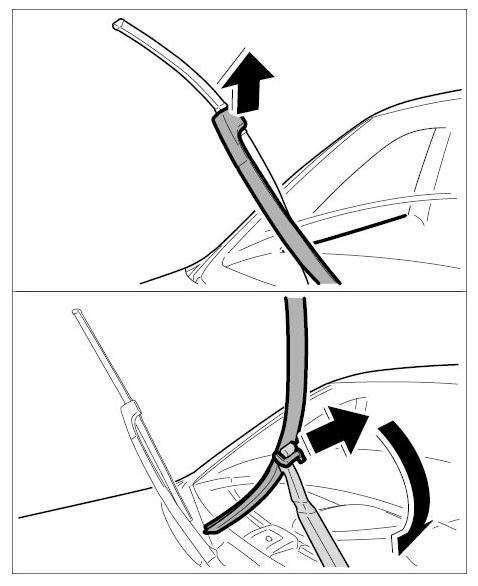

Fig 1: Disengaging Wiper Blade
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Turn wiper blade by 90° and pull it off the wiper arm.
