Installing Wiper Blade

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Electrically moved components

Danger of limbs being trapped or severed

→ Switch off electric power to drive motor.

→ Make sure it does not switch on again.

→ Check that there is no electric charge.

Slide wiper blade onto the wiper arm. Swivel wiper blade by 90°.

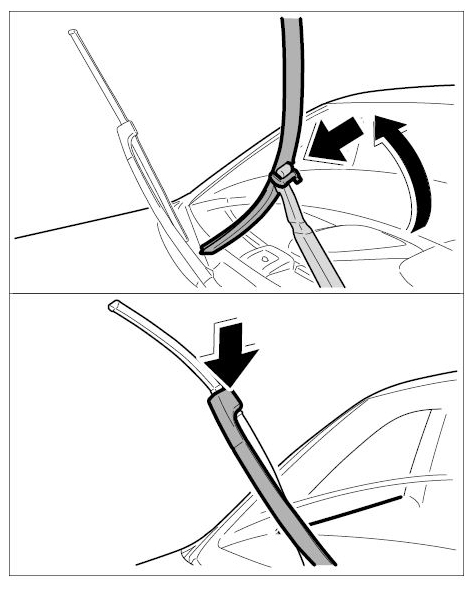

Fig 1: Engaging Wiper Blade
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check that the wiper blade is fitted securely.

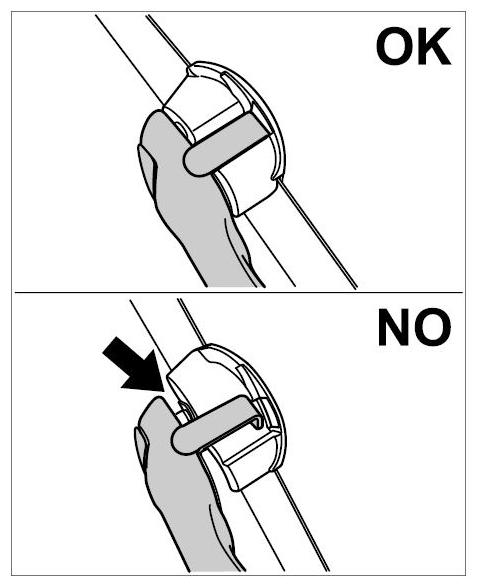

Fig 2: Wiper Blade Fitted Securely
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit cover on the wiper arm and clip it in (only for vehicles specified under → 1).
Check that the cover is fitted securely.
Spray windscreen with spray nozzles and check function of wiper blades.
