Disengaging And Engaging Off-Road Stabiliser

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Before the fluid level is checked, faultless operation must be ensured. >> Disengage and engage << the off-road stabiliser four times. The off-road stabiliser must shift audibly.

To do this, switch on the ignition and engage the Low Range off-road driving program. Press the brake pedal and briefly press the -rocker switch (direction arrow)- forwards; the -indicator light (arrow)- comes on.

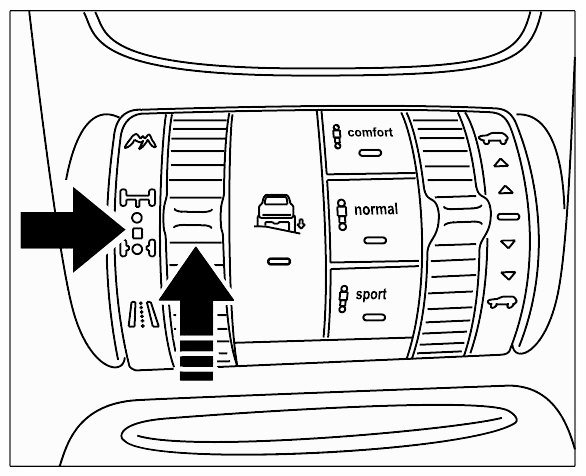

Fig 1: Pressing Rocker Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press the -off-road stabiliser button- four times. The -indicator light (arrow)- comes on. Only trigger the next switching operation when the off-road stabiliser has audibly >> disengaged or engaged <<.

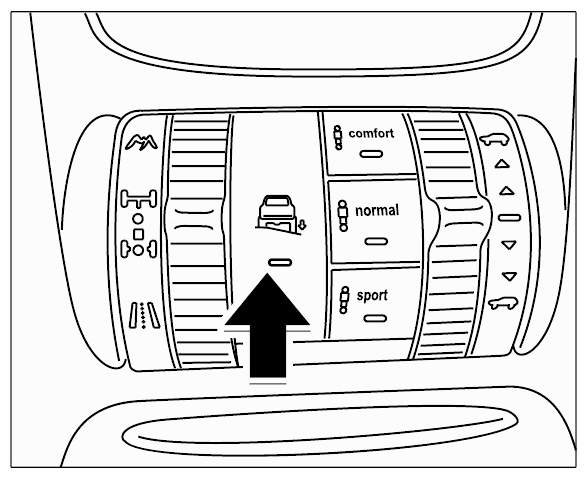

Fig 2: Pressing Off-Road Stabiliser Button
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Switch off the >> Low Range << off-road driving program again.
