Rear Light

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Rear fog light. P 21 W
  2. Direction indicator light. P 21 W
  3. Reversing light. P 21 W

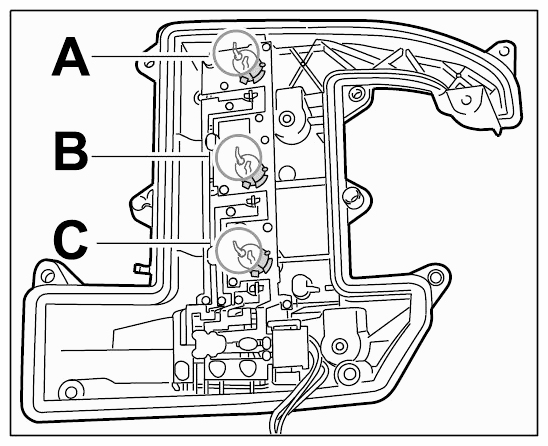

    Fig 1: Identifying Rear-Light Bulbs
    G09408139Courtesy of PORSCHE CARS NORTH AMERICA, INC.
