Checking Functional State Of Battery

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect battery tester to the vehicle battery.

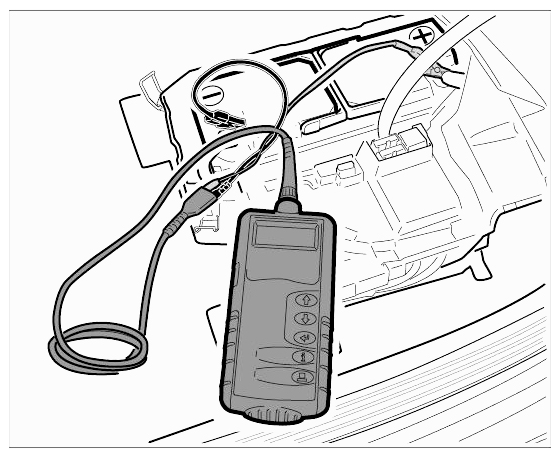

    Fig 1: Connecting Battery Tester To Vehicle Battery
    G09408147Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. The values (A), the actual battery temperature, the battery type, etc. must be input on the battery tester. Follow the operating instructions provided for the tester.
  3. After a short time, the result of the test will be displayed. The functional state and the charge state, for example, will be displayed, depending on the type of tester.
  4. Continue the procedure using the values displayed on the battery tester. Example in → WM 270601 CHECKING BATTERY WITH BATTERY TESTER .
