Removing Convertible Top Control Unit

WARNING: This page is about a different car, the 2016 Porsche Boxster, 2015 Porsche Boxster, 2014 Porsche Boxster, and 2013 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit

Information

Always comply with the regulations for handling ESD-sensitive components!

Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche .
The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed .
Never touch the electric pins and plug contacts .

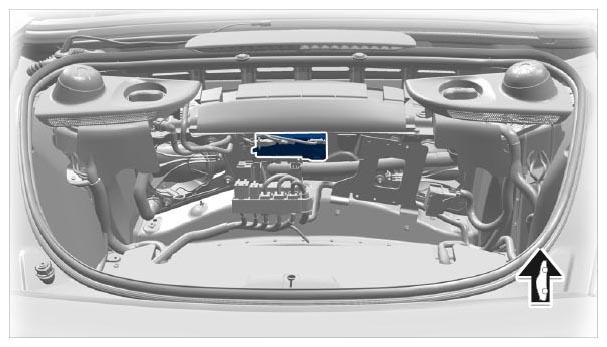

Fig 1: Identifying Convertible Top Control Unit Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

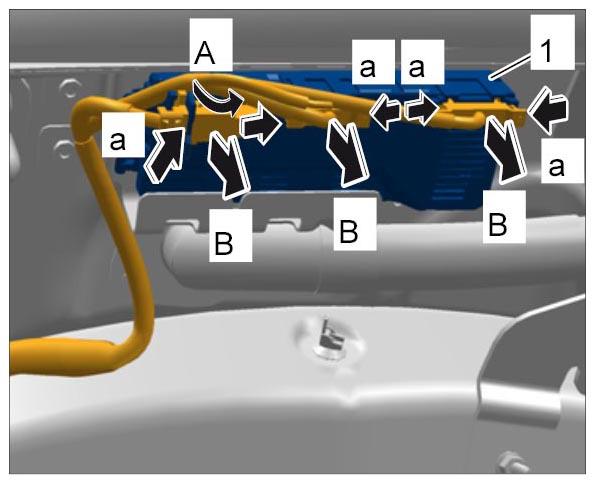

Release electric plug connections from the convertible top control unit -1- (-a- ), fold up retaining bar -A- and pull off -B- .

Fig 2: Pulling Electric Plug Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

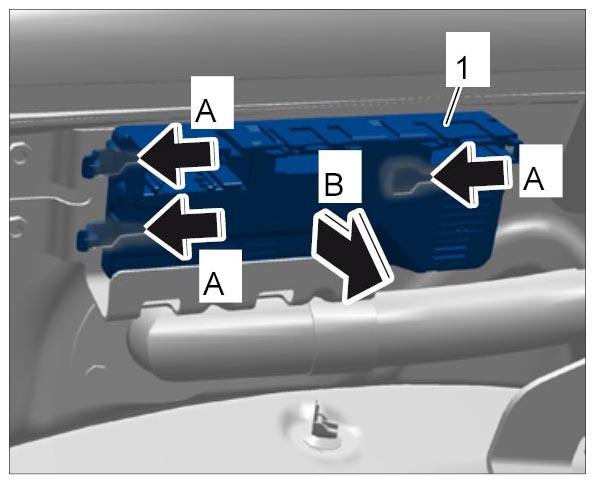

Slide the convertible top control unit -1- to the left -A- and remove from the locks -B- .

Fig 3: Removing Convertible Top Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
