Installing Convertible Top Control Unit

WARNING: This page is about a different car, the 2016 Porsche Boxster, 2015 Porsche Boxster, 2014 Porsche Boxster, and 2013 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

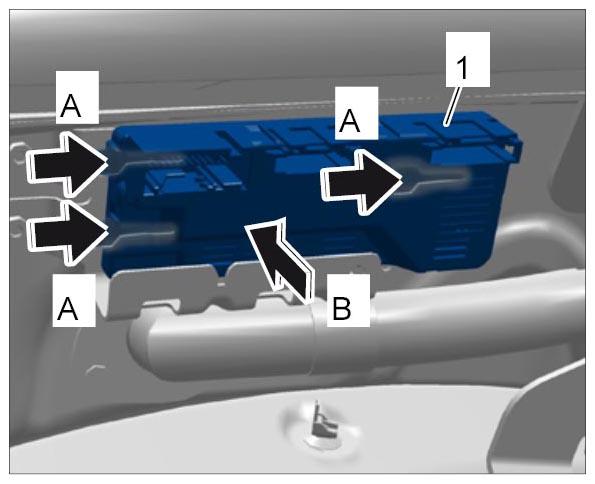

Insert convertible top control unit -1- into the notches in the catches -B- and slide to the right -A- until the retaining lugs latch.

Fig 1: Installing Convertible Top Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

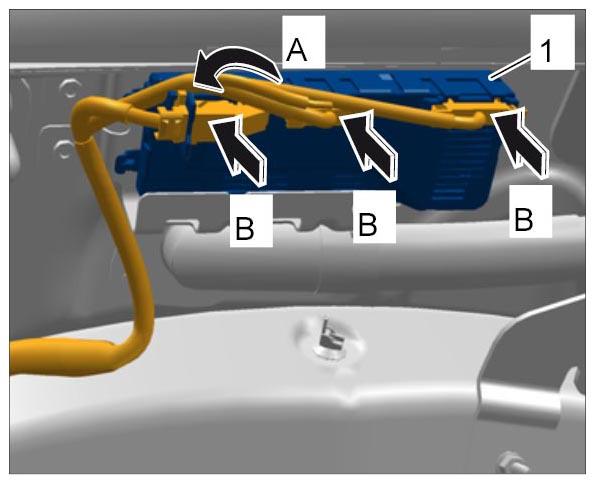

Plug in electric plug connections from the convertible top control unit -1- (-B- ) and lock them -A- .

Fig 2: Connecting Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
