Removing Microswitch For Roof

WARNING: This page is about a different car, the 2016 Porsche Boxster, 2015 Porsche Boxster, 2014 Porsche Boxster, and 2013 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle .
Naturally, some steps also have to be performed on the opposite side of the vehicle as well .

Unplug electric plug connection -1- for microswitch and remove wiring harness.

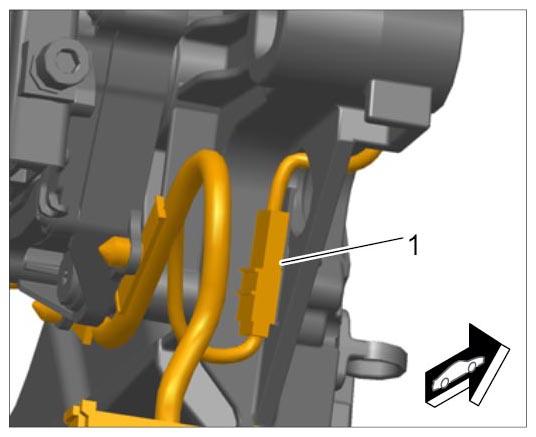

Fig 1: Disconnecting Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carefully drill out the blind rivets -2- for the microswitch -1- .
Pull the microswitch -1- from the convertible top support and remove.

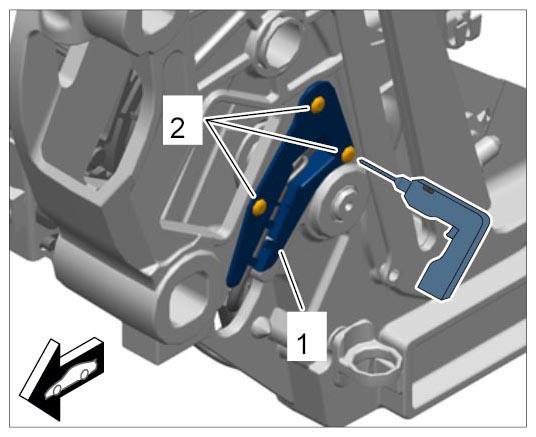

Fig 2: Removing Microswitch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
