Installing Microswitch For Roof

WARNING: This page is about a different car, the 2016 Porsche Boxster, 2015 Porsche Boxster, 2014 Porsche Boxster, and 2013 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle .
Naturally, some steps also have to be performed on the opposite side of the vehicle as well .

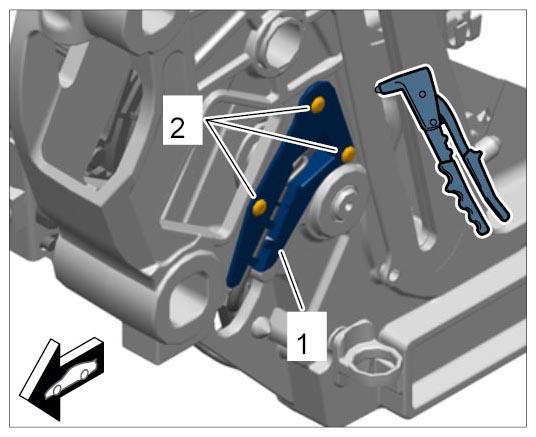

Insert microswitch -1- in the correct position into the convertible top support.

Fig 1: Installing Microswitch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert blind rivets -2- and rivet microswitch -1- to the convertible top support using the Hand riveting tool Nr.124-1 Pos.2 .

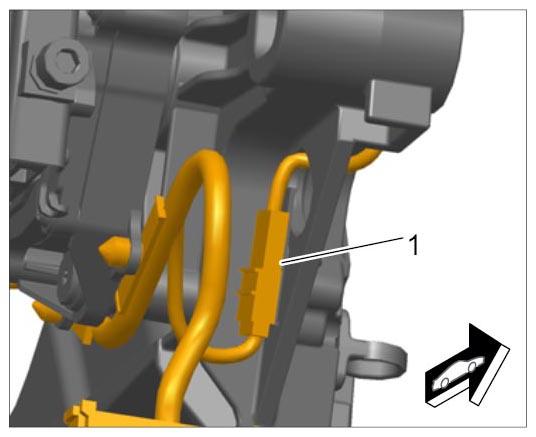

Insert wiring harness and electric plug connection -1- until the connector engages securely.

Fig 2: Connecting Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
