Removing Rubber Seal With Rail (Upper Side)

WARNING: This page is about a different car, the 2016 Porsche Boxster, 2015 Porsche Boxster, 2014 Porsche Boxster, and 2013 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

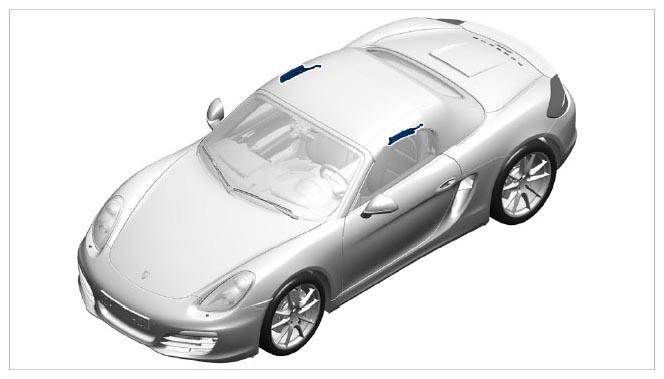

Fig 1: Identifying Upper Lateral Seal

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Carefully guide screw tool through the cut-outs in the seal at the positions shown.
Unscrew and remove screws -2- .
Remove rubber seal with rail -1- .

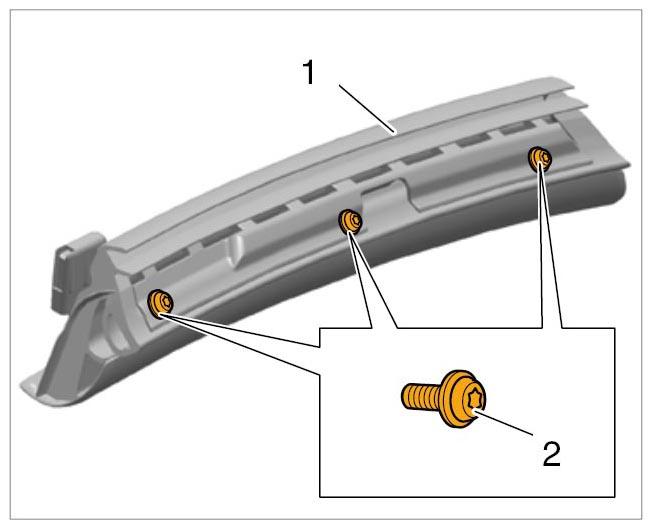

Fig 2: Removing Seal

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
