Removing Rubber Seal With Rail (Lower Lateral)

WARNING: This page is about a different car, the 2016 Porsche Boxster, 2015 Porsche Boxster, 2014 Porsche Boxster, and 2013 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

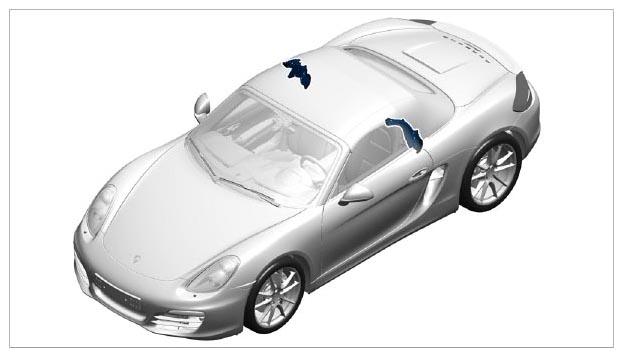

Fig 1: Identifying Rubber Seal With Rail (Lower Lateral)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

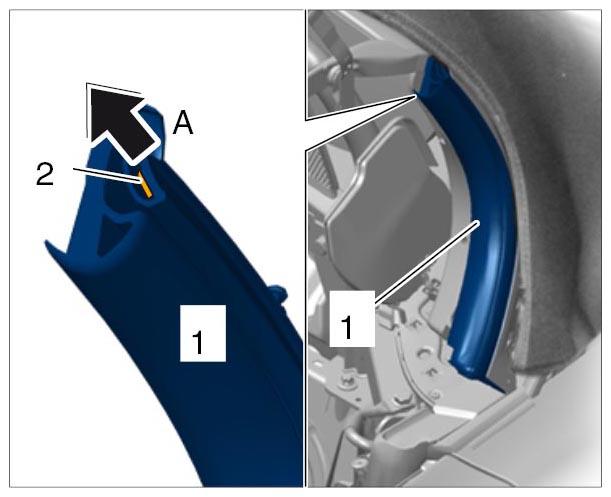

Unhook seal at the top.
1. 1.1. Pull seal -1- up and off. -arrow A-
2. 1.2. Unhook seal -1- at the clip -2- .
Fig 2: Removing Top Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

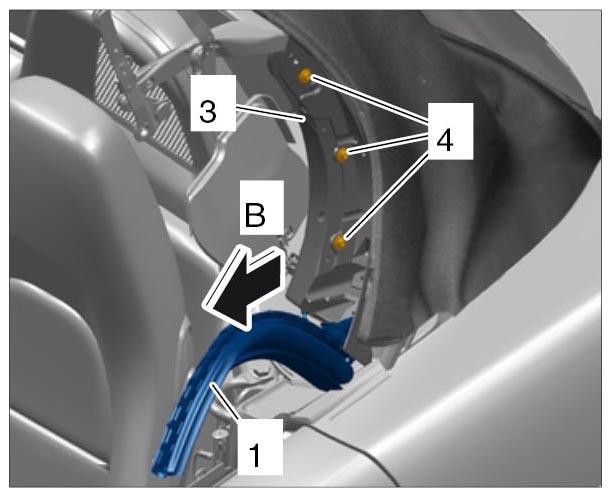

Detach rubber seal with rail.
1. 2.1. Pull the seal -1- out of the retaining strip -3- . -arrow B-
2. 2.2. Unscrew and remove fastening screws -4- .
Fig 3: Pulling Seal Of Retaining Strip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove rubber seal with rail.
Remove seal.

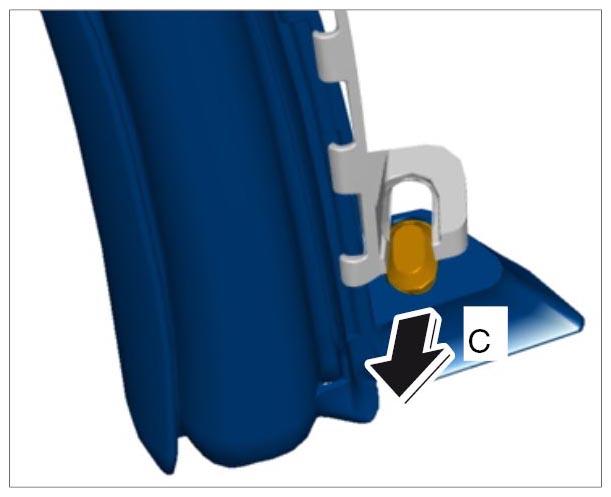

1. 4.1. Unhook locking lug.

  Fig 4: Removing Locking Lug
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

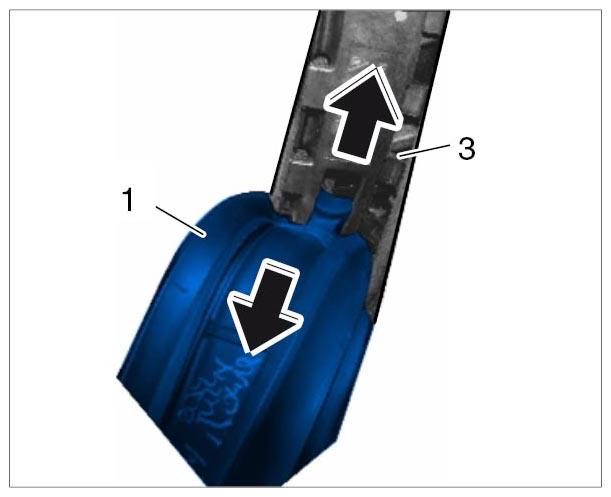

2. 4.2. Pull off seal at the retaining strip.

  Fig 5: Removing Seal
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
