Removing Tension Rope

WARNING: This page is about a different car, the 2016 Porsche Boxster, 2015 Porsche Boxster, 2014 Porsche Boxster, and 2013 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

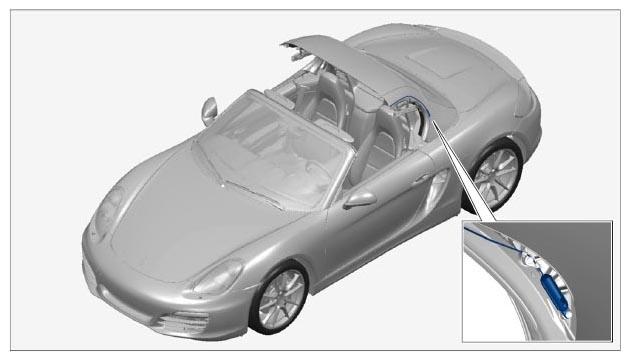

Fig 1: Identifying Tension Rope Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Detach convertible top covering at the B-pillar.
1. 1.1. Loosen retaining straps.
  1. 1.1.1. Unscrew fastening screws -1 and 3- .
  2. 1.1.2. Remove retaining straps -2 and 4- .

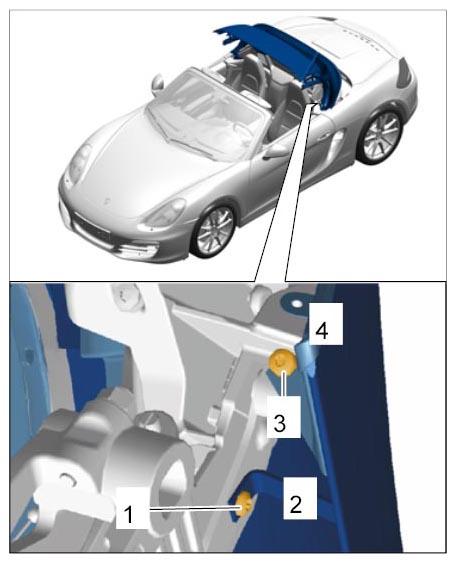

  Fig 2: Loosening Retaining Straps
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Drill out rivets -1- .

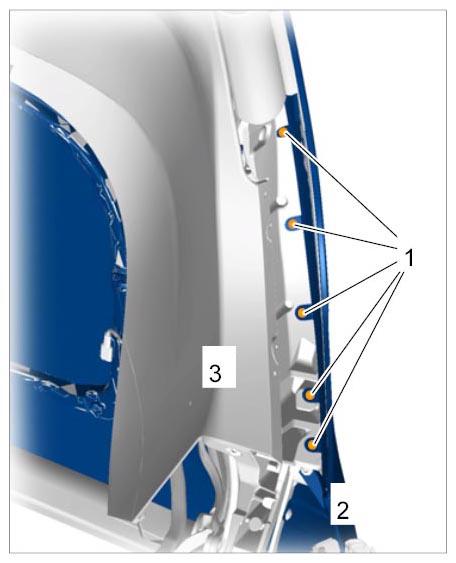

  Fig 3: Drilling Out Rivets
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 1.3. Unhook convertible top covering downwards.
Detach convertible top covering at the front.

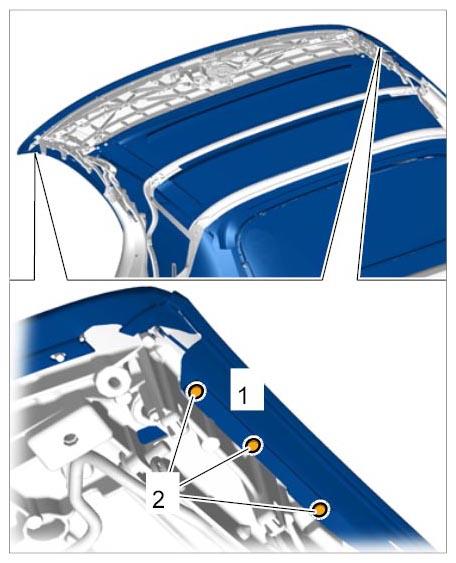

1. 2.1. Drill out rivets -2- on the outside of the convertible top covering -1- .

  Fig 4: Identifying Front Outer Rivets
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release tension rope.
1. 3.1. Press tension rope -7- upwards. -arrow A-
2. 3.2. Unhook tension rope -7- at the roof frame. -arrow B-
  Information

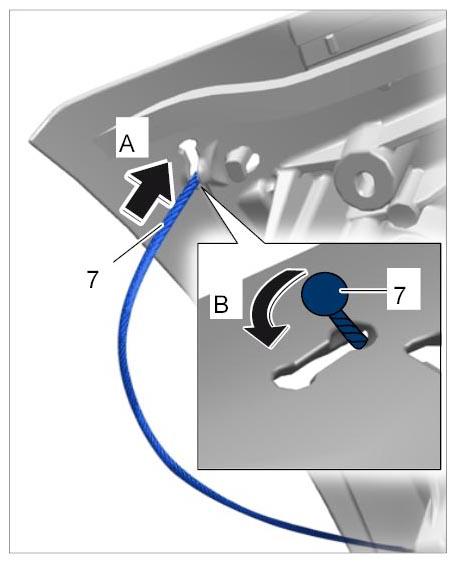

  Fig 5: Releasing Tension Rope
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  The tension rope can be pulled in during installation using the cord.
3. 3.3. Secure the cord -4- to the tension rope and pull it into the duct on the convertible top.

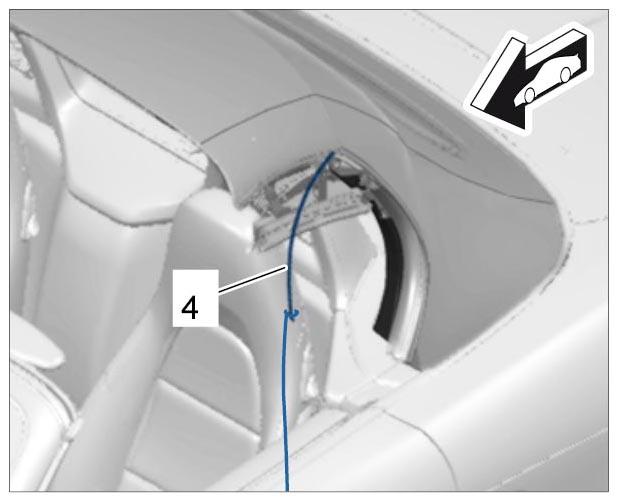

  Fig 6: Pulling Cord To Tension Rope
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 3.4. Pull tension rope -1- out of the duct on the convertible top.
5. 3.5. Release the cord -4- from the tension rope.
6. 3.6. Pull through tension rope -1- to main control arm. -arrows-

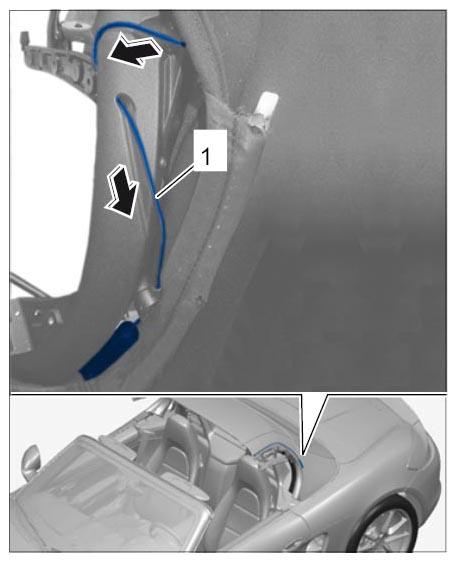

  Fig 7: Pulling Through Tension Rope
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove tensioning spring -1- with guide.
1. 4.1. Press convertible top covering -3- to one side.
2. 4.2. Drill out rivets -2- .
3. 4.3. Remove tensioning spring -1- and guide.

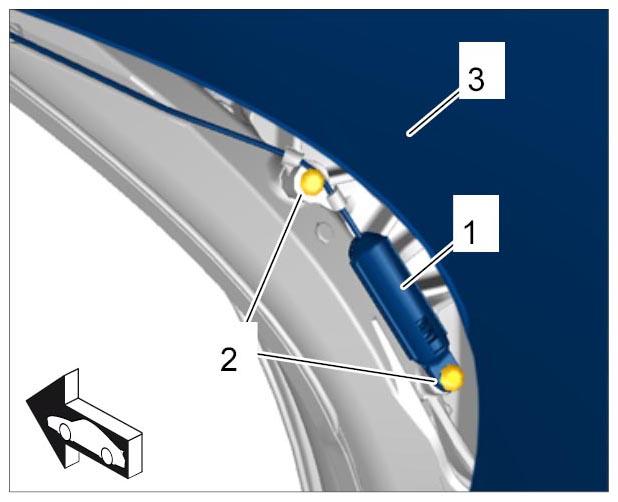

Fig 8: Removing Tensioning Spring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
