Removing Lower Part Of Valve

WARNING: This page is about a different car, the 2016 Porsche Boxster, 2015 Porsche Boxster, 2014 Porsche Boxster, and 2013 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unclip bowden cable sleeve -1-  from the guide.
    1. 1.1. Detach bowden cable.

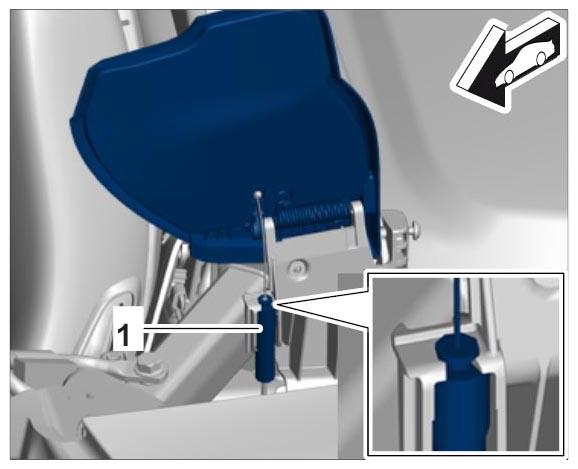

      Fig 1: Detaching Bowden Cable
      G10024446Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew the fastening screw -1-  for the lower part of valve -2-  .

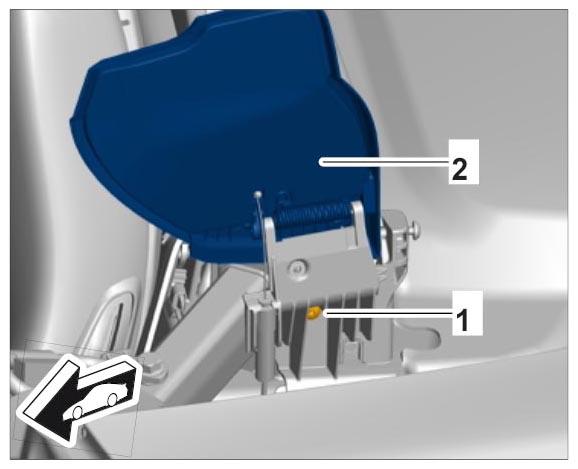

    Fig 2: Removing Lower Part Of Valve
    G10024447Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Pull lower part of valve up and out of the guide.
