Procedure For Cleaning The Convertible Top

WARNING: This page is about a different car, the 2016 Porsche Boxster, 2015 Porsche Boxster, 2014 Porsche Boxster, and 2013 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Maintain a minimum distance of 300 mm between the power washer spray jet and the convertible top. Do not direct the high-pressure blast directly onto the seals.

    Before using the Wash Shampoo, clean highly soiled areas using a power washer (starting at the cowl panel frame and moving towards the convertible-top compartment lid)

    Fig 1: Cleaning Soiled Convertible Top Covering With Power Washer
    G10024434Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Mixing the Wash Shampoo from the Tequipment care case, Cabriolet  : 1/2 cap (measuring cap) -A-  to 2 liters of water (i.e. 1 1/2 caps to 5 liters)

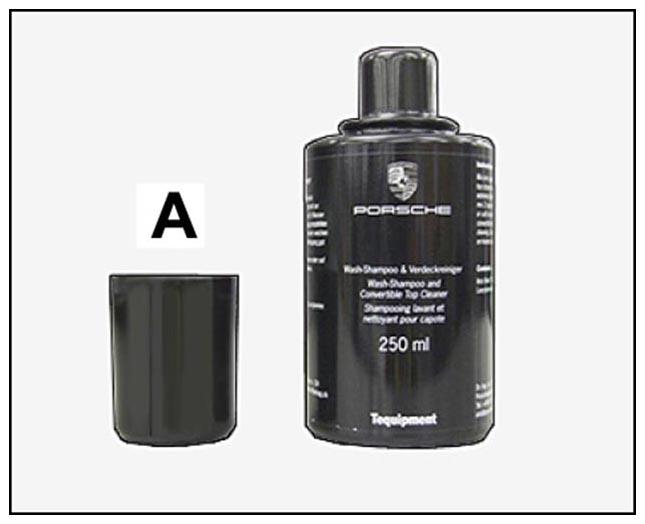

    Fig 2: Measuring Cap And Convertible-Top Care Product
    G10024435Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Use a brush with strong, non-scratch bristles. Rub the water/shampoo mixture into the convertible top fabric in circular movements while pressing slightly on the brush until a film of foam forms.

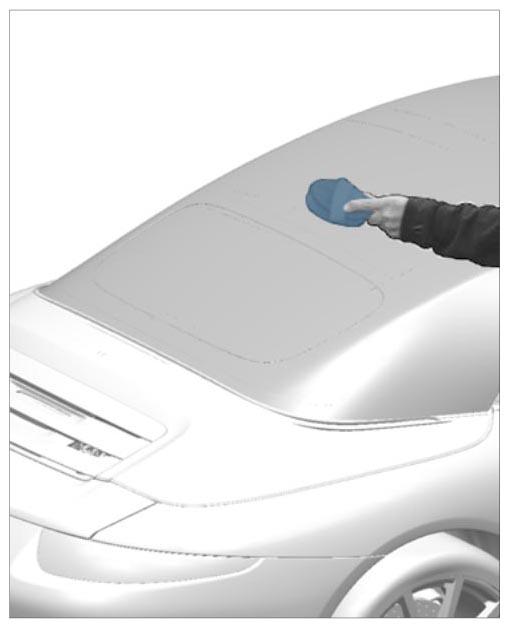

    Fig 3: Cleaning Cabriolet Convertible Top Covering With Brush
    G10024436Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Maintain a minimum distance of 300 mm between the power washer spray jet and the convertible top. Do not direct the high-pressure blast directly onto the seals.

    Do not let the Wash Shampoo dry in. Rinse the foam thoroughly off the convertible top, starting at the cowl panel frame and moving towards the convertible-top compartment lid.

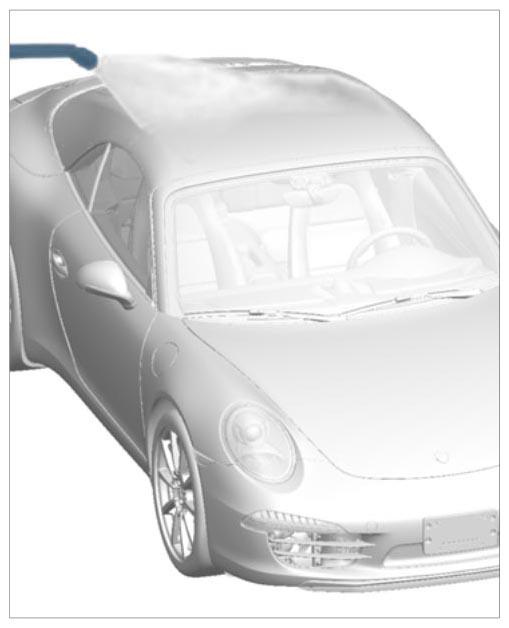

    Fig 4: Rinsing Convertible Top Covering With Power Washer
    G10024437Courtesy of PORSCHE CARS NORTH AMERICA, INC.
