Removing Tension Bow

WARNING: This page is about a different car, the 2016 Porsche Boxster, 2015 Porsche Boxster, 2014 Porsche Boxster, and 2013 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull off piping on convertible top covering -1-  at the tension bow -3-  .

    Start at the corner.

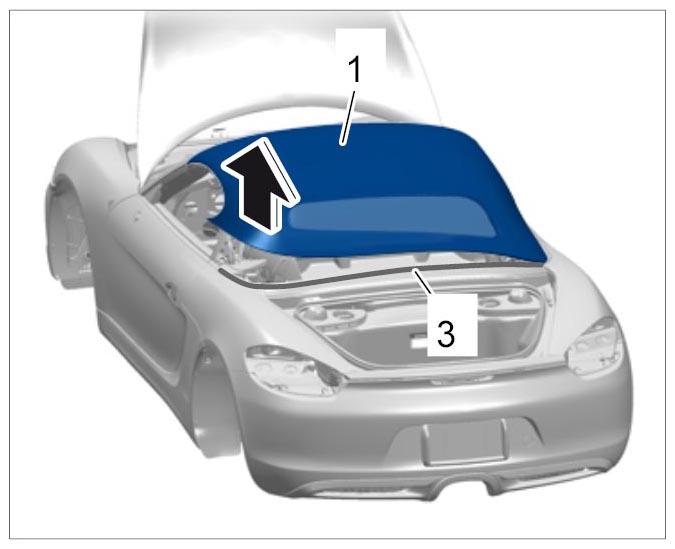

    Fig 1: Removing Tension Bow
    G10024430Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove tension bow.
