Align the convertible top covering -1-
with the marking -2-
so that it is centered with respect to the bore on the tension bow -3-
. -arrow-

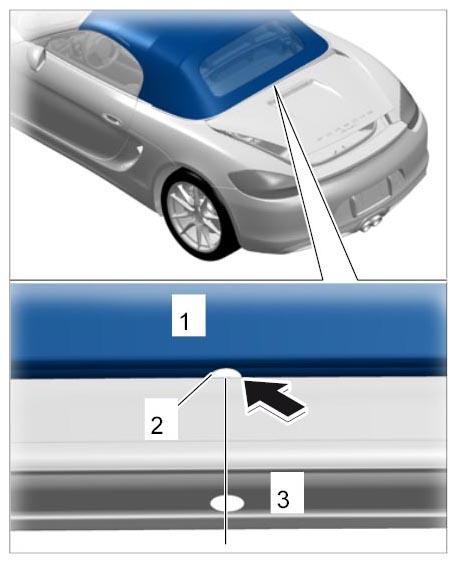

Fig 1: Positioning Convertible Top Covering
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press piping into the tension bow all the way around.
