Technical Values
WARNING: This page is about a different car, the 2016 Porsche Boxster, 2015 Porsche Boxster, 2014 Porsche Boxster, and 2013 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

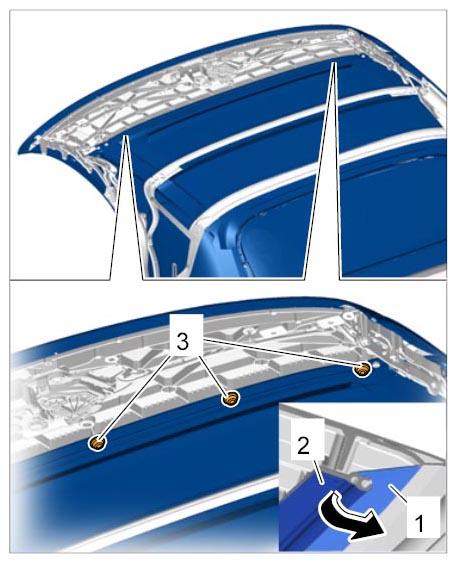

| Fastening screw for retaining strip on roof frame |
Item 3 |
Tightening torque |
6 Nm (4.5 ftlb.) |
|
|
Loosening retaining strip |

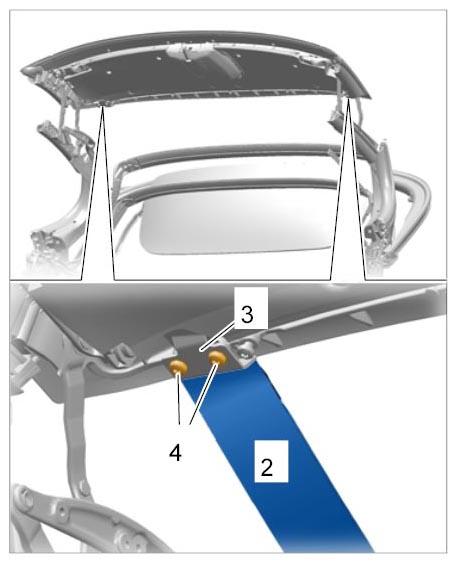

| Fastening screw for tensioning straps |
Item 4 |
Tightening torque |
9 Nm (6.5 ftlb.) |
|
|
Loosening tensioning straps |
