Installing Convertible Top Covering

WARNING: This page is about a different car, the 2016 Porsche Boxster, 2015 Porsche Boxster, 2014 Porsche Boxster, and 2013 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Secure convertible top covering at the front.
1. 1.1. Position convertible top covering -1- .
2. 1.2. Fit the corners. -arrows A-
3. 1.3. Centre convertible top covering at the front. → Aligning convertible top covering

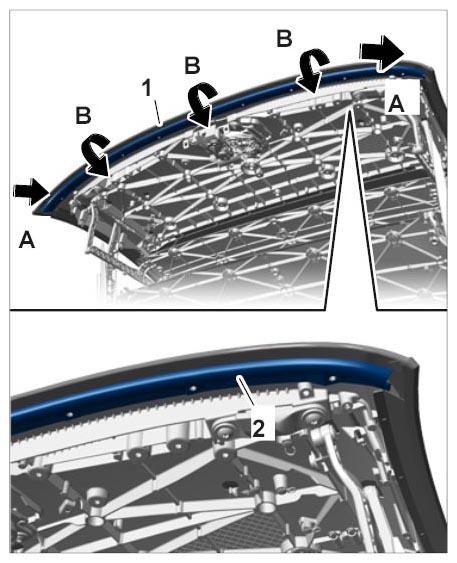

  Fig 1: Securing Convertible Top Covering
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

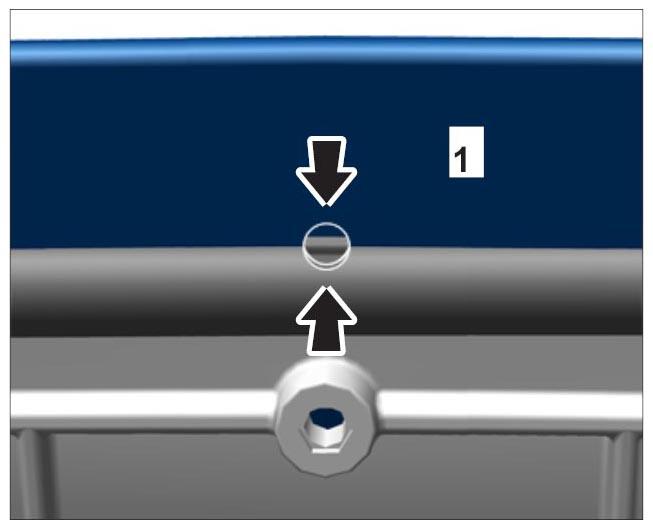

  Fig 2: Aligning Convertible Top Covering
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 1.4. Fold the convertible top material around the edge of the roof frame without wrinkles. -arrows B-
5. 1.5. Secure the front edge with double-sided adhesive tape -2- .
  Information

  Check that the fold placer cord -6- is routed correctly. -arrow-

  Further installation is performed in reverse order to removal.

  Tightening torque 6 Nm (4.5 ftlb.)

  Tightening torque 9 Nm (6.5 ftlb.)

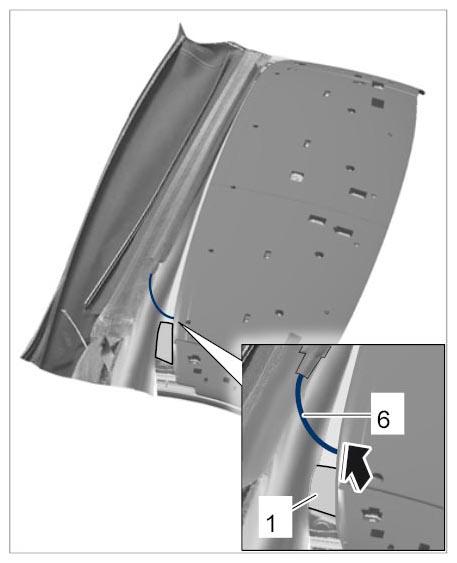

Fig 3: Locating Fold Placer Cord
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
