Removing Upper Lateral Seal

WARNING: This page is about a different car, the 2016 Porsche Boxster, 2015 Porsche Boxster, 2014 Porsche Boxster, and 2013 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

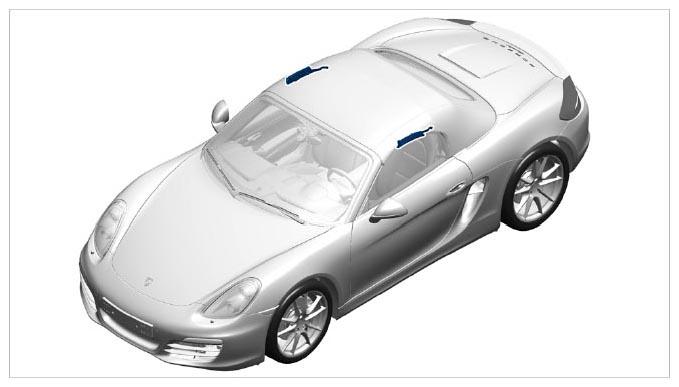

Fig 1: Identifying Upper Lateral Seal

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unhook seal from the guide.
1. 1.1. Unhook seal at the front. -arrow A-
2. 1.2. Unhook seal at the rear. -arrow B-
3. 1.3. Unhook seal at the bottom. -arrow C-
4. 1.4. Remove seal. -arrow D-

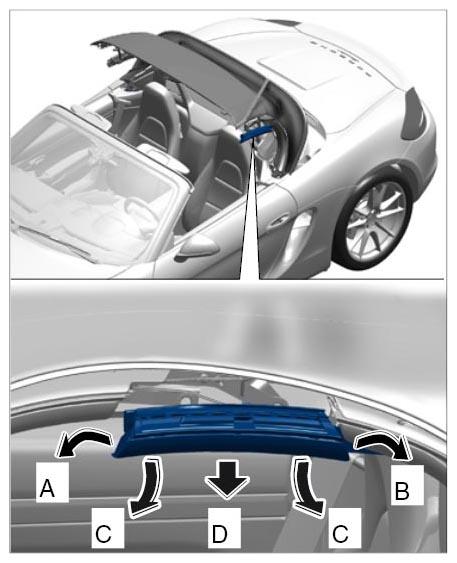

Fig 2: Removing Seal From Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove seal.
