Installing Upper Lateral Seal

WARNING: This page is about a different car, the 2016 Porsche Boxster, 2015 Porsche Boxster, 2014 Porsche Boxster, and 2013 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install seal.
    1. 1.1. Fit rear seal on the retaining strip. -arrow A
    2. 1.2. Guide seal into the clip. -arrow B-

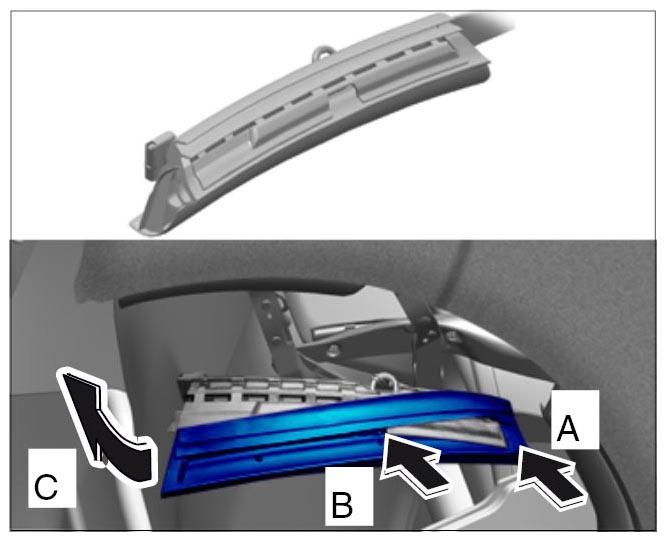

      3. Fig 1: Installing Rear Seal On Retaining Strip
      G10024410Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    3. 1.3. Engage seal completely.
      1. 1.3.1. Engage seal completely at the clip -arrow A-
      2. 1.3.2. Engage seal completely at the lower edge. -arrow B-
      3. 1.3.3. Engage seal completely in the center duct. -arrow C-
      4. 1.3.4. Engage seal completely in the upper duct. -arrow D-

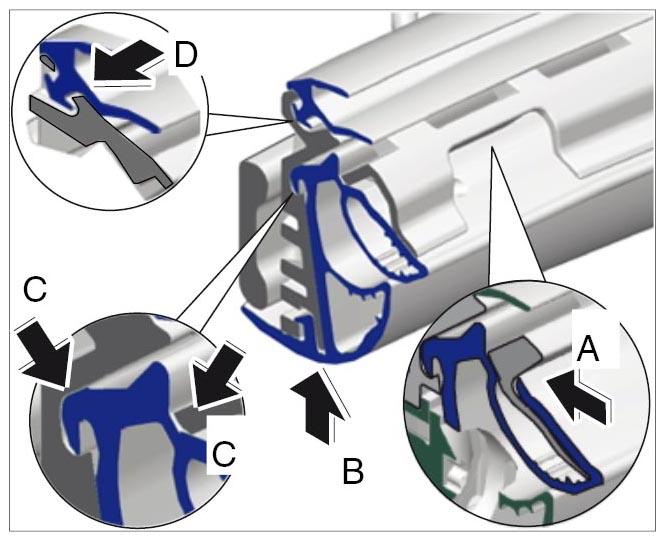

      Fig 2: Engaging Seal
      G10024411Courtesy of PORSCHE CARS NORTH AMERICA, INC.
