Technical Values
WARNING: This page is about a different car, the 2016 Porsche Boxster, 2015 Porsche Boxster, 2014 Porsche Boxster, and 2013 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

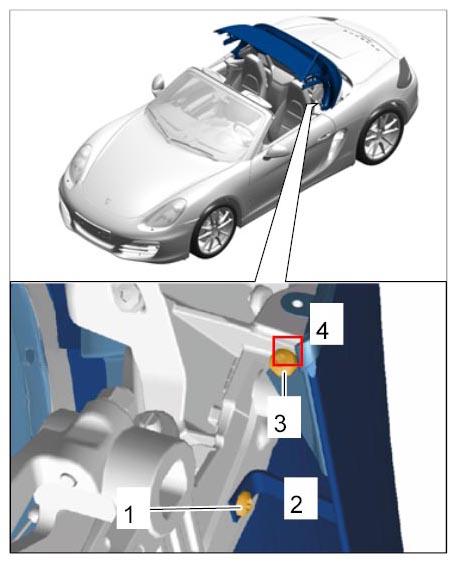

| Fastening screw for retaining strap (lower B-pillar) | Item 1 | Tightening torque | 1.8 Nm (1.5 ftlb.) | ||
|
Screwing off retaining strap at the sides |
|||||
| Fastening screw for retaining strap (upper B-pillar) | Item 3 | Tightening torque | 3.5 Nm (2.5 ftlb.) | ||
|
Screwing off retaining strap at the sides |
|||||

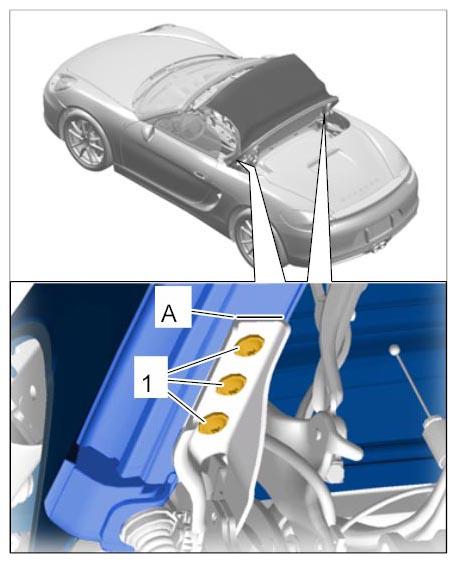

| Fastening screws for tension bow | Tightening torque | 9 Nm (6.5 ftlb.) | +/-1 Nm (+/-0.5 ftlb.) | ||
|
Loosening tension bow |
|||||
