Detaching Convertible Top Covering At The Rear

WARNING: This page is about a different car, the 2016 Porsche Boxster, 2015 Porsche Boxster, 2014 Porsche Boxster, and 2013 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle .
Naturally, some steps also have to be performed on the opposite side of the vehicle as well .

Information

The convertible top must be moved to various positions in order to gain the best possible access to the fitting areas shown below.

Information

Risk of damage

Mask the edges of the wing with adhesive tape -1- .

Carefully pull the roof strut out of the hood compartment with the help of another person.

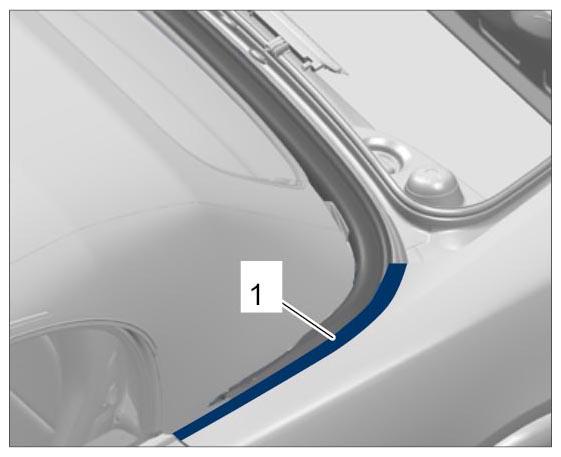

Fig 1: Identifying Mask Edges Of Wing With Adhesive Tape

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Detach convertible top covering at the B-pillar.
1. 1.1. Pull the roofliner -3- aside -arrow- and drill out rivets -1- on the inner retaining strap -2- .

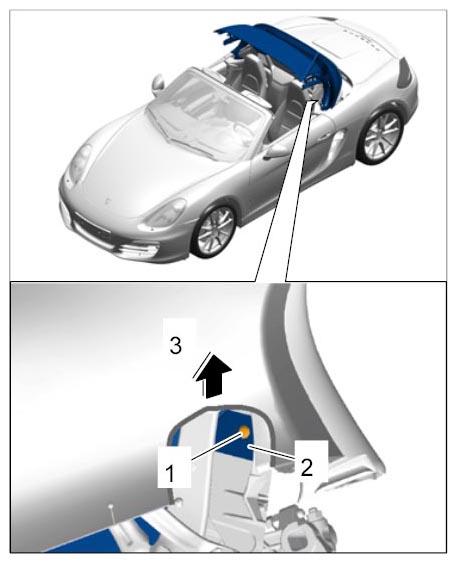

  Fig 2: Drilling Out Rivets On Inner Retaining Strap
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Loosen retaining straps.

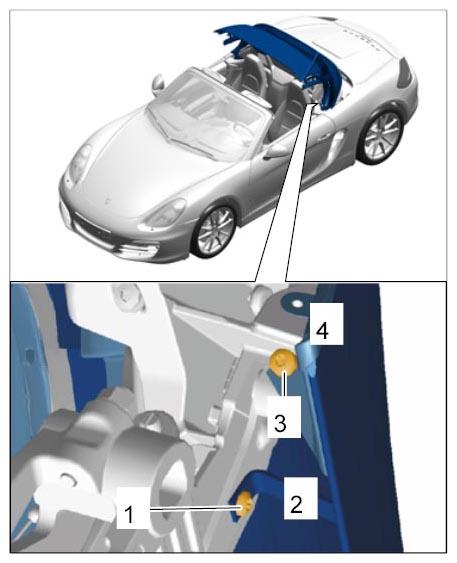

  Fig 3: Loosening Retaining Straps
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. 1.2.1. Unscrew fastening screws -1 and 3- .
  2. 1.2.2. Remove retaining straps -2 and 4- .
3. 1.3. Drill out rivets -1- .

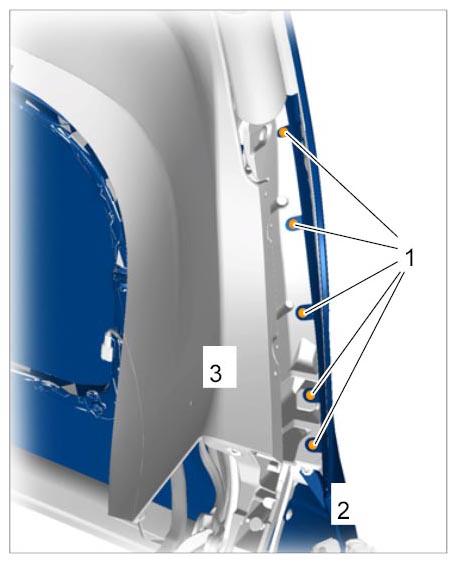

  Fig 4: Drilling Out Rivets
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull off water drain hose -1- . -arrow-

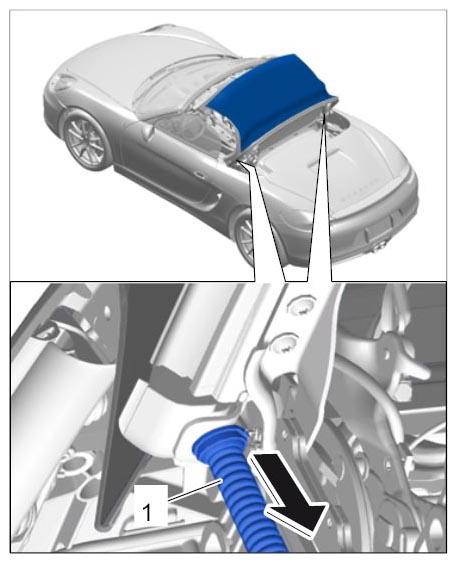

Fig 5: Pulling Water Drain Hose
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect rear window heating.
Loosen control arm on rear window.

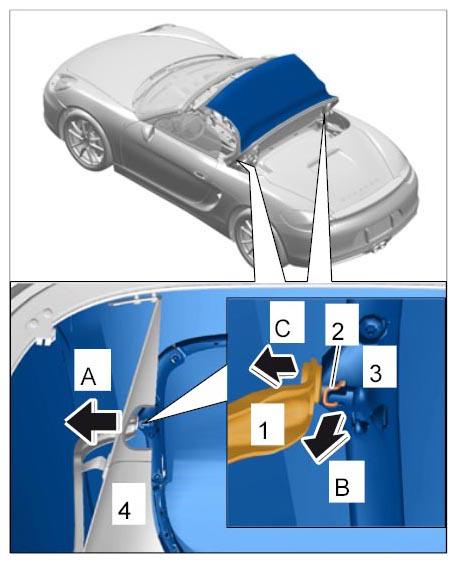

1. 4.1. Pull the roofliner -4- aside. -arrow A-
2. 4.2. Pull off safety clips -2- . -arrow B-
3. 4.3. Pull off control arm -1- . -arrow C-
Mark installation position of tension bow.
1. 5.1. Draw a line -A- at the transition point between the bearing and tension bow.
Loosen the tension bow.
1. 6.1. Unscrew fastening screws -1- .

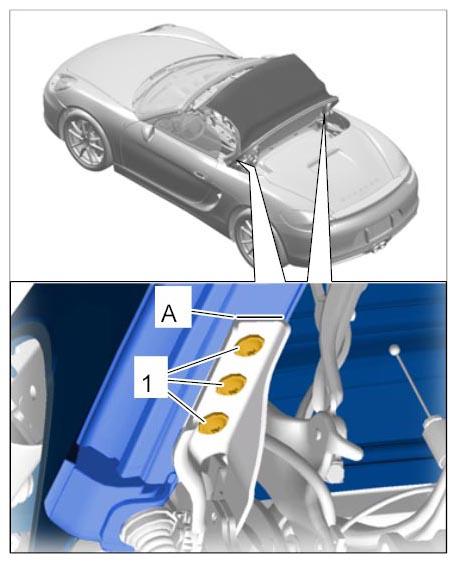

  Fig 7: Loosening Tension Bow
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 6.2. Lift the tension bow up out of the hood compartment and remove it. -arrow-

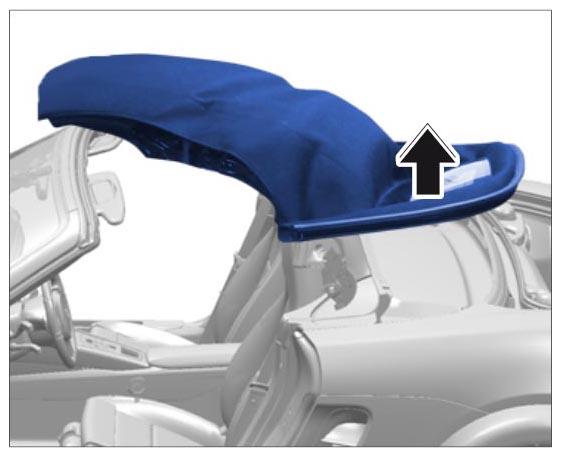

  Fig 8: Removing Roof Strut
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
