Installing Rear Seal

WARNING: This page is about a different car, the 2016 Porsche Boxster, 2015 Porsche Boxster, 2014 Porsche Boxster, and 2013 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

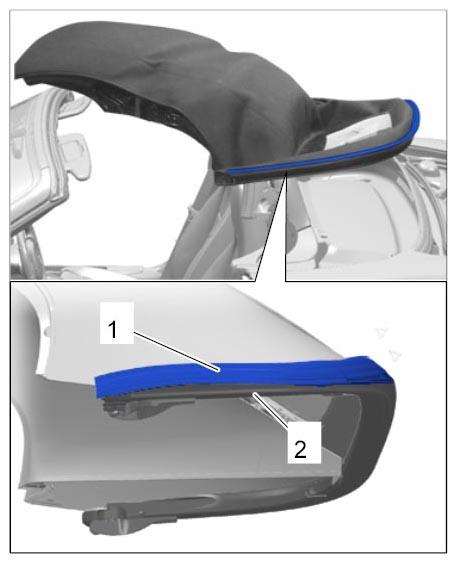

Fit seal -1- over the tension bow -2- .

Fig 1: Identifying Rear Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

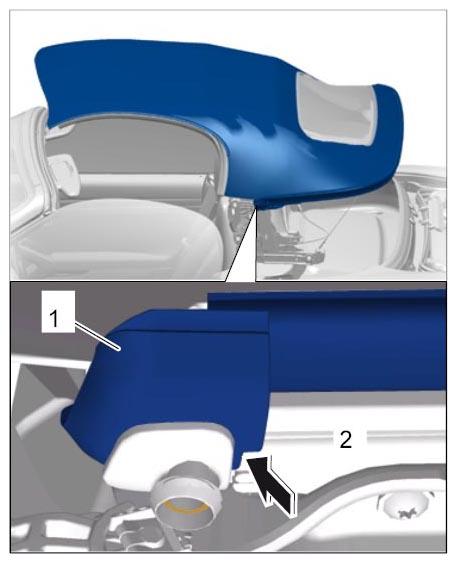

Fit seal -1- flush with the tension bow -2- . -arrow-

Fig 2: Fitting Seal With Tension Bow
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

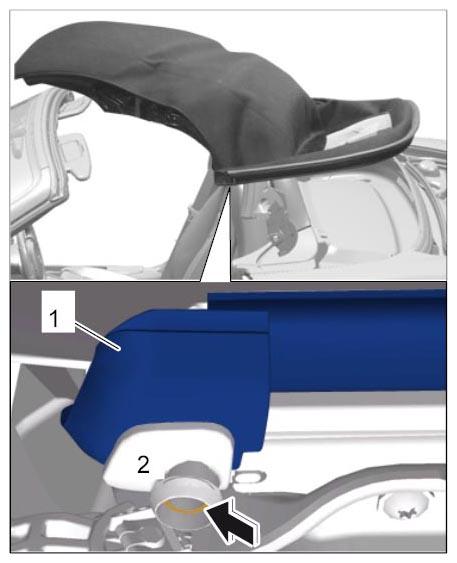

Engage water drain -arrow- correctly on the holder -2- .

Fig 3: Engaging Water Drain
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

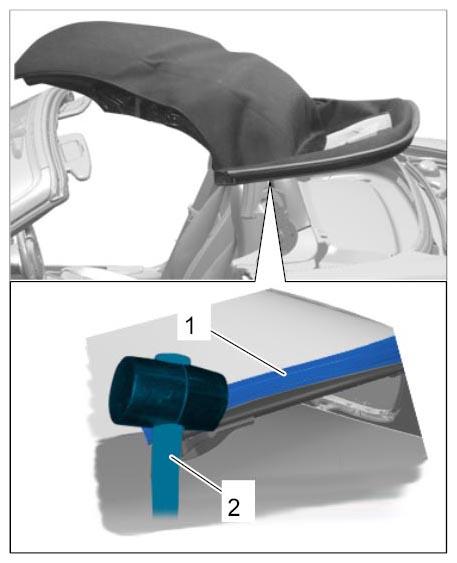

Tap seal -1- on all the way around using a rubber hammer -2- .

Fig 4: Tapping Seal Using Rubber Hammer
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Align tension bow.

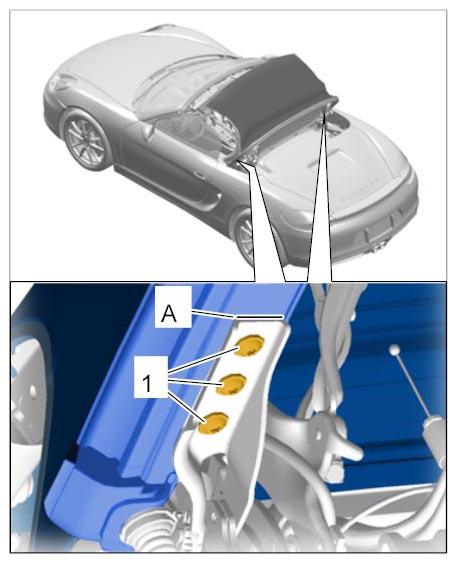

1. 5.1. Align tension bow according to the marking -A- .

  Fig 5: Loosening Tension Bow
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Further installation is performed in reverse order to removal.

  Tightening torque 1.8 Nm (1.5 ftlb.)

  Tightening torque 3.5 Nm (2.5 ftlb.)

  Tightening torque 9 Nm (6.5 ftlb.) +/-1 Nm (+/-0.5 ftlb.)
