Removing Seal For Cowl Panel Frame

WARNING: This page is about a different car, the 2016 Porsche Boxster, 2015 Porsche Boxster, 2014 Porsche Boxster, and 2013 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

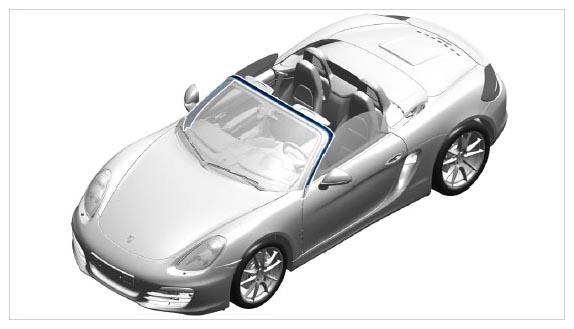

Fig 1: Identifying Cowl Panel Frame Seal Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew fastening screw between the sealing lip.

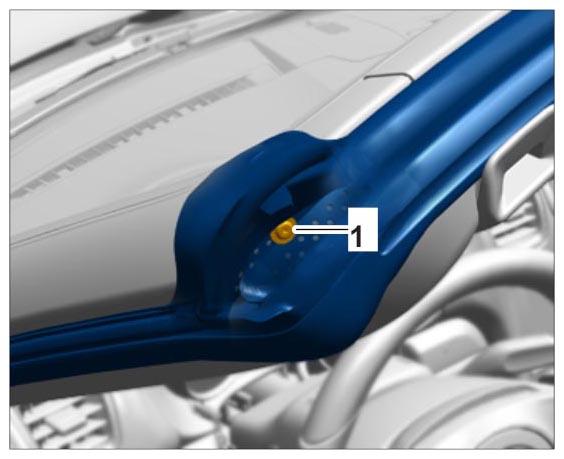

Fig 2: Identifying Cowl Panel Frame Seal Mounting Point
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Separate bonded joint -1- in the A-pillar area.

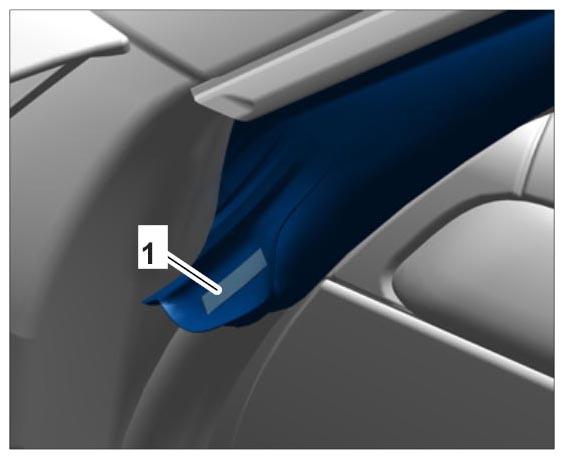

Fig 3: Separating Bonded Joint
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Check bonded joint and replace adhesive strips if necessary.
Pull off seal -1- all the way around.

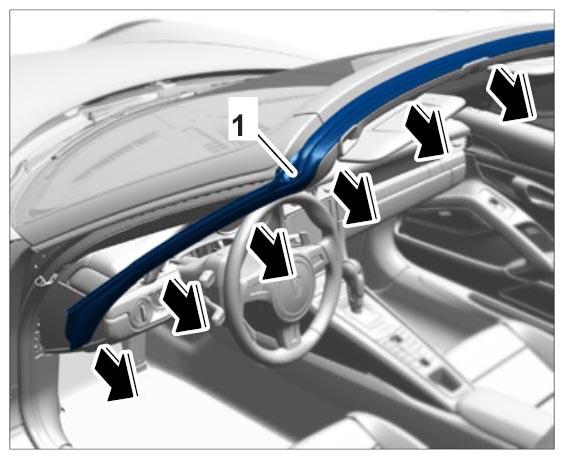

Fig 4: Removing Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
