Removing Convertible Top Lock

WARNING: This page is about a different car, the 2016 Porsche Boxster, 2015 Porsche Boxster, 2014 Porsche Boxster, and 2013 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

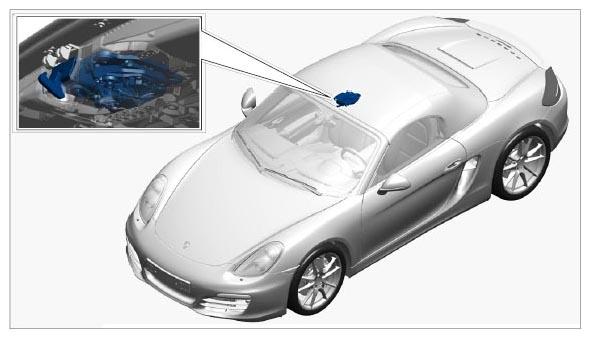

Fig 1: Identifying Convertible Top Lock Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnect line at the convertible top lock.
1. 1.1. Release plug connection -2- (-arrow A- ) and pull it off -arrow B- .
  Information

  Mark installation position on the roof frame with a marker before removal. -1-

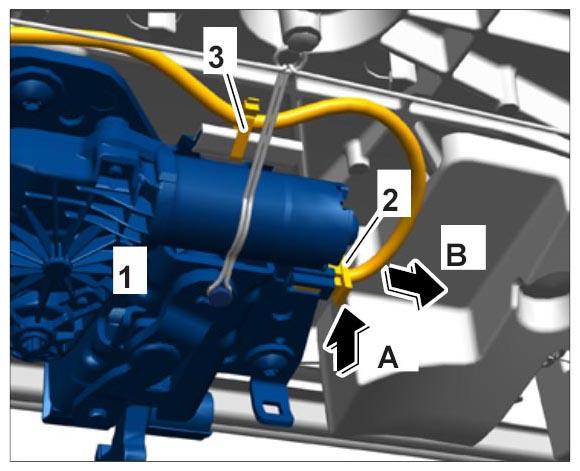

  Fig 2: Disconnecting Lines On Convertible Top Lock (Shown On 991)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  - New roof frames have a bore for aligning the lock . -arrow A

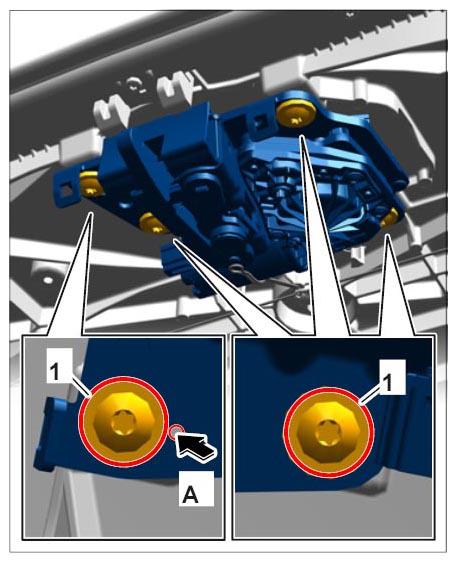

    Fig 3: Locating Mark Installation Position On Roof Frame
    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

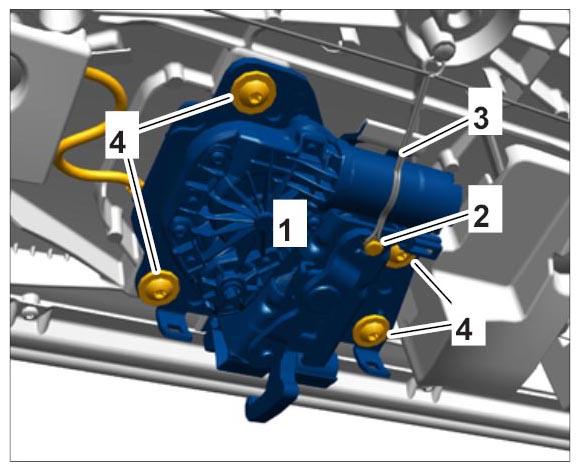

Loosen convertible top lock.
1. 2.1. Unscrew fastening screws -4- .
2. 2.2. Carefully remove convertible top lock -1- .
3. 2.3. Disconnect plug connection -2- on the back of the convertible top lock -1- .
  1. 2.3.1. Release plug connection -2- (-arrow A- ) and pull it off -arrow B- .

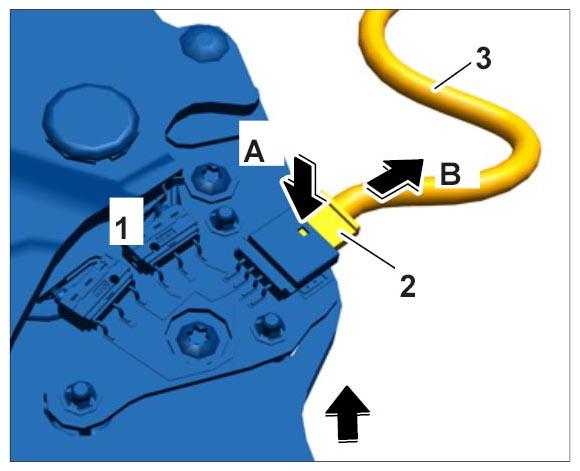

    Fig 5: Disconnecting Plug Connection
    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
