Removing Water Drip Pan

WARNING: This page is about a different car, the 2016 Porsche Boxster, 2015 Porsche Boxster, 2014 Porsche Boxster, and 2013 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

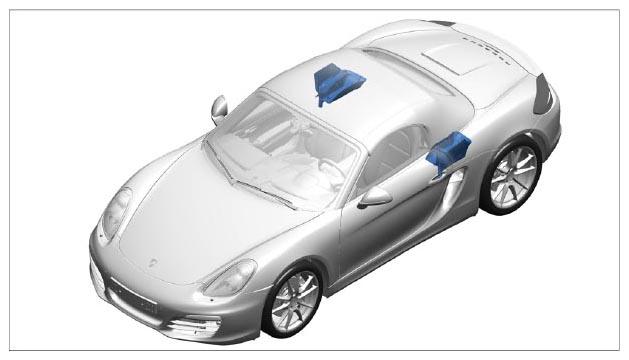

Fig 1: Identifying Water Drip Pan Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Release and remove valve for drain hose -1- .

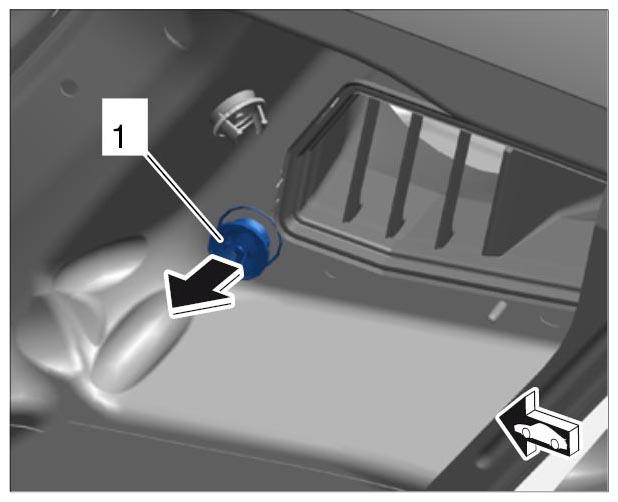

Fig 2: Removing Drain Hose Valve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Slide the drain hose inwards.
Guide water drip pan -1- out of the guide pins -2- and remove it by pulling it up.

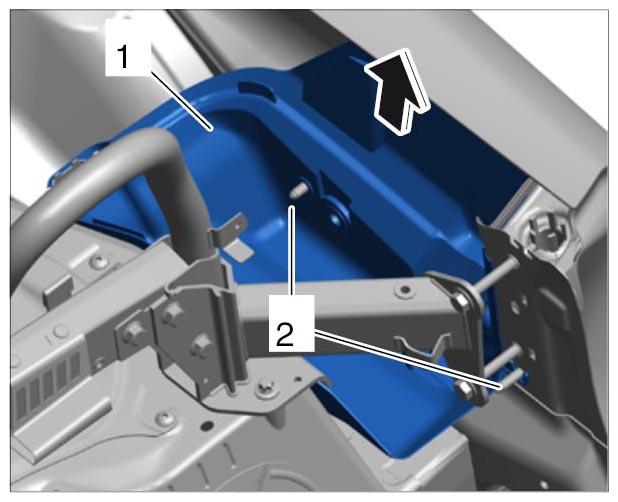

Fig 3: Removing Water Drip Pan
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
