Removing Roofliner

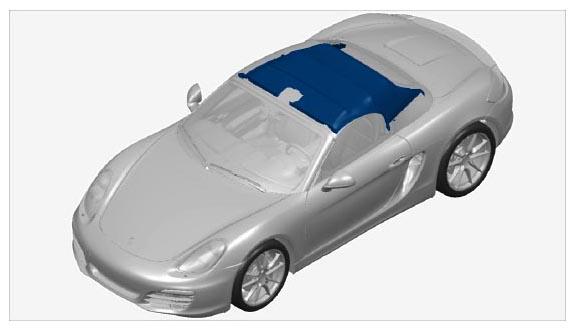

Fig 1: Identifying Roofliner Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• Some of the repair illustrations show only one side of the vehicle  .
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well  .

1. Loosen rear fastening points.
   1. 1.1. Unscrew screw -2-  .
   2. 1.2. Remove expansion rivets -3-  on the tension bow -4-  .

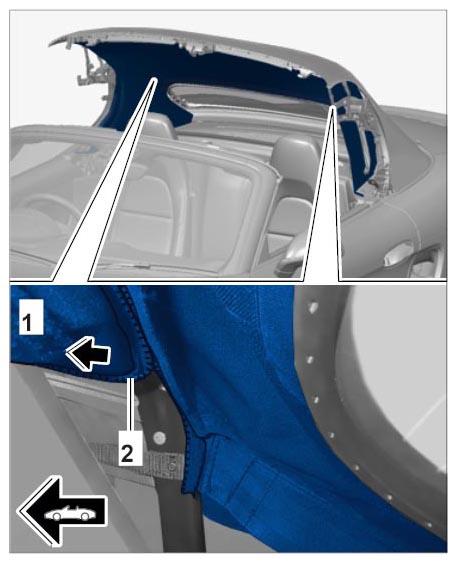

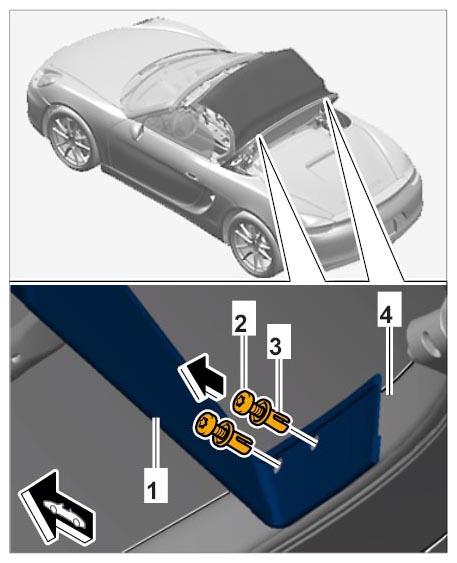

   Fig 2: Loosening Rear Fastening Points
   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   3. 1.3. Release wire harness.
      1. 1.3.1. Disengage cable clip -2-  .
      2. 1.3.2. Remove retaining strap -3-  on the control arm -4-  .

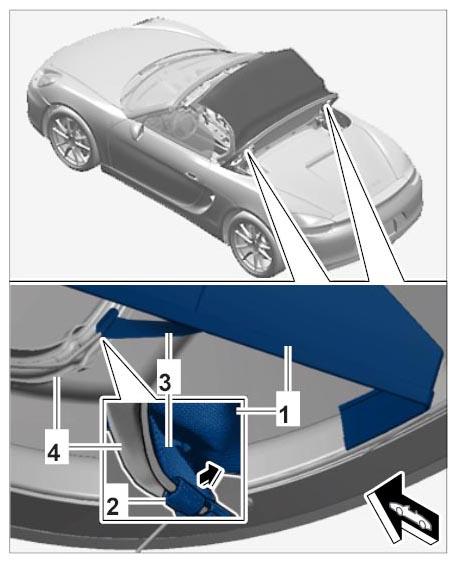

      Fig 3: Releasing Wire Harness

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

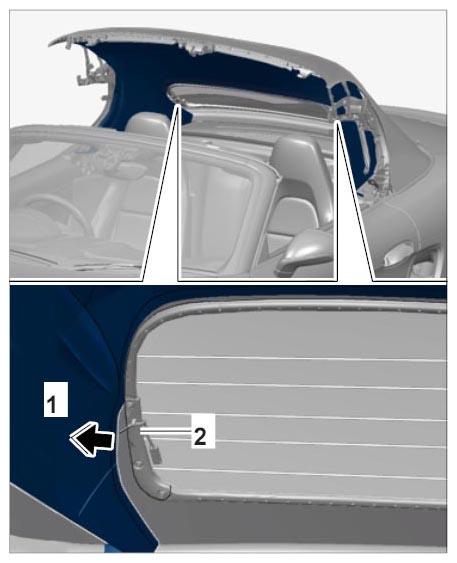

   4. 1.4. Loosen Velcro connections -1-  on the rear window frame -2-  . -arrow-

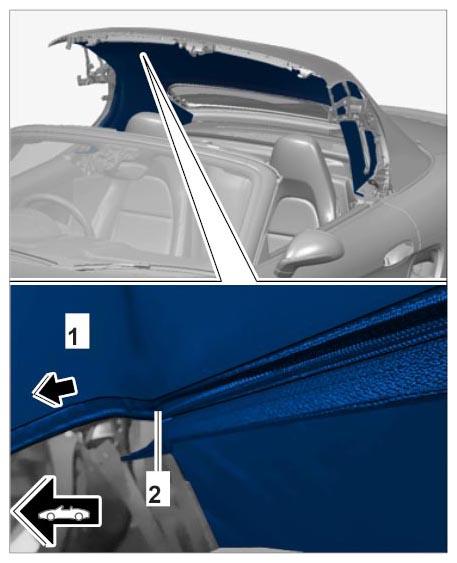

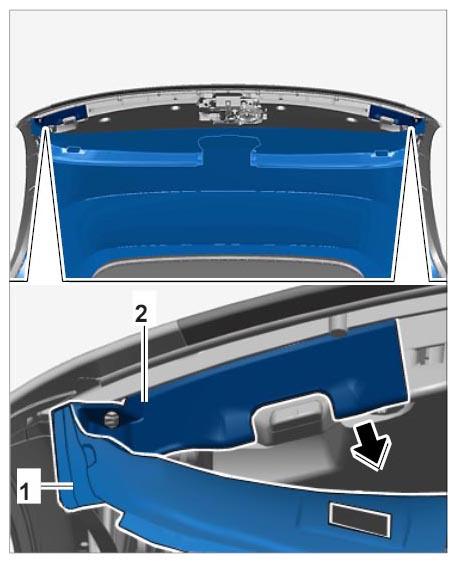

      Fig 4: Loosening Velcro Connections On Rear Window Frame

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   5. 1.5. Pull off strip -2-  on the roofliner.

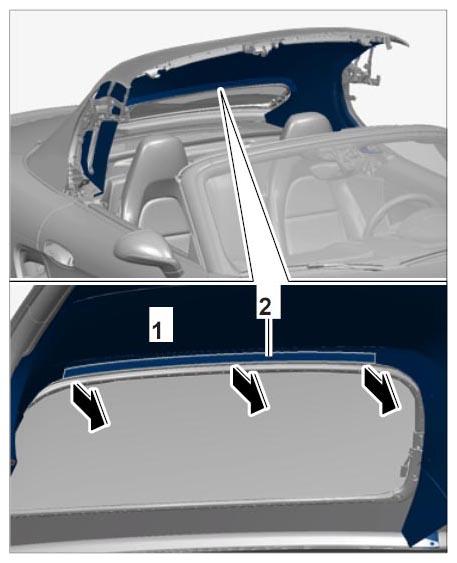

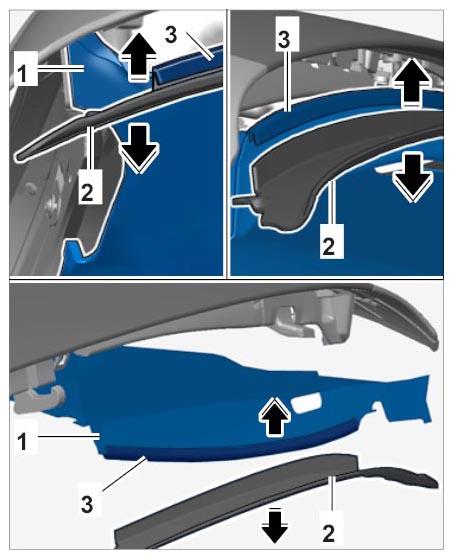

      Fig 5: Pulling Strip On Roofliner

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   6. 1.6. Release zip -2-  in the corner bow area.

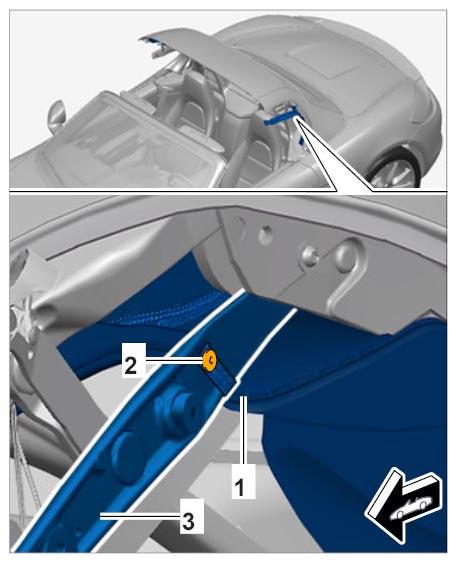

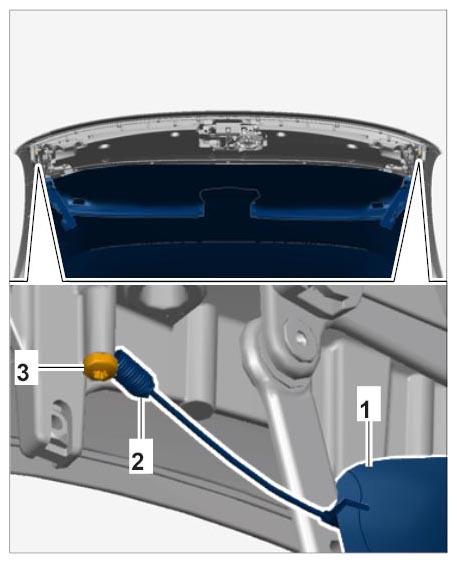

      Fig 6: Releasing Corner Bow Zip

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   7. 1.7. Release zip -2-  in the main folding top bow area.

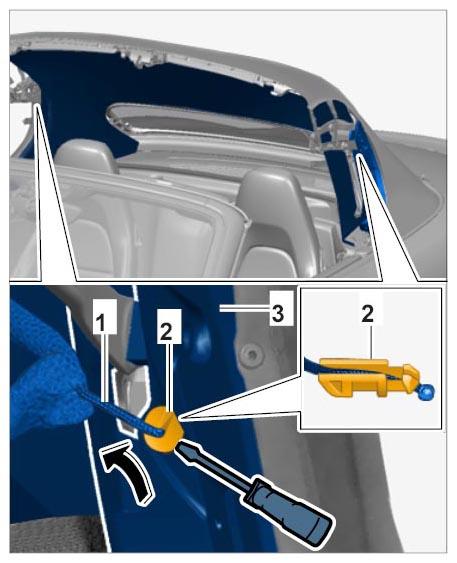

      Fig 7: Releasing Main Folding Top Bow Zip

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Loosen fastening points at the side.
   1. 2.1. Pull the roofliner -3-  aside -arrow-  and drill out rivet -1-  on the inner retaining strap -2-  .

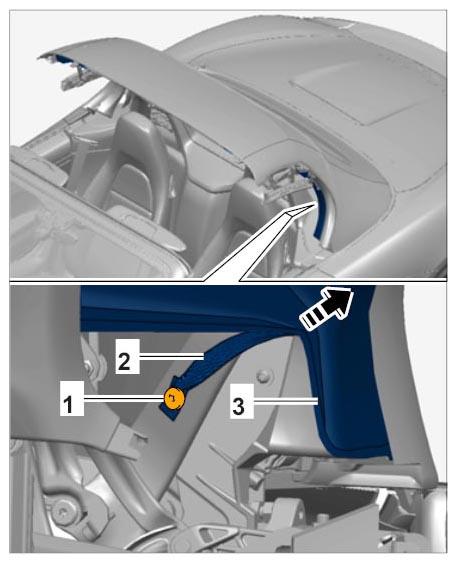

      Fig 8: Loosening Retaining Strap

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 2.2. Drill out rivet -2-  on the control arm -3-  .
      Fig 9: Drilling Out Rivet On Control Arm

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   3. 2.3. Drill out rivets -2-  on the main control arm -3-  .
   4. 2.4. Unscrew fastening screw -4-  .

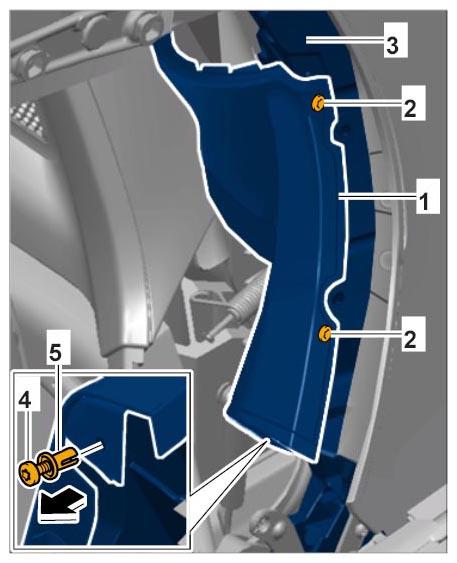

   Fig 10: Drilling Out Rivets On Main Control Arm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Release tension rope.

   Information

   Do not pull on the rope. This wedges the molded piece.

   1. 3.1. Lever the molded piece -2-  off the control arm -3-  using a small screwdriver.
      Fig 11: Releasing Tension Rope

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

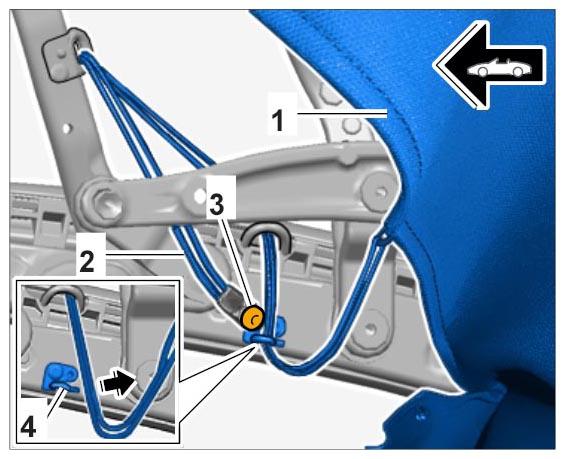

   2. 3.2. Disengage tension rope -2-  at the eye -4-  .
   3. 3.3. Drill out rivet -3-  .
      1. 3.3.1. Remove tension rope -2-  and eye -4-  .
      Fig 12: Disengaging Tension Rope On Control Arm

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

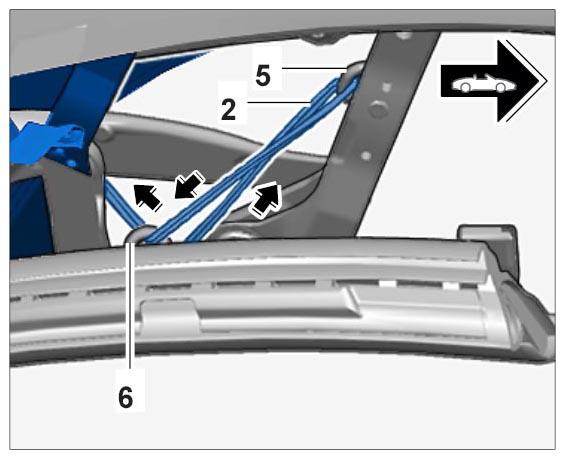

   4. 3.4. Pull tension rope -2-  through the eyes -5 and 6-  and remove it.
      Fig 13: Removing Tension Rope

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

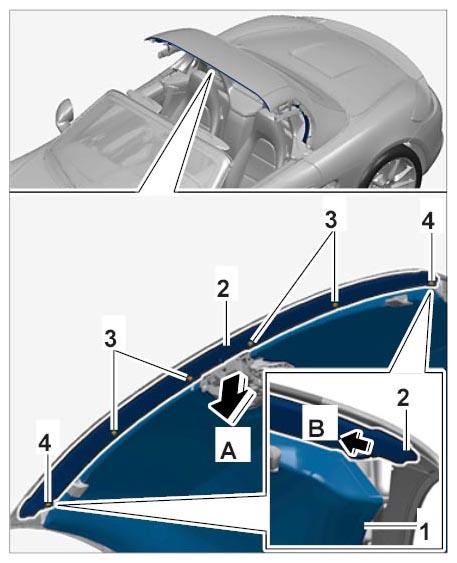

4. Loosen fastening points at the front.
   1. 4.1. Loosen cover strip.
      1. 4.1.1. Unscrew fastening screws -3 and 4-  .
      2. 4.1.2. Pull cover strip -2-  in the middle downwards. -arrow A-
      3. 4.1.3. Pull cover strip -2-  at the corners inwards out of the rubber. -arrow B-
      4. 4.1.4. Remove cover strip -2-  together with the roofliner.
      Fig 14: Loosening Cover Strip
      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 4.2. Pull off piping -3-  on the cover strip -2-  .
      Fig 15: Pulling Piping On Cover Strip

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   3. 4.3. Remove trim -2-  .
      Fig 16: Removing Trim

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   4. 4.4. Release tension rope.
      1. 4.4.1. Unscrew fastening screw -3-  .
      2. 4.4.2. Remove tension rope with spring -2-  .
      Fig 17: Releasing Tension Rope

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

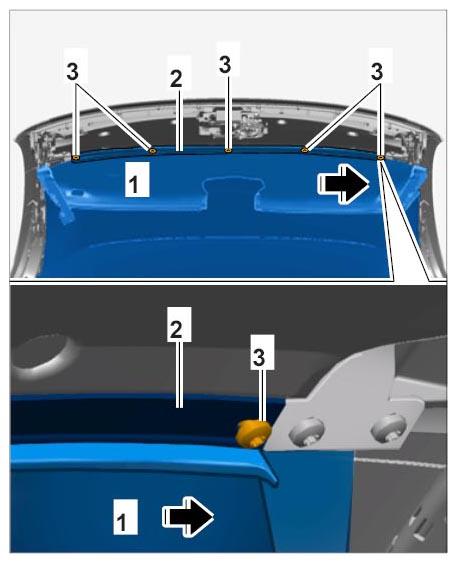

5. Loosen fastening points in the middle.
   1. 5.1. Loosen fastening screw at the right -3-  .
   2. 5.2. Pull piping -2-  with roofliner -1-  to the right and out.
   Fig 18: Loosening Fastening Points In Middle

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Remove roofliner.
