Installing Roofliner

WARNING: This page is about a different car, the 2016 Porsche Boxster, 2015 Porsche Boxster, 2014 Porsche Boxster, and 2013 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Installation is performed in reverse order to removal.

Secure tension rope.
1. 1.1. Insert tension rope -1- into the molded piece -2- . The ball must be outside of the molded piece.
2. 1.2. Carefully guide the molded piece -2- with the tension rope into the control arm.
3. 1.3. Clip the molded piece into the control arm. -arrow A-
4. 1.4. Clip the ball into the molded piece by pulling on the tension rope -1- . -arrow B-
  Tightening torque 2.8 Nm (2 ftlb.)

  Tightening torque 6.0 Nm (4.5 ftlb.)

  Tightening torque 3.5 Nm (2.5 ftlb.)

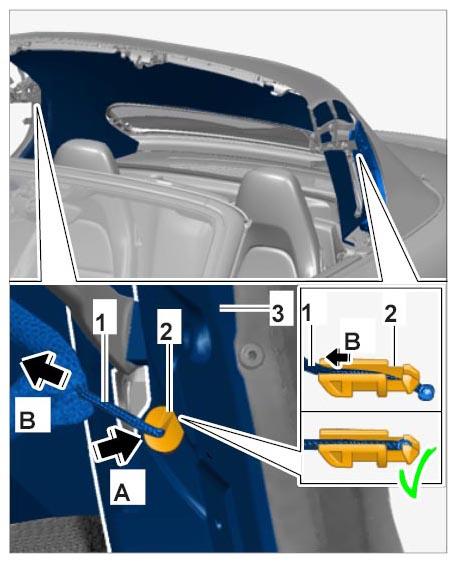

Fig 1: Securing Tension Rope
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
