Removing Front Lock

WARNING: This page is about a different car, the 2016 Porsche Boxster, 2015 Porsche Boxster, 2014 Porsche Boxster, and 2013 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

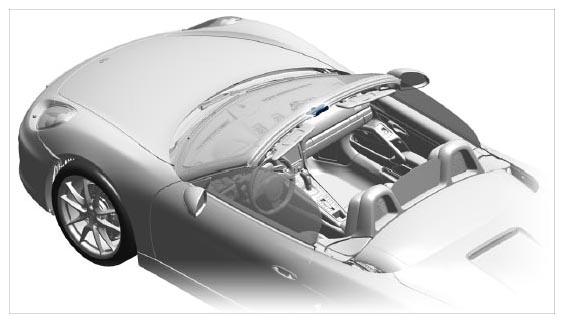

Fig 1: Identifying Front Lock Position

G10024346

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew fastening screws.

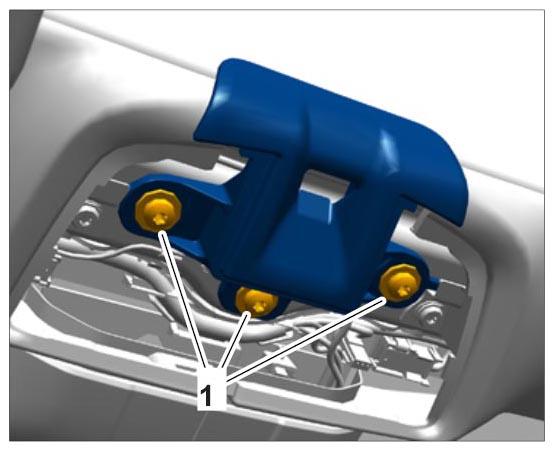

Fig 2: Removing Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Remove the lock in a downward direction.
Disconnect plug connection for lock.

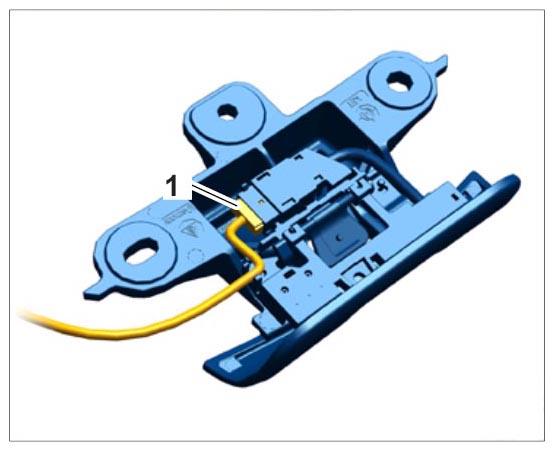

Fig 3: Disconnecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
