Moving Convertible Top To Service Position

WARNING: This page is about a different car, the 2016 Porsche Boxster, 2015 Porsche Boxster, 2014 Porsche Boxster, and 2013 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Information

The rear convertible top brace must be placed in the "service position" in order to grant sufficient access to the engine compartment.

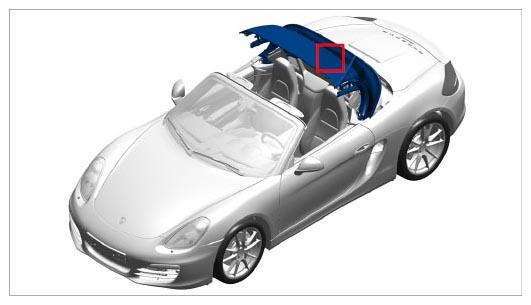

Fig 1: Identifying Convertible Top Service Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove left and right wind deflector inserts from the roll-over bar.

Fig 2: Identifying Hood Service Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Open the convertible top until dimension A (approx. 100 mm) is achieved between the windscreen frame and the front convertible top bow.

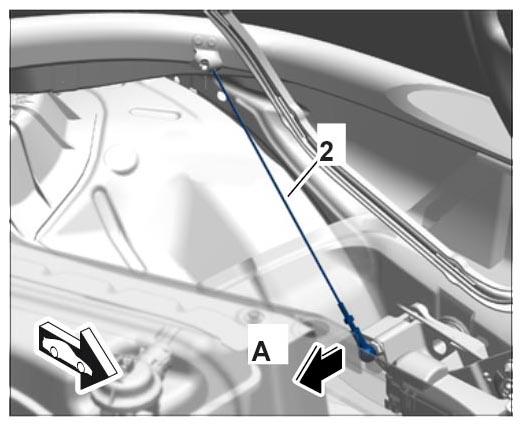

Reach through the opening in the roll-over bar and unclip the tension ropes -2- from the guides on both sides -A- .

Fig 3: Detaching Tension Ropes
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

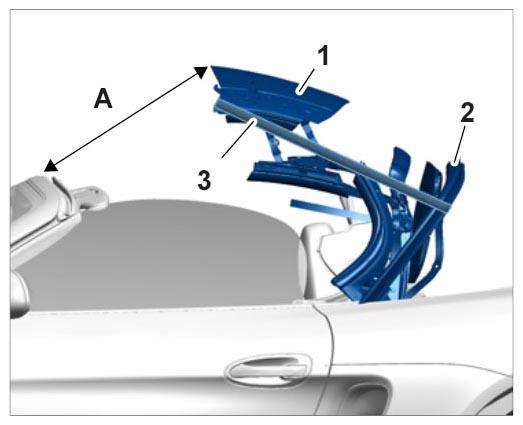

Open the convertible top until dimension A (approx. 470 mm) is achieved between the windscreen frame and the front roof frame -1- .
With the rear lid open, grab the rear tension bow -2- from the outside and pull upwards.
Loosen retaining strap -1- from the mounting -A- on the rear tension bow -2- .

Fig 4: Identifying Hood Service Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

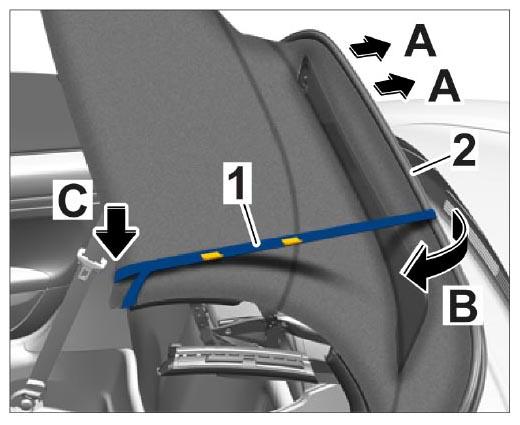

Pull retaining strap -1- over the convertible top covering to the left convertible-top tip -arrow B- and attach -C- .

Fig 5: Loosening Retaining Strap

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
