Ending Convertible-Top Service Position

WARNING: This page is about a different car, the 2016 Porsche Boxster, 2015 Porsche Boxster, 2014 Porsche Boxster, and 2013 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

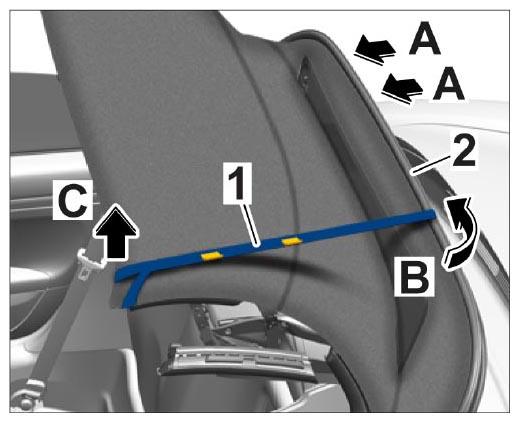

Disengage retaining strap -1- (-C- ) and clip into the catches on the tension bow -2- (-A- ).

Fig 1: Disengaging Retaining Strap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fold tension bow -2- back out of the service position and into its original position.

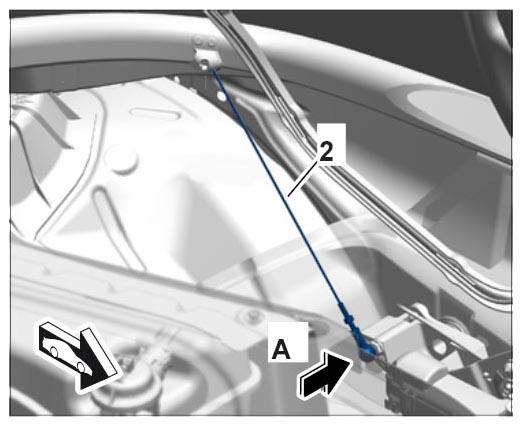

Reach through the opening in the roll-over bar and clip the tension ropes -2- into the guides on both sides -A- .

Fig 2: Engaging Tension Ropes
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close convertible top and install wind deflector inserts.
