Removing Convertible Top

WARNING: This page is about a different car, the 2016 Porsche Boxster, 2015 Porsche Boxster, 2014 Porsche Boxster, and 2013 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

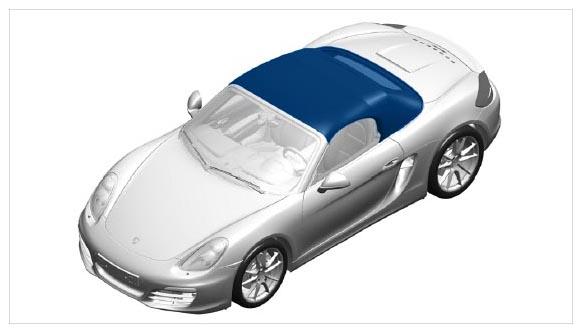

Fig 1: Identifying Convertible Top Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

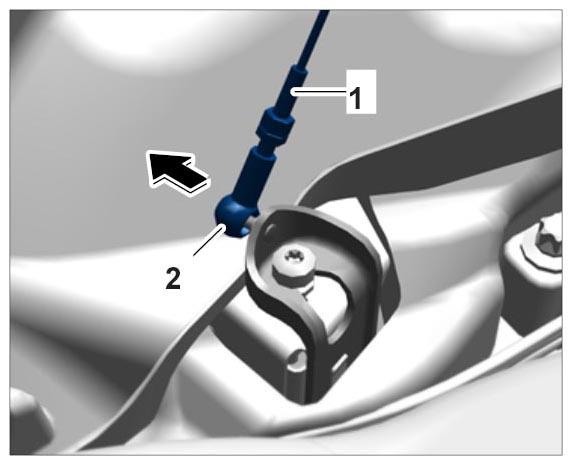

Unclip tension rope -1- from rear ball socket -2- .

Fig 2: Detaching Tension Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

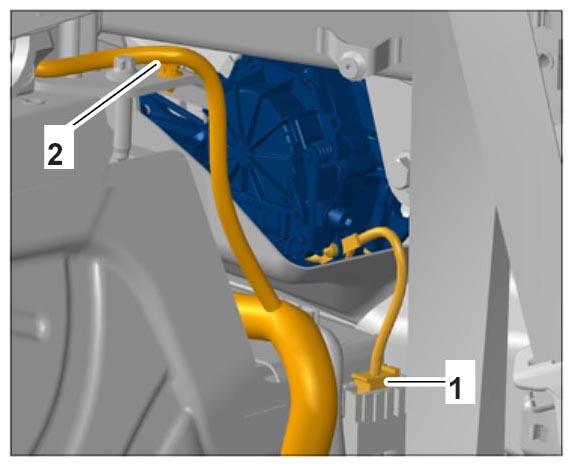

Disconnect plug connection -1- and unclip wiring harness -2- .

Fig 3: Disconnecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

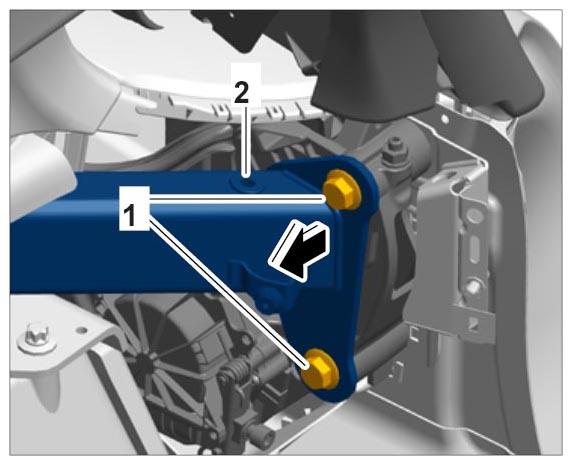

Unscrew front convertible top support fastening screws -1- on roll-over protection -2- .

Fig 4: Detaching Front Convertible Top
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

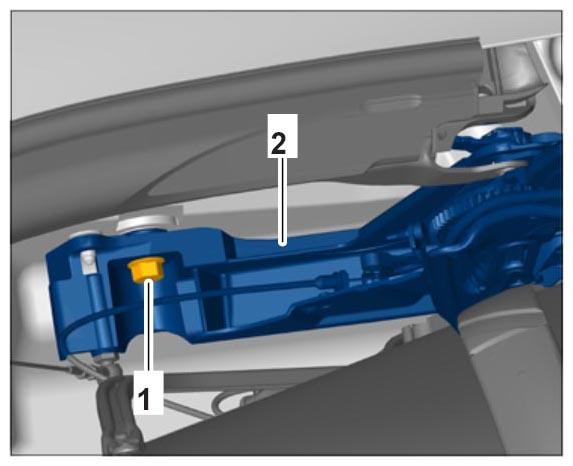

Unscrew fastening screws -1- on rear convertible top support -2- .

Fig 5: Detaching Rear Convertible Top
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
With a helper at the rear, lift the cover out of the guide pins.
Pull the convertible top up and off.
