Removing Rear Footwell Outlet Vent

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle .
Naturally, some steps also have to be performed on the opposite side of the vehicle as well .

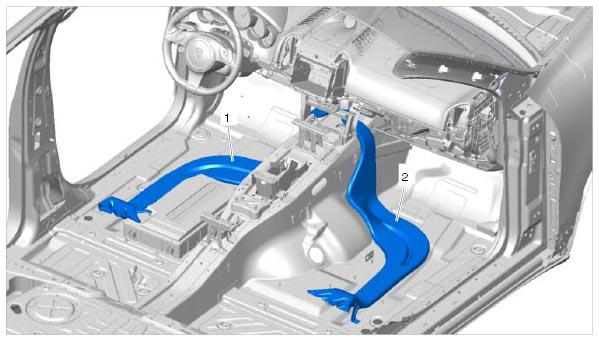

Fig 1: Identifying Rear Footwell Outlet Vent Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear footwell outlet vent on driver's side
Rear footwell outlet vent on passenger's side

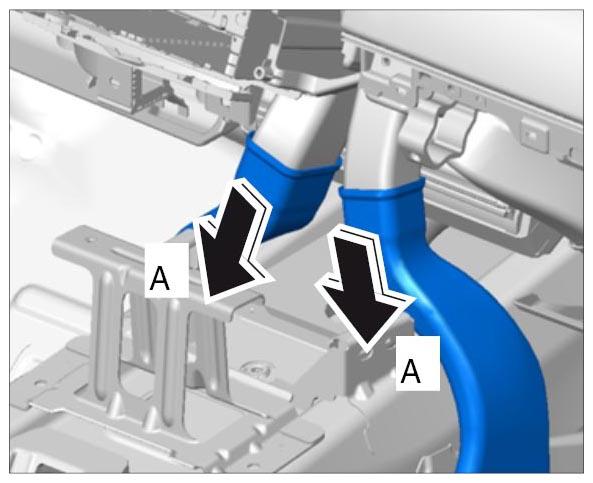

Pull rear footwell outlet vent out of the front footwell outlet vent -A- .

Fig 2: Removing Footwell Outlet Vent
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
