Removing Front Footwell Outlet Vent On Passenger's Side

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

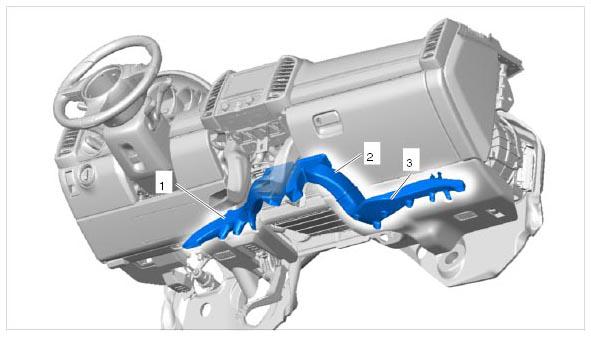

Fig 1: Identifying Front Footwell Outlet Vents Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front footwell outlet vent on driver's side
Front footwell outlet vent on passenger's side
End part of front footwell outlet vent on passenger's side

Unclip end part of footwell outlet vent on passenger's side -1- from the bracket -2- and pull it off the air guide -3- .

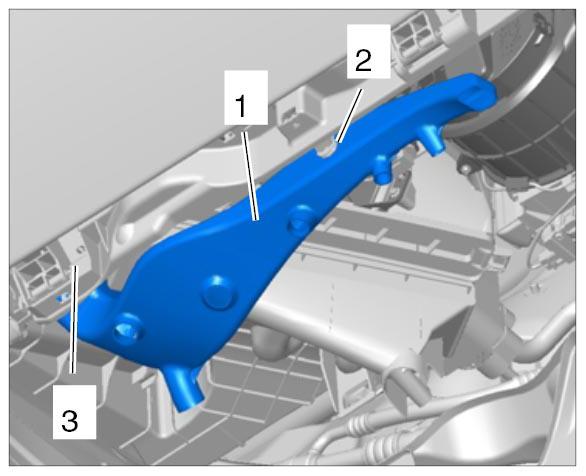

Fig 2: Removing End Part Of Footwell Outlet Vent On Passenger's Side
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove glove box. → 681519 REMOVING AND INSTALLING GLOVE BOX
Remove center console. → 681719 REMOVING AND INSTALLING CENTRE CONSOLE
Pull rear footwell outlet vent off the front footwell outlet vent. → 805719 REMOVING AND INSTALLING REAR FOOTWELL OUTLET VENTS
Pull footwell outlet vent on passenger's side -2- down off the air guide.

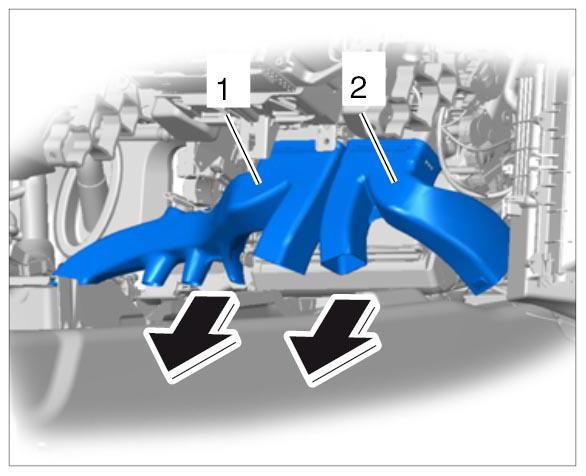

Fig 3: Removing Footwell Outlet Vent
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
