Removing Front Footwell Outlet Vent On Driver's Side

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

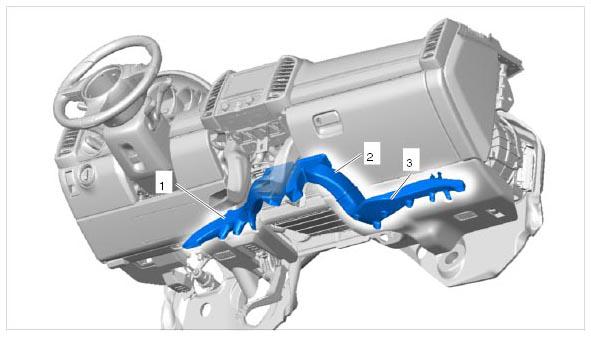

Fig 1: Identifying Front Footwell Outlet Vents Installation Position
G09941226Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Front footwell outlet vent on driver's side
  2. Front footwell outlet vent on passenger's side
  3. End part of front footwell outlet vent on passenger's side
  1. Pull footwell outlet vent on driver's side -1-  down off the air guide.

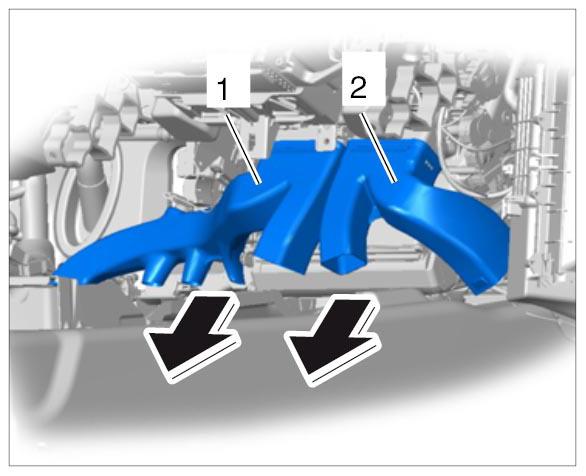

    Fig 2: Removing Footwell Outlet Vent
    G09941227Courtesy of PORSCHE CARS NORTH AMERICA, INC.
