Removing pump valve unit

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

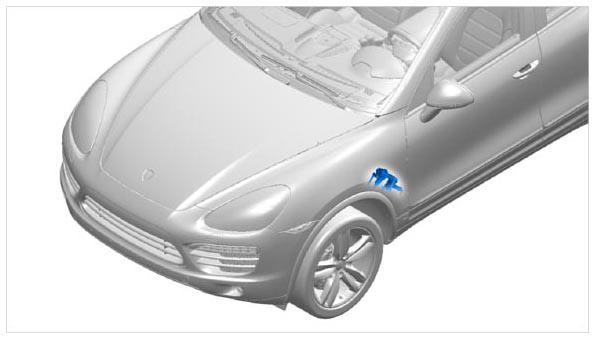

Fig 1: Identifying Pump Valve Unit Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew two fastening screws -1- on the body.

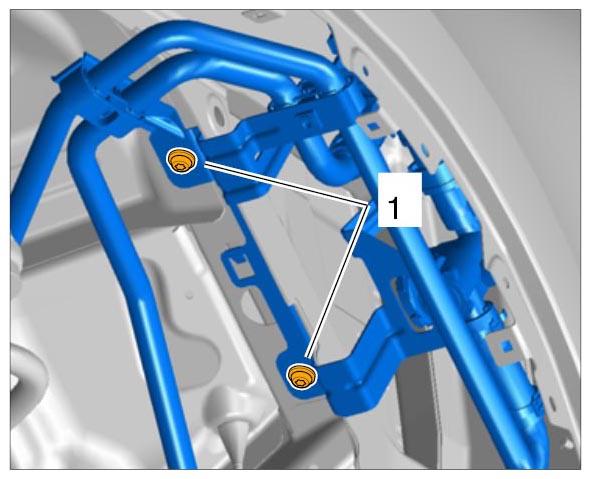

Fig 2: Identifying Screws On Pump Valve Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew one fastening nut -2- on the bracket for the lines on the body.

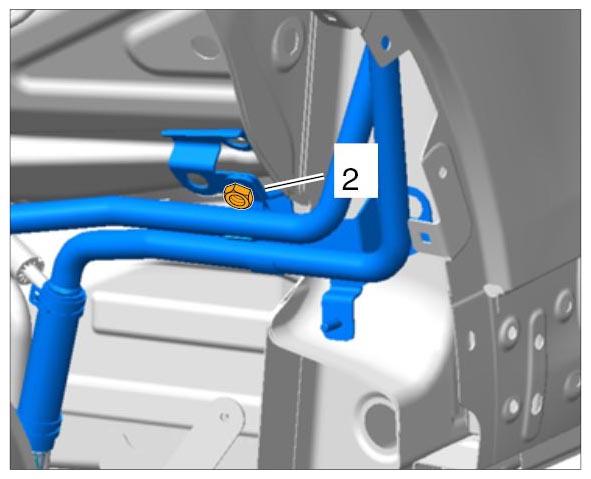

Fig 3: Identifying Fastening Nut On Bracket For Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release and unplug electric plug connection -3- for the pump valve unit.

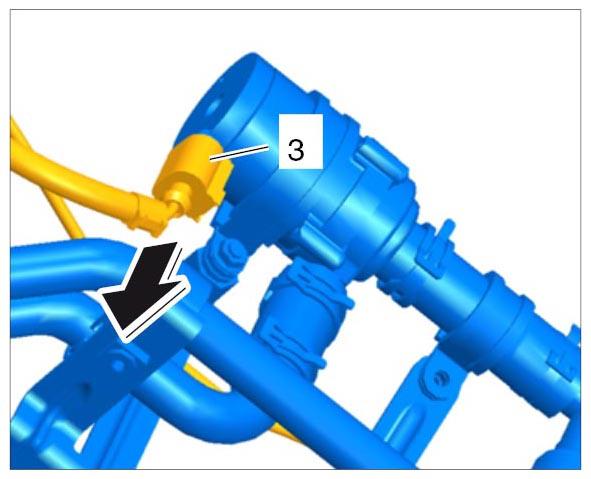

Fig 4: Removing Electric Connector For Pump Valve Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release and unplug electric plug connection -4- for the pump valve unit.

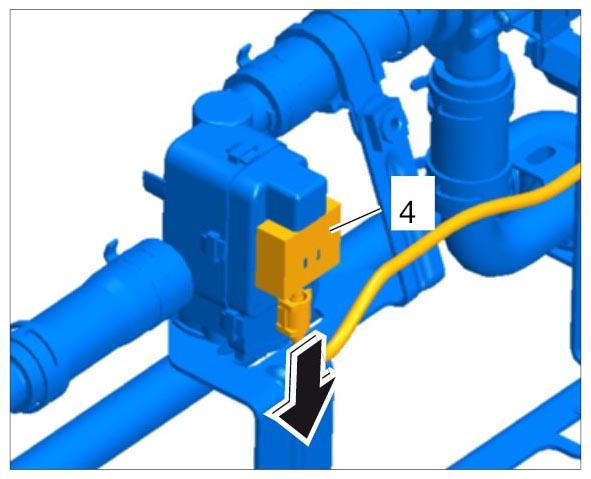

Fig 5: Removing Electric Connector For Pump Valve Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen two clamps -5- on the hoses and pull out the hoses. Use a suitable container to collect emerging coolant.

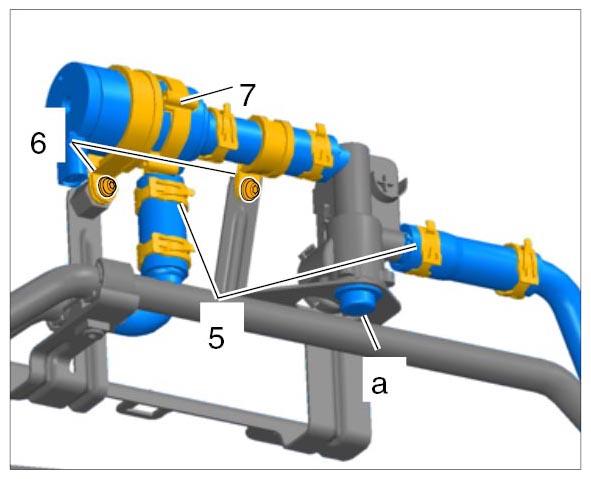

Fig 6: Identifying Pump Valve Unit With Clamps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew two fastening screws -6- on the brackets.
Pull the pump valve unit -7- out of the bracket -a- and remove it.
