Removing Heat Exchanger

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

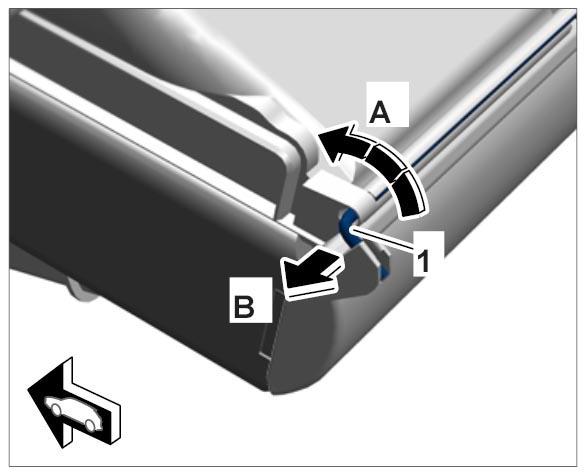

  1. Unclip fastening pin -1-  from the latch in -direction of arrow A-  and pull it out in -direction of arrow B-  .
    Fig 1: Removing Heat Exchanger
    G09941218Courtesy of PORSCHE CARS NORTH AMERICA, INC.

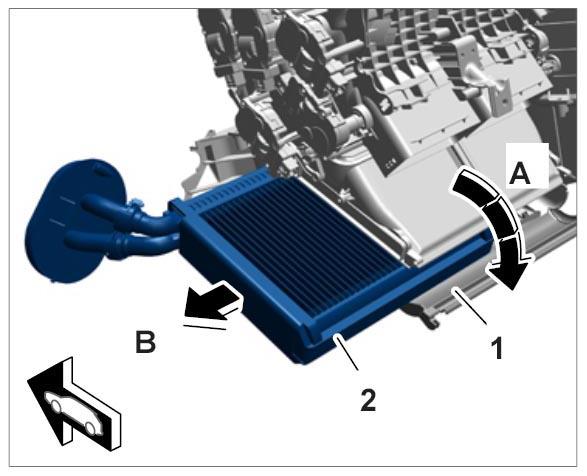

  2. Fold down cover -1-  in -direction of arrow A-  and pull out heat exchanger -2-  in -direction of arrow B-  . The heat exchanger is removed together with the two short coolant pipes. There are no sealing rings as spare parts for the connection point between the coolant pipe and heat exchanger.
    Fig 2: Pulling Out Heat Exchanger
    G09941219Courtesy of PORSCHE CARS NORTH AMERICA, INC.
