Removing Load-Through Provision

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

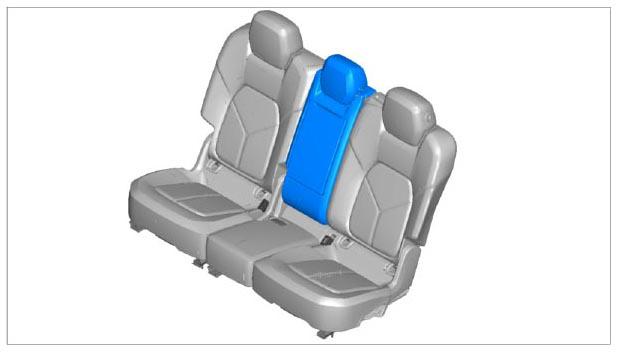

Fig 1: Identifying Load-Through Provision Components

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

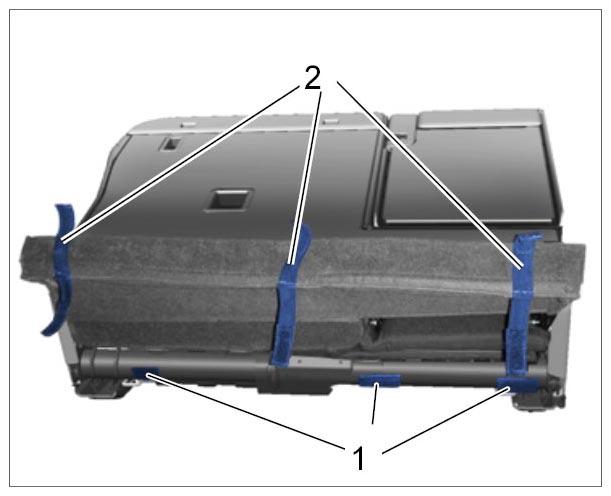

Loosen Velcro fasteners -1, 2- at the bottom of the backrest cover.

Fig 2: Identifying Rear Velcro Fasteners (Bottom)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fold the load-through provision fully forward.

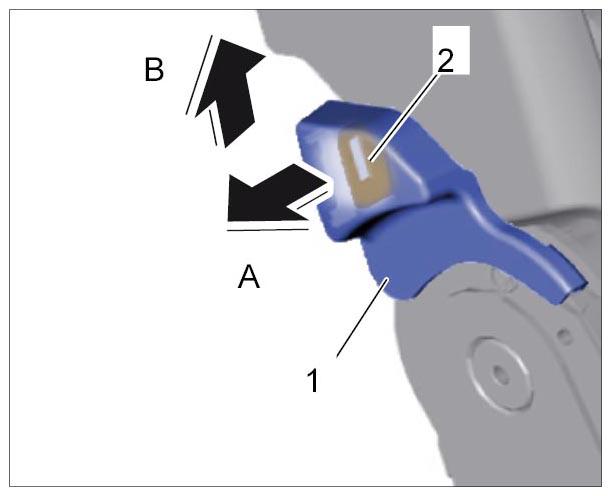

Unclip side trim panel -1- from the holder -2- at the load-through provision -A- and lift it up and out -B- .

Fig 3: Removing Trim Panel On Load-Through Provision
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

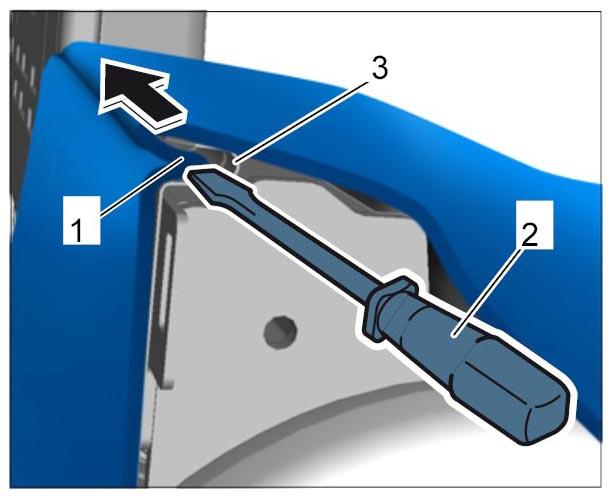

Lever the rear piping -1- at the bottom out of the guide -2- along its entire length using a suitable tool -3- (-arrow- ).

Fig 4: Removing Outer Piping On Load-Through Provision
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

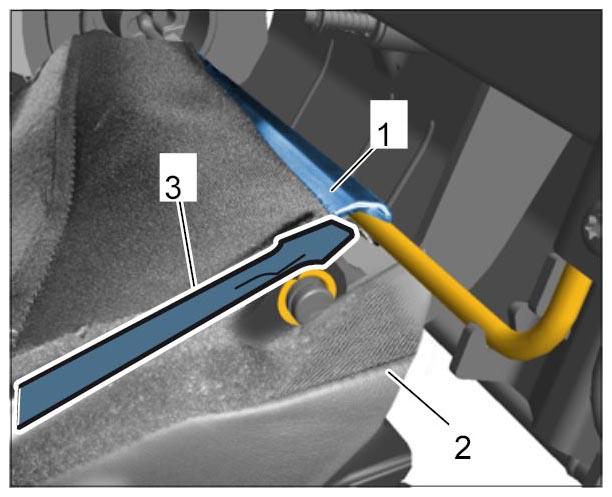

Release the inner piping -1- on the load-through provision -2- along its entire length using a suitable tool -3- .

Fig 5: Removing Inner Piping On Load-Through Provision
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
With safety clips: Remove load-through provision -3- .

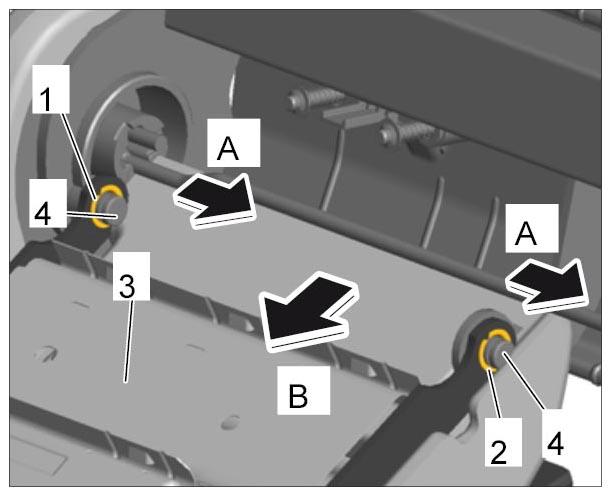

Fig 6: Removing Load-Through Provision (Pin With Safety Clip)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 6.1. Pull out the safety clips -1, 2- on the guide pins -4- .
2. 6.2. Slide the load-through provision -3- on the guide pins -4- by pushing it to the left -A- .
3. 6.3. Pull the load-through provision -3- forward and remove it -B- .
With threaded joint: Remove load-through provision.

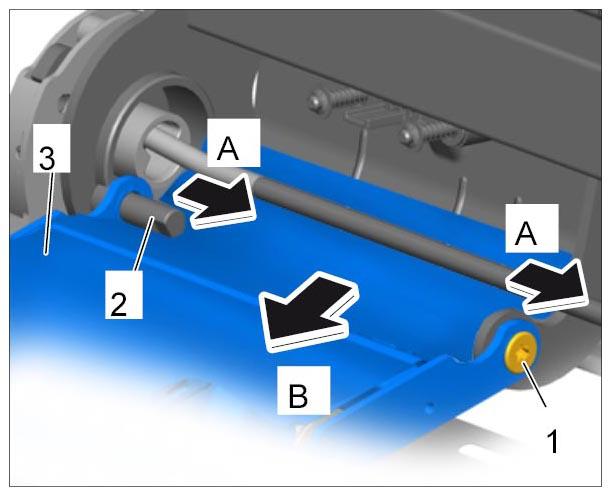

Fig 7: Removing Load-Through Provision (Screwed)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 7.1. Unscrew fastening screw -1- .
2. 7.2. Slide the load-through provision -3- on the guide pin -2- by pushing it to the left -A- .
3. 7.3. Pull the load-through provision -3- forward and remove it -B- .
