Installing Load-Through Provision

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

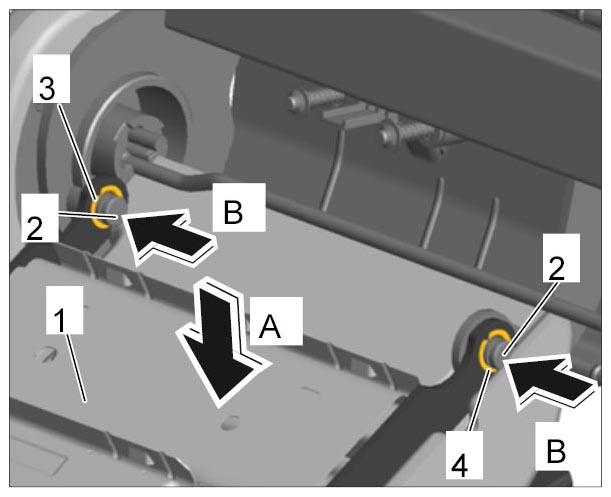

With safety clips: Install load-through provision -1- .

Fig 1: Installing Load-Through Provision (Pin With Safety Clip)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Insert the load-through provision -1- into the vehicle -A- .
2. 1.2. Slide the load-through provision -1- onto the pin -2- by pushing it fully to the right -B- .
3. 1.3. Fit the safety clips -3, 4- on the pin -2- .

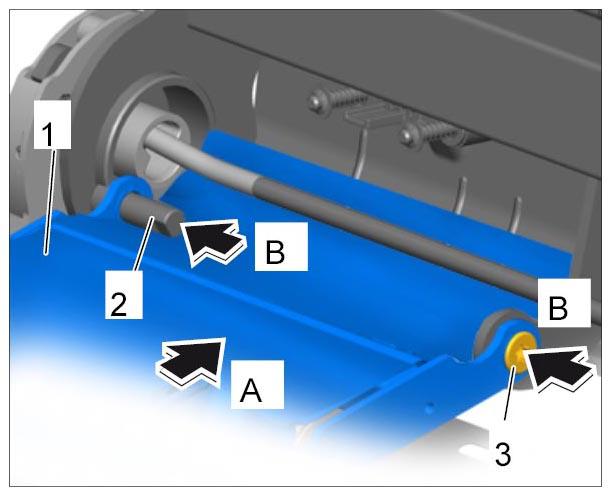

With threaded joint: Install load-through provision.

Fig 2: Installing Load-Through Provision (Threaded Joint)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Insert the load-through provision -1- into the vehicle -A- .
2. 2.2. Slide the load-through provision -1- on the guide pin -2- by pushing it to the right -B- .
3. 2.3. Tighten fastening screw -3- to → Tightening torque: 18 Nm (13 ftlb.)+/-1 Nm (+/-0.5 ftlb.) .

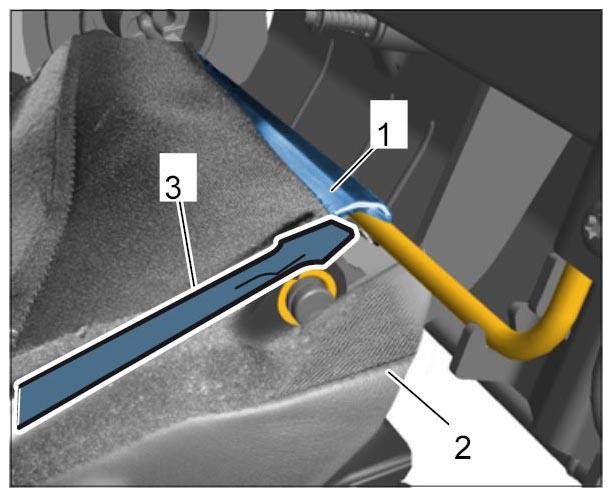

Fit the inner piping -1- on the load-through provision -2- along its entire length.

Fig 3: Fitting Inner Piping On Load-Through Provision
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

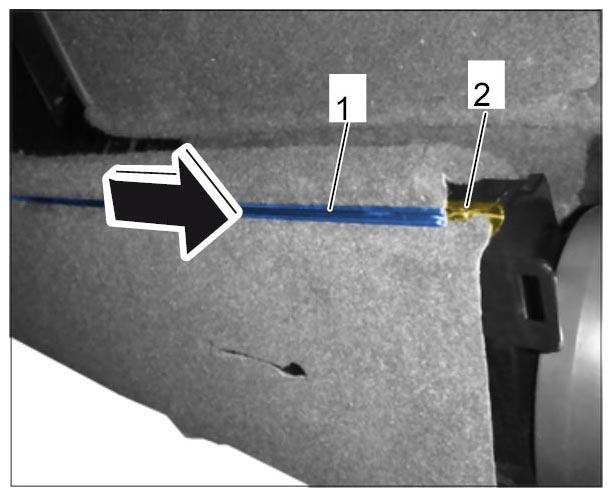

Fit the outer piping -1- on the load-through provision into the guide -2- along its entire length until it engages securely.

Fig 4: Installing Outer Piping On Load-Through Provision
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

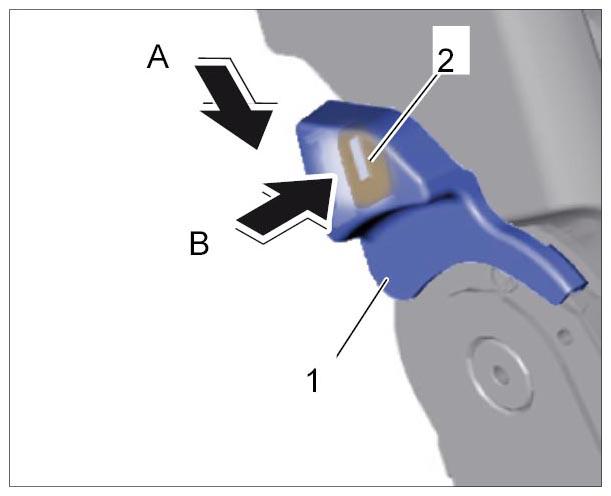

Slide the side trim panel -1- onto the seat from above -A- and clip it into the bracket -2- (-B- ).
Check that the trim panel is seated correctly.

Fig 5: Installing Side Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

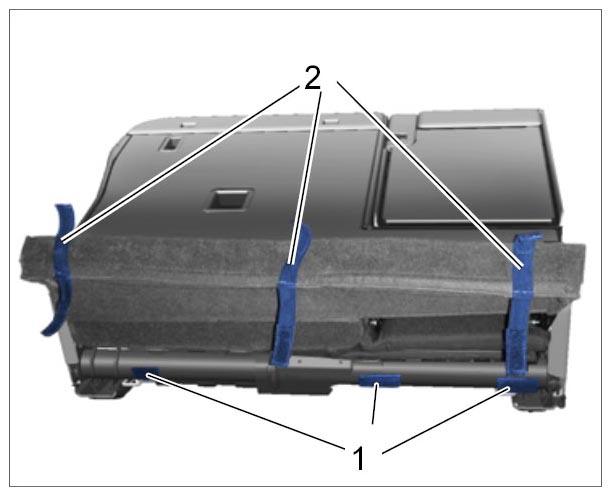

Pull the rear seat cover through in a downward direction and close the Velcro fasteners -1, 2- .

Fig 6: Identifying Rear Velcro Fasteners (Bottom)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
