Removing Armrest With Cover

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

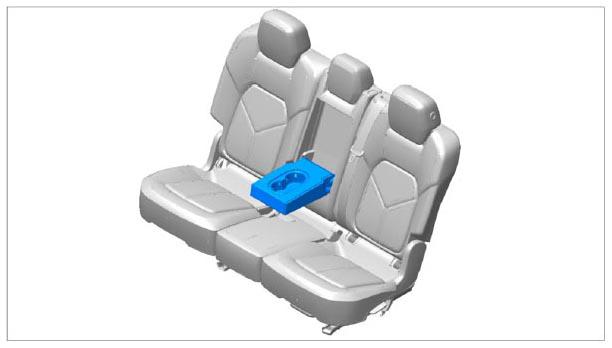

Fig 1: Identifying Armrest With Cover
G09941199Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Fold the armrest down fully.
  2. Unclip the retaining clips -1-  for the rear trim panel -2-  for the armrest from the brackets -3-  on the backrest -4-  on the 2/3-split folding seat using a suitable tool.

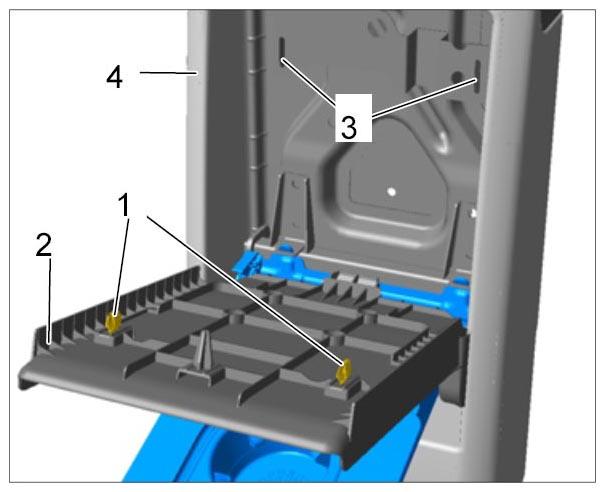

    Fig 2: Identifying Rear Armrest Cover
    G09941200Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove trim panel.
  4. Remove armrest.

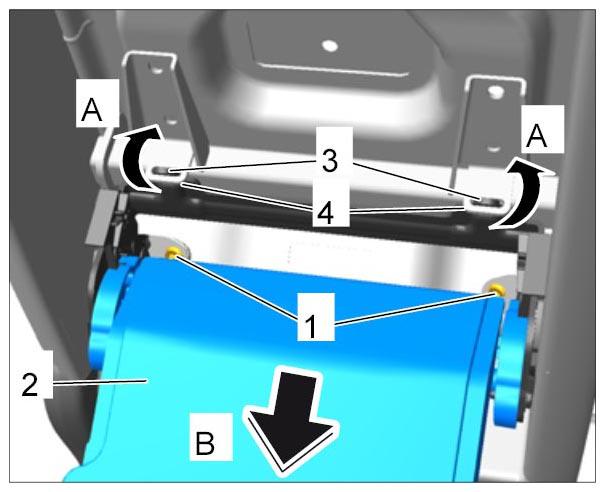

    Fig 3: Removing Armrest
    G09941201Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 4.1. Loosen fastening screws -1-  on the armrest -2-  .
    2. 4.2. Unscrew locking lugs -3-  on the armrest from the holders -4-  at the load-through provision in a downward direction -A-  .
    3. 4.3. Remove the armrest -2-  by pulling it towards the front -B-  .
