Installing Armrest With Cover

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Install armrest -1- .

Fig 1: Installing Armrest
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

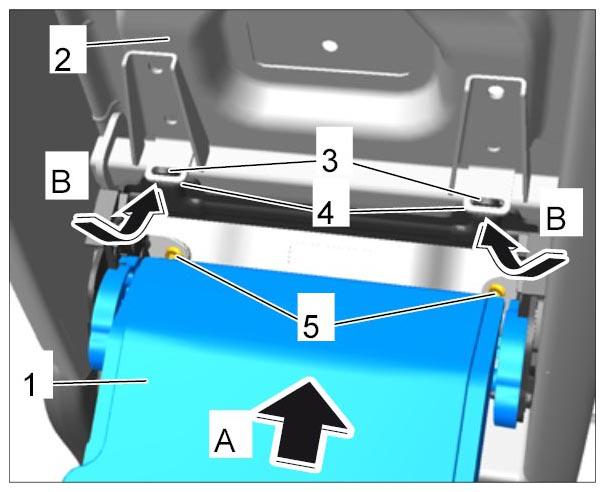

1. 1.1. Position the armrest -1- in the load-through provision -2- (-A- ).
2. 1.2. Insert the locking lugs -3- into the guides -4- (-B- ).
3. 1.3. Screw in fastening screws -5- and tighten to → Tightening torque: 8 Nm (6 ftlb.)+/-0.8 Nm (+/- 0.5 ftlb.) .

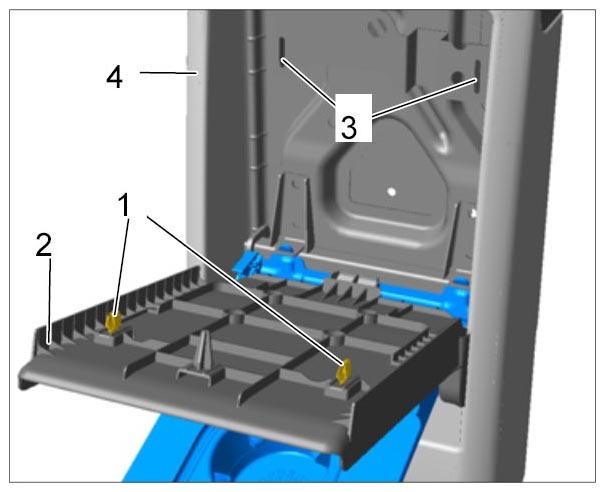

Fit the rear trim panel -2- into the load-through provision -4- and clip the fastening clamps -1- into the guides -3- .

Fig 2: Identifying Rear Armrest Cover, Clamps And Guides
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
