Installing Cover For 2/3-Split Folding Rear Backrest

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Fit the cover.

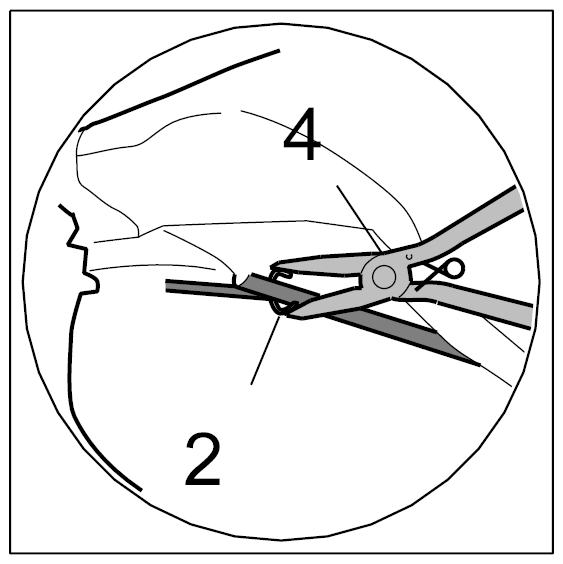

Always use cushion clip pliers Nr.130 -4- and new cushion clips -2- to fasten the cover. → Fitting cushion clips

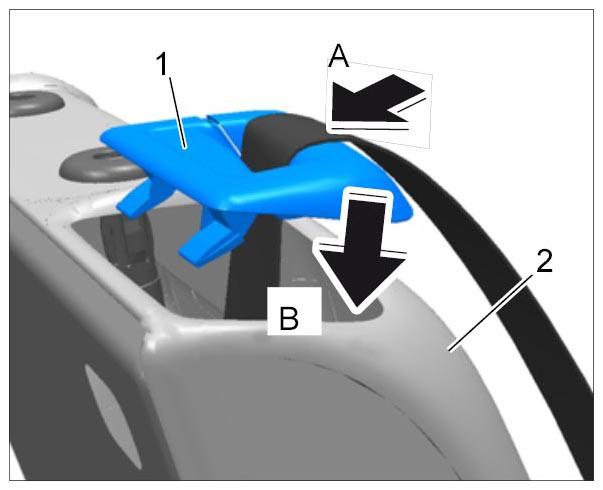

Fig 1: Fitting Cushion Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

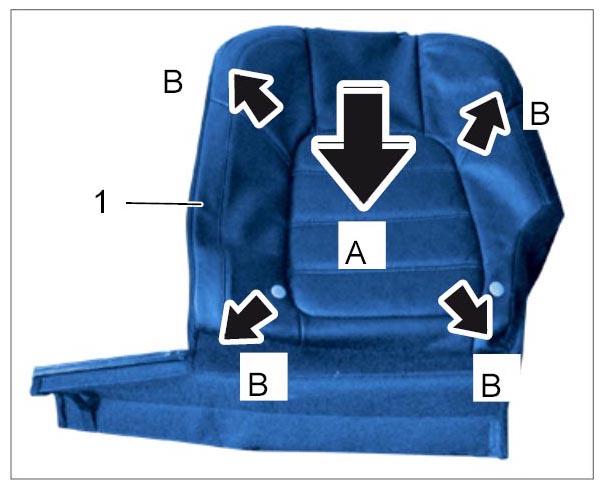

1. 1.1. Place the seat cover -1- on the padding -A- and align it with the contour of the padding -B- .

  Fig 2: Securing Cover - Step 1
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

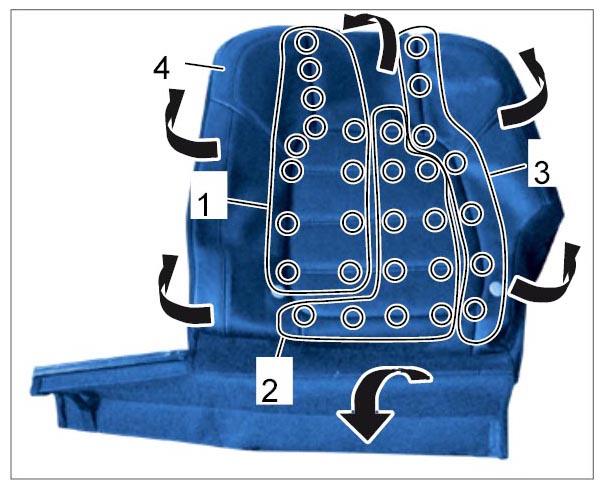

2. 1.2. Fasten the seat cover -4- using cushion clip pliers Nr.130 and new cushion clips in the sequence shown -1 - 3- .

  Fig 3: Securing Cover - Step 2
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 1.3. Pull the outside of the seat cover to the rear -arrows- .
Secure the backrest cover -1- to the side airbag holder -2- at the front and rear.

Fig 4: Identifying Cover On Airbag
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit side airbag to the backrest frame.

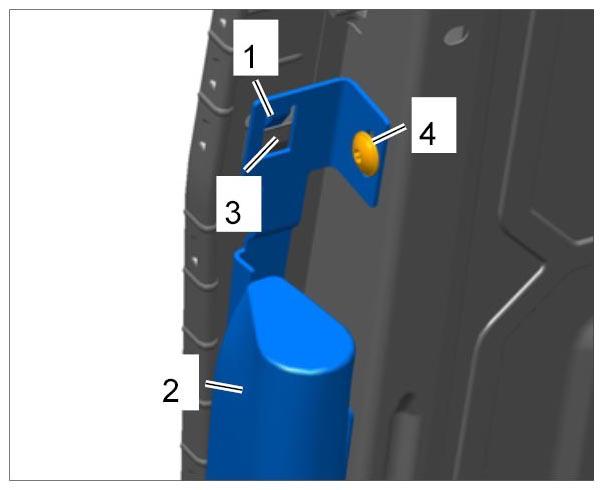

1. 3.1. Guide the holder -1- for the side airbag -2- into the guide -3- .

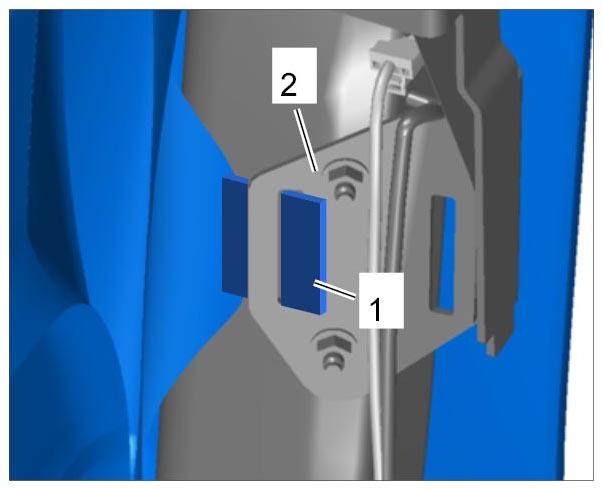

  Fig 5: Identifying Side Airbag On Backrest Frame
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Screw in fastening screw -4- and tighten to → Tightening torque: 9 Nm (6.5 ftlb.) .
Clip in the electric wire harness -1- at the holder -3- on the inside of the seat frame and fit the guide -2- on the seat frame.

Fig 6: Identifying Holder For Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

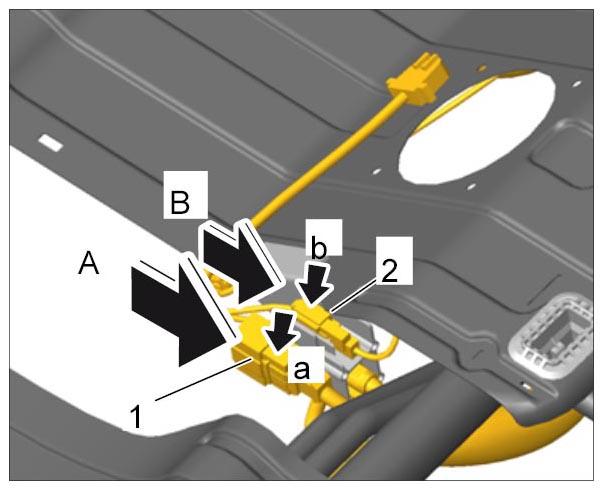

Plug in existing electric plug connections -1, 2- for the 2/3-split folding seat -A, B- and lock them -a, b- .

Fig 7: Installing Electric Plug Connections For 2/3-Split Folding Rear Seat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

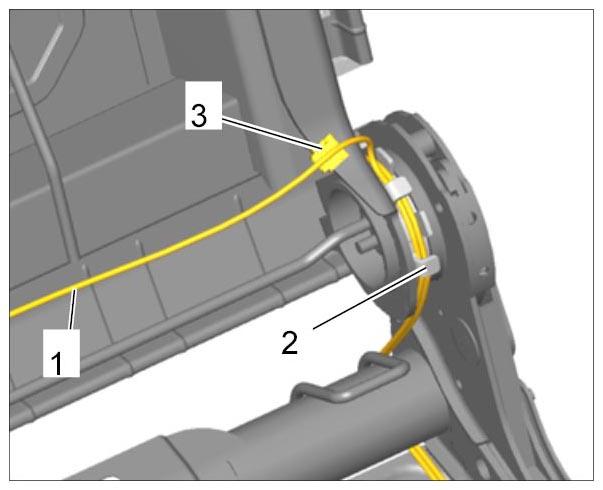

Clip in the wire harness -1- at the brackets -2- on the seat frame.

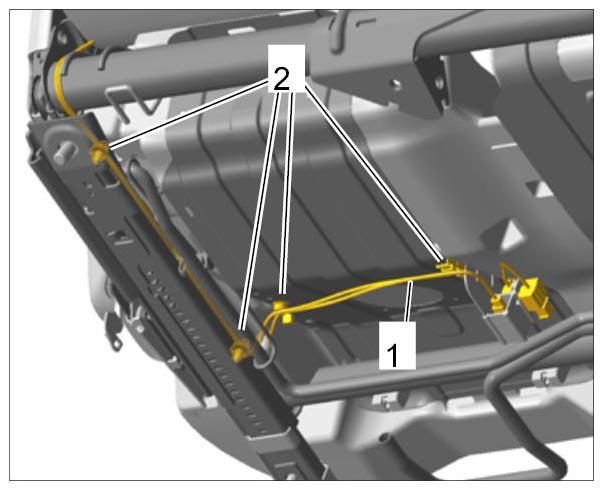

Fig 8: Identifying Wire Harness For 2/3-Split Folding Backrest
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

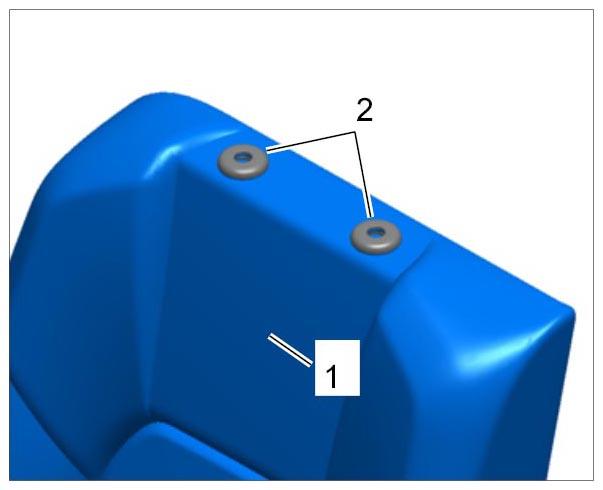

Carefully pull the backrest cover -1- over the covers -2- on the headrest guide.

Fig 9: Identifying Backrest Cover (Top)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carefully fold the backrest cover -1- to the rear -arrows- and insert the piping -2- over the entire length into the guide -3- on the backrest frame → Seat piping .

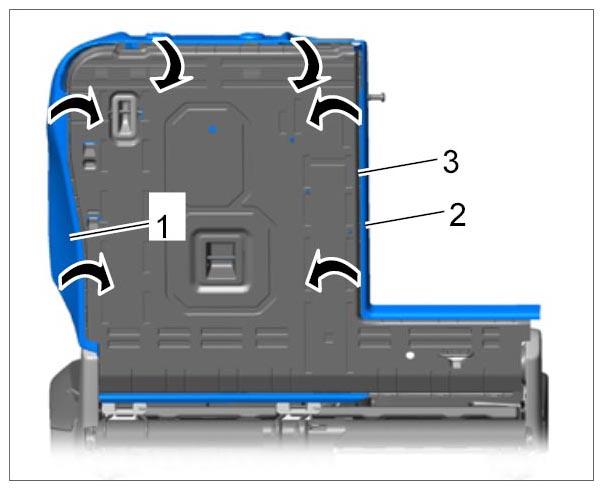

Fig 10: Securing Cover For 2/3-Split Folding Rear Backrest
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check that the piping -2- on the backrest cover -1- engages securely in the guide -5- .

Fig 11: Checking Seat Piping
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure the seat belt -1- at the bottom.

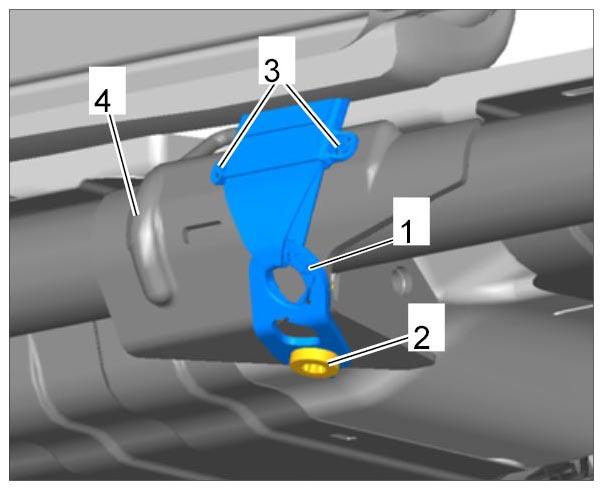

Fig 12: Identifying Centre Seat Belt
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 10.1. Screw in fastening screw -2- for the seat belt -1- and tighten to → Tightening torque: 50 Nm (37 ftlb.) .
2. 10.2. Clip in fixing clips -3- for the seat belt on the seat frame -4- .
3. 10.3. Check that the seat belt is routed correctly.
Insert the seat belt guide -1- into the padding -2- (-A- ) and clip it in in a downward direction -B- .

Fig 13: Inserting Seat Belt Guide Into Padding
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

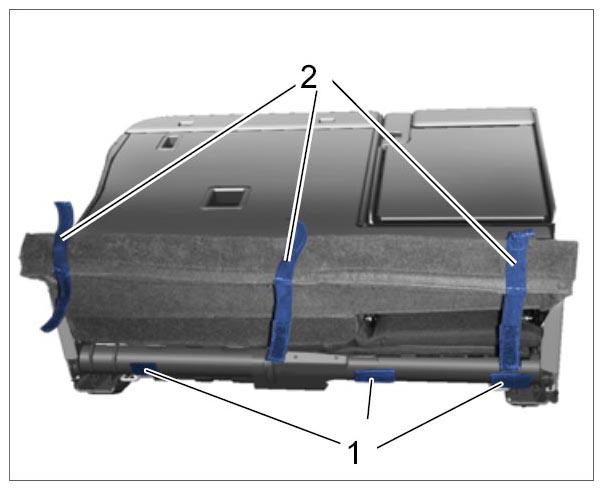

Pull the rear seat cover through in a downward direction and close the Velcro fasteners -1, 2- .

Fig 14: Identifying Rear Velcro Fasteners (Bottom)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip the rear trim panel at the top -1- into the seat backrest -2- .

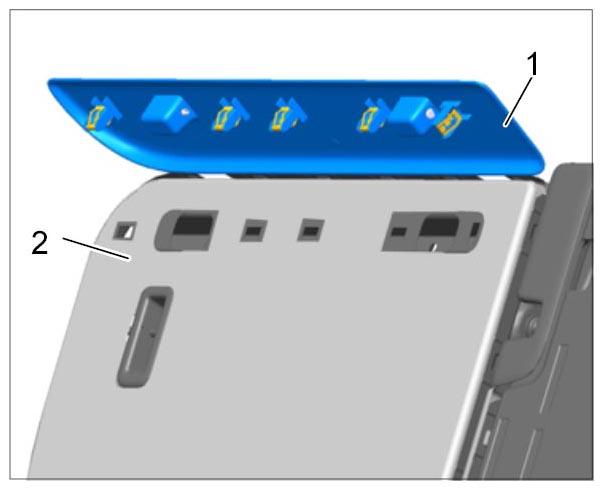

Fig 15: Identifying Rear Trim Panel (Top)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
