Removing Cover For 1/3-Split Folding Rear Backrest

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

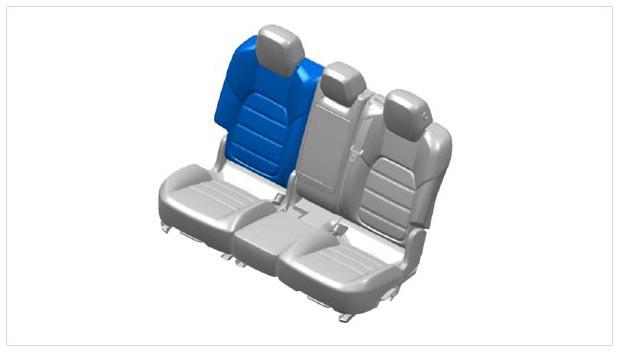

Fig 1: Identifying 1/3-Split Folding Rear Backrest
G09941146Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unclip rear trim panel at the top -1-  at the retaining clips -2-  .

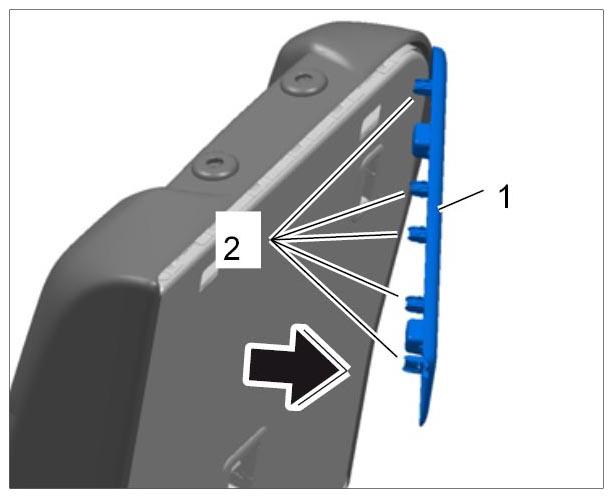

    Fig 2: Removing Trim Panel
    G09941147Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Disconnect electric plug connection for 1/3-split folding rear backrest.

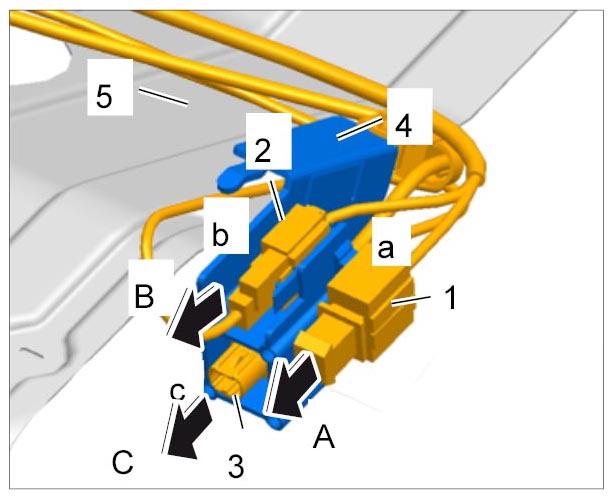

    Fig 3: Disconnecting Electric Plug Connections For 1/3-Split Folding Rear Backrest
    G09941148Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 2.1. Release electric plug connection -1-  for wire harness for seat heating -a-  and pull it off -A-  .
    2. 2.2. Release electric plug connection -2-  for seat heating connection point -b-  and pull it off -B-  .
    3. 2.3. Release electric plug connection -3-  on wire harness for side airbag -c-  and pull it off -C-  .
    4. 2.4. Unclip the holder -4-  at the seat frame -5-  .
  3. Unclip electric wire harness -1-  for the seat backrest at the brackets -2-  .

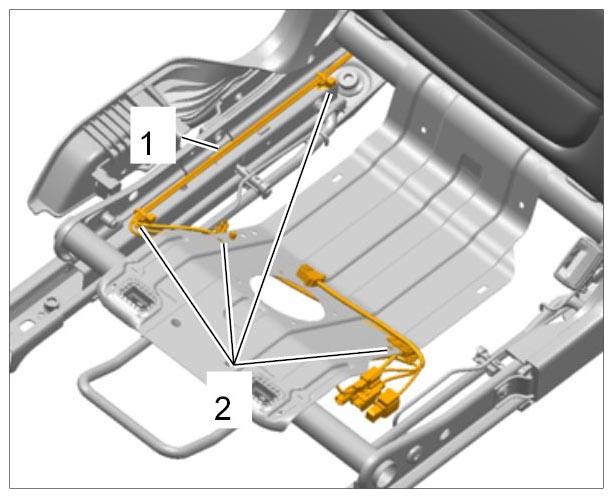

    Fig 4: Identifying Wire Harness Mounting On Seat Frame
    G09941149Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Loosen Velcro fasteners -1, 3-  at the bottom of the backrest cover -2- (-A-)  .

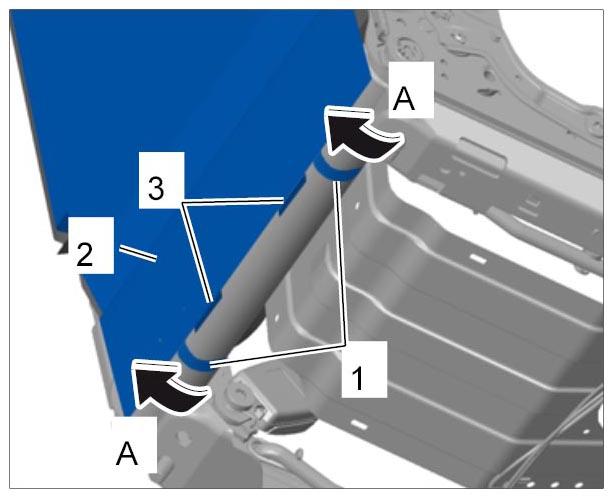

    Fig 5: Loosening Backrest Cover At Bottom
    G09941150Courtesy of PORSCHE CARS NORTH AMERICA, INC.

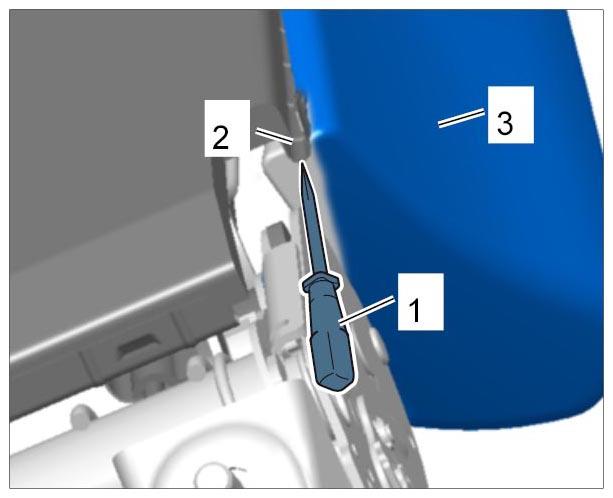

  5. Insert a suitable tool -1-  into the gap -2-  at the bottom of the backrest frame and carefully lever out the backrest cover piping -3-  over the entire length of the backrest.
    Fig 6: Loosening Backrest Cover
    G09941151Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Carefully slide the backrest cover -1-  forward over the covers -2-  on the headrest support.

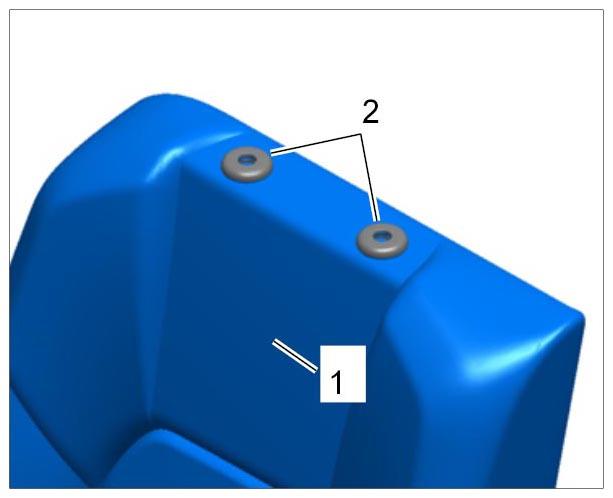

    Fig 7: Identifying Backrest Cover (Top)
    G09941152Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Unscrew fastening screw -4-  on side airbag -2-  .

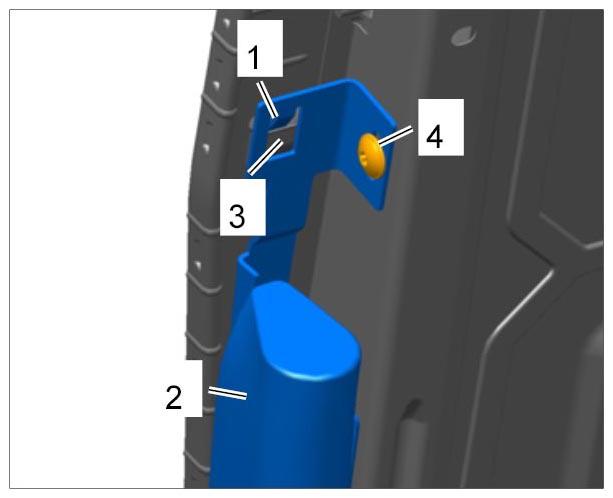

    Fig 8: Identifying Side Airbag On Backrest Frame
    G09941153Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Slide the side airbag holder -1-  up and take it out of the guide -3-  .
  9. Loosen the fastenings -1-  securing the cover to the side airbag holder -2-  at the front and rear.

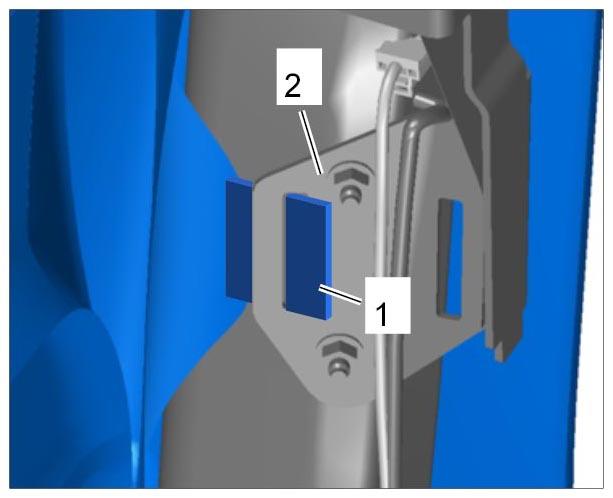

    Fig 9: Identifying Cover On Airbag
    G09941154Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  10. Remove backrest cover.

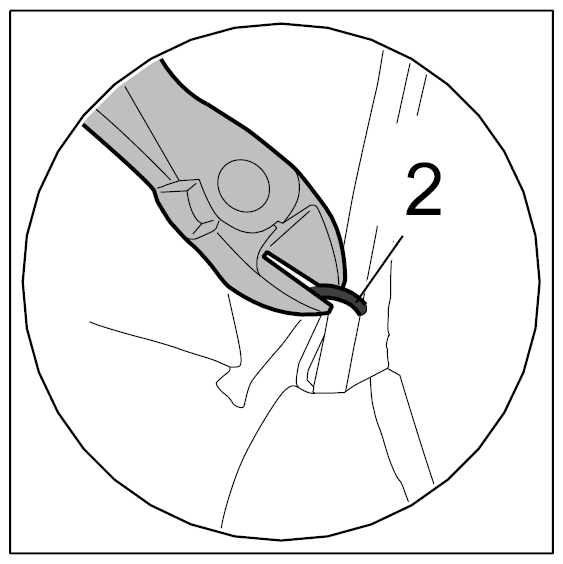

    1. 10.1. Cut the cushion clips -2-  using a suitable tool, e.g. side cutters. → Cutting cushion clips
      Fig 10: Cutting Cushion Clips
      G09941155Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 10.2. Cut open the cushion clips in the specified sequence -1-4-  from the outside in.

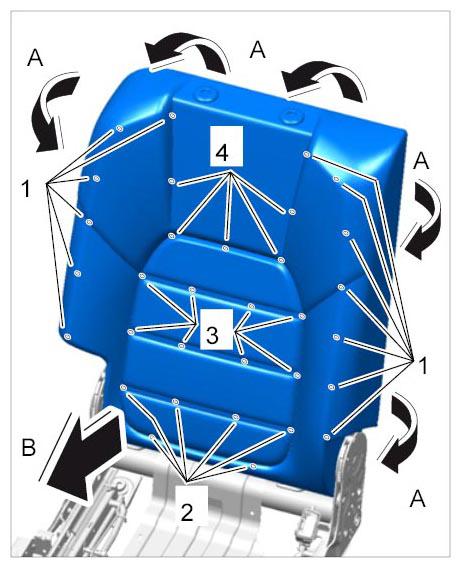

      Fig 11: Removing Cushion Clips
      G09941156Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    3. 10.3. Slide the outside of the backrest cover over the padding mount -A-  .
    4. 10.4. Remove the backrest cover from the padding mount -B-  .
    5. 10.5. Remove the remaining pieces of the cushion clips.
