Installing Cover For 1/3-Split Folding Rear Backrest

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Fit the cover.
Always use cushion clip pliers Nr.130 -4- and new cushion clips -2- to fasten the cover. → Fitting cushion clips

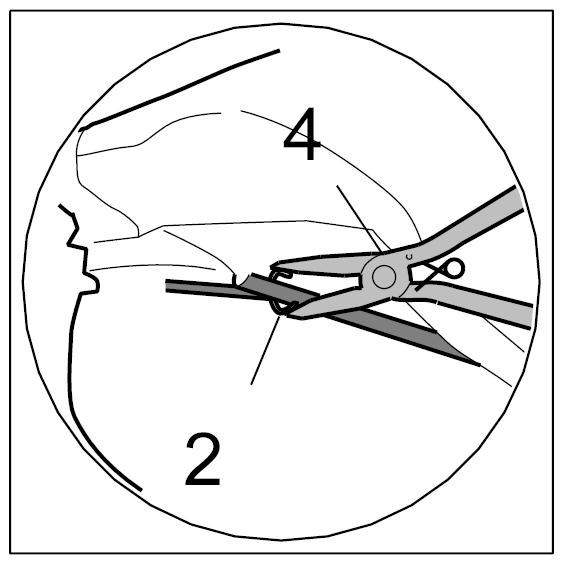

Fig 1: Fitting Cushion Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

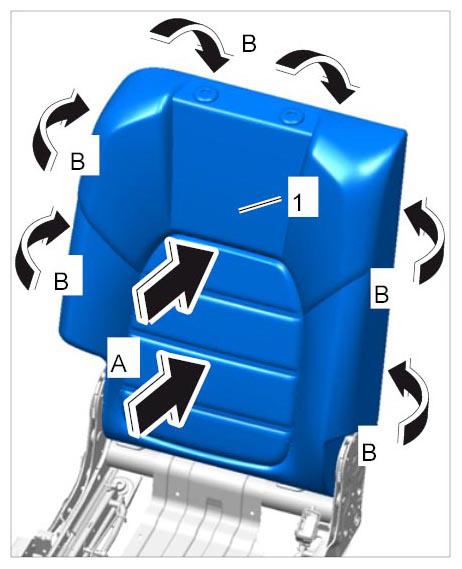

1. 1.1. Place the cover -1- on the padding -A- and align with the contour of the padding -B- .

  Fig 2: Fitting Cover - Step 1
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Fasten the cover -4- using cushion clip pliers Nr.130 and new cushion clips in the sequence shown -1-3- .

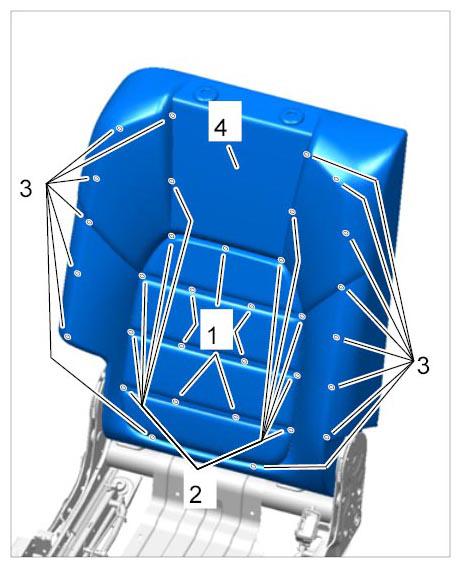

  Fig 3: Fitting Cover - Step 2
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

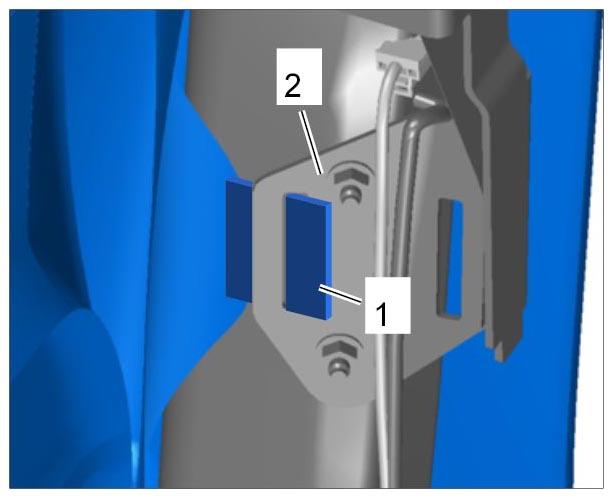

Secure the backrest cover -1- to the side airbag holder -2- at the front and rear.

Fig 4: Identifying Cover On Airbag
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit side airbag to the backrest frame.

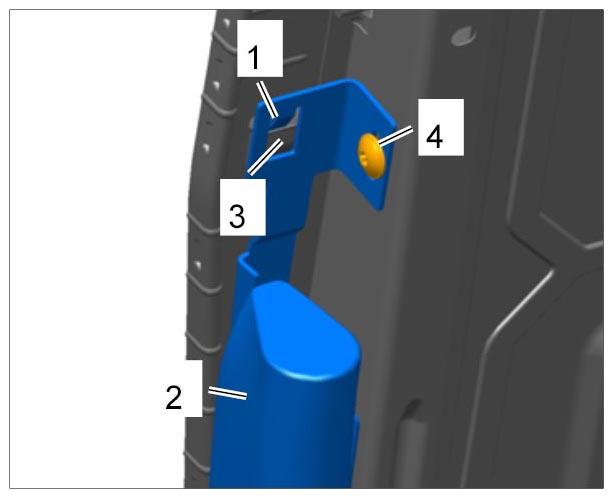

1. 3.1. Guide the holder -1- for the side airbag -2- into the guide -3- .

  Fig 5: Identifying Side Airbag On Backrest Frame
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Screw in fastening screw -4- and tighten to → Tightening torque: 9 Nm (6.5 ftlb.) .

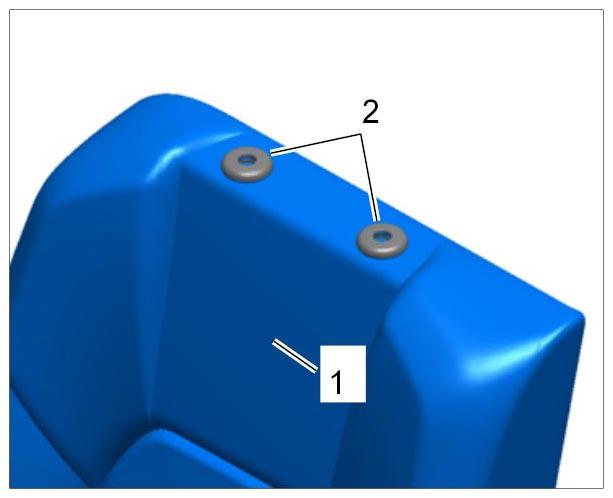

Carefully pull the backrest cover -1- over the covers -2- on the headrest guide.

Fig 6: Identifying Backrest Cover (Top)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect existing electric plug connections.

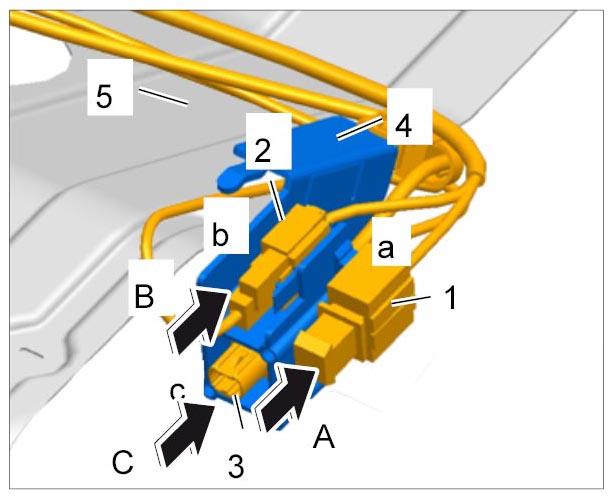

Fig 7: Connecting Electric Plug Connections For 1/3-Split Folding Backrest
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 5.1. Plug in electric plug connection -1- for seat heating -A- and lock it -a- .
2. 5.2. Plug in electric plug connection -2- for seat heating connection point -B- and lock it -b- .
3. 5.3. Plug in electric plug connection -3- for side airbag -C- and lock it -c- .
4. 5.4. Clip the holder -4- for the electric plug connections onto the seat frame -5- .

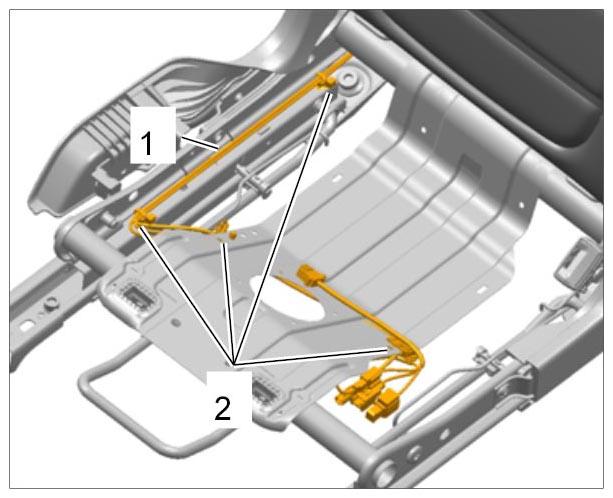

Clip in the wire harness -1- at the holders -2- on the seat frame.

Fig 8: Identifying Wire Harness Mounting On Seat Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

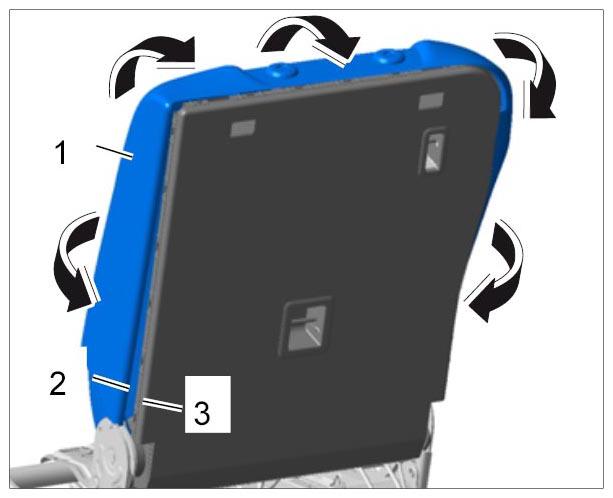

Carefully fold the backrest cover -1- to the rear -arrows- and insert the piping -2- over the entire length into the guide -3- on the backrest frame → Seat piping .

Fig 9: Securing Rear Backrest Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check that the piping -2- on the backrest cover -1- engages securely in the guide -5- .

Fig 10: Checking Seat Piping
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

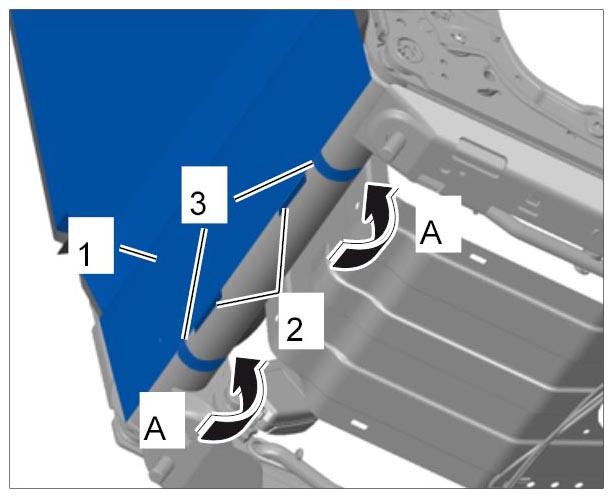

Pull the rear backrest cover -1- down -A- and close the Velcro fasteners -2, 3- .

Fig 11: Securing Backrest Cover At Bottom
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

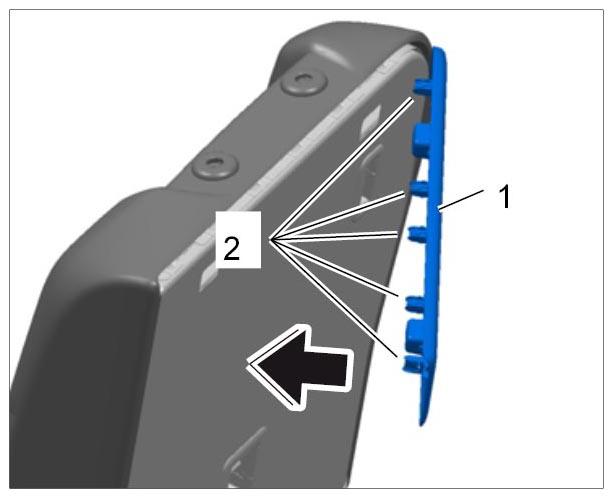

Clip in the rear trim panel at the top -1- at the retaining clips -2- (-arrow- ).

Fig 12: Fitting Trim Panel At Top
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
