Installing Padding For 2/3-Split Folding Rear Backrest

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the padding for the 2/3-split folding rear backrest together with the cover and wire harness on the seat frame.
  2. Secure the backrest cover -1-  to the side airbag holder -2-  at the front and rear.

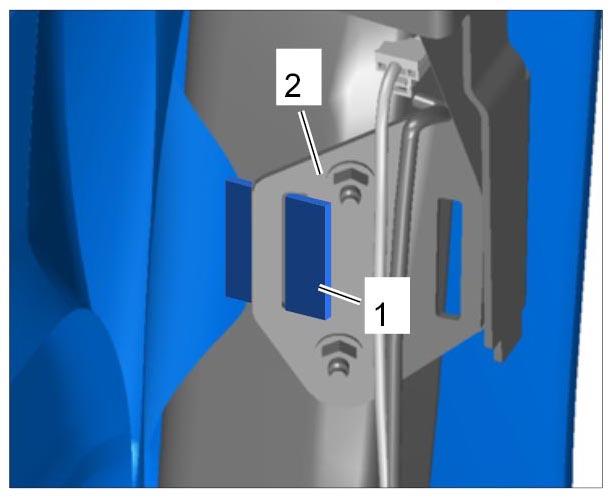

    Fig 1: Identifying Cover On Airbag
    G09941133Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Fit side airbag to the backrest frame.
    1. 3.1. Guide the holder -1-  for the side airbag -2-  into the guide -3-  .

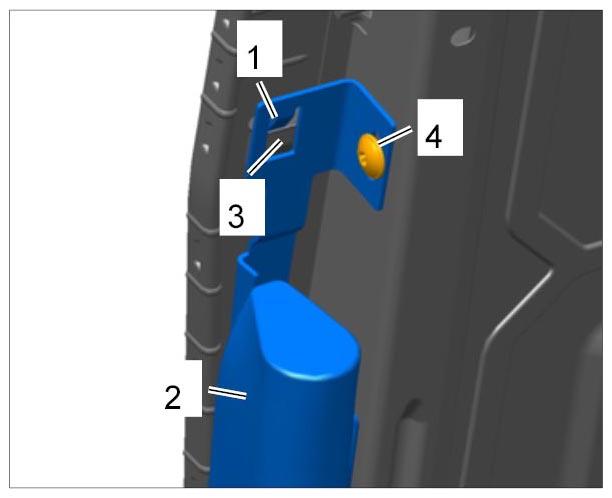

      Fig 2: Identifying Side Airbag On Backrest Frame
      G09941134Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 3.2. Screw in fastening screw -4-  and tighten to → Tightening torque: 9 Nm (6.5 ftlb.)  .
  4. Clip in the electric wire harness -1-  at the holder -3-  on the inside of the seat frame and fit the guide -2-  on the seat frame.

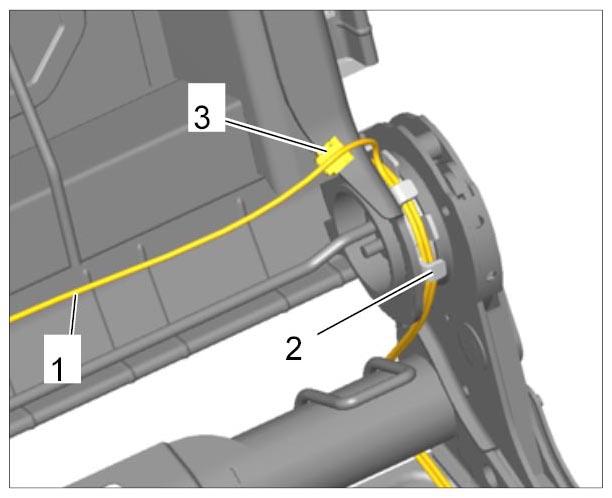

    Fig 3: Identifying Clipping In Holder For Wire Harness
    G09941135Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Plug in existing electric plug connections -1, 2-  for the 2/3-split folding seat -A, B-  and lock them -a, b-  .

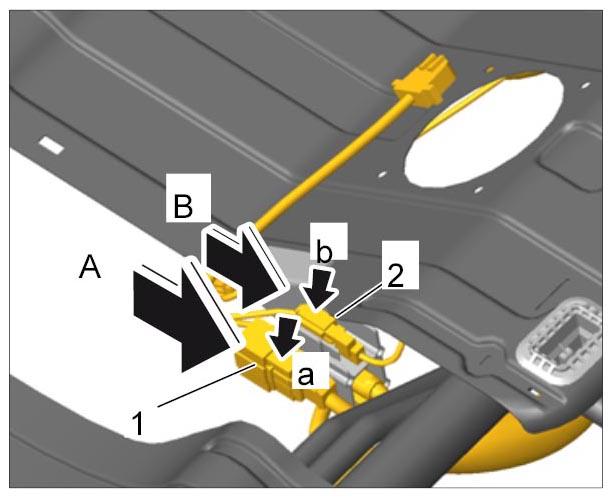

    Fig 4: Installing Electric Plug Connections For 2/3-Split Folding Rear Seat
    G09941136Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Clip in the wire harness -1-  at the brackets -2-  on the seat frame.

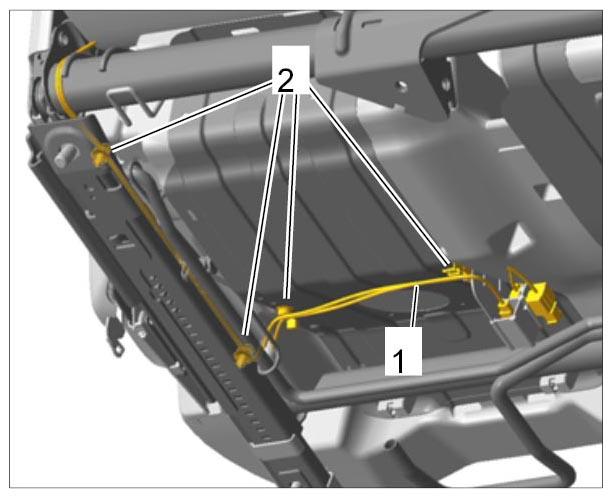

    Fig 5: Identifying Wire Harness For 2/3-Split Folding Backrest
    G09941137Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Carefully pull the backrest cover -1-  over the covers -2-  on the headrest guide.

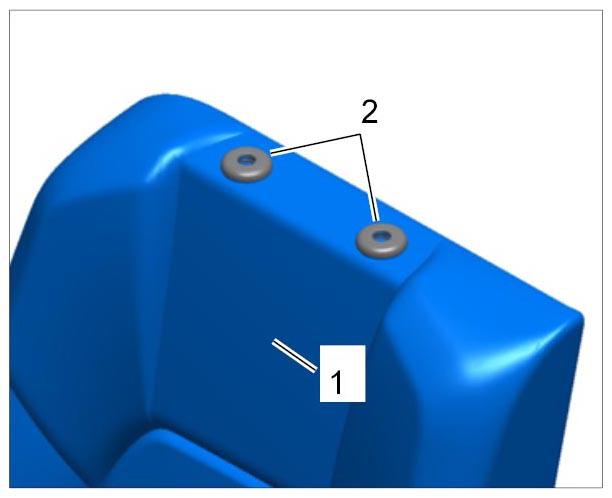

    Fig 6: Identifying Backrest Cover (Top)
    G09941138Courtesy of PORSCHE CARS NORTH AMERICA, INC.

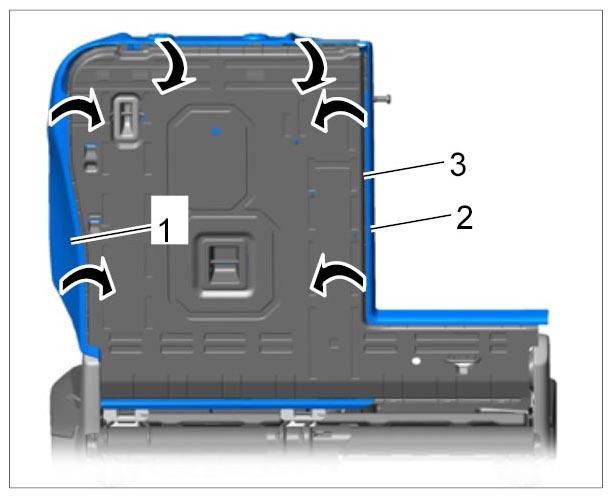

  8. Carefully fold the backrest cover -1-  to the rear -arrows-  and insert the piping -2-  over the entire length into the guide -3-  on the backrest frame → Seat piping  .
    Fig 7: Securing Cover For 2/3-Split Folding Rear Backrest
    G09941139Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  9. Check that the piping -2-  on the backrest cover -1-  engages securely in the guide -5-  .
    Fig 8: Checking Seat Piping
    G09941140Courtesy of PORSCHE CARS NORTH AMERICA, INC.

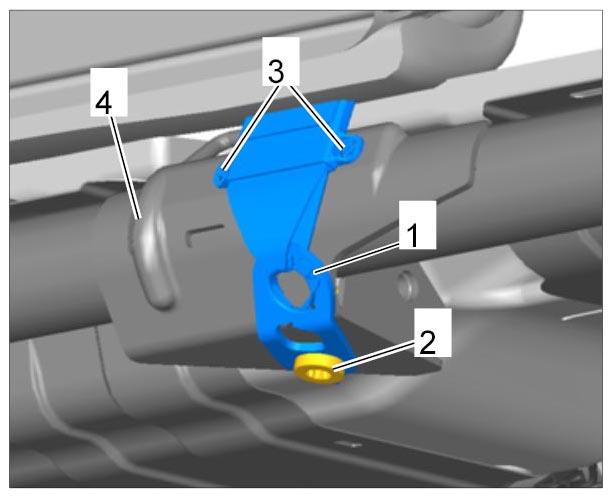

  10. Secure the seat belt -1-  at the bottom.
    Fig 9: Identifying Centre Seat Belt
    G09941141Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 10.1. Screw in fastening screw -2-  for the seat belt -1-  and tighten to → Tightening torque: 50 Nm (37 ftlb.)  .
    2. 10.2. Clip in fixing clips -3-  for the seat belt on the seat frame -4-  .
    3. 10.3. Check that the seat belt is routed correctly.
  11. Insert the seat belt guide -1-  into the padding -2-  (-A-  ) and clip it in in a downward direction -B-  .

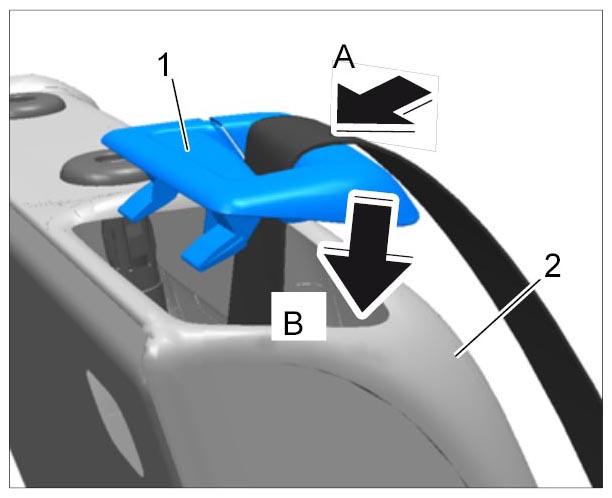

    Fig 10: Inserting Seat Belt Guide
    G09941142Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  12. Pull the rear seat cover through in a downward direction and close the Velcro fasteners -1, 2-  .

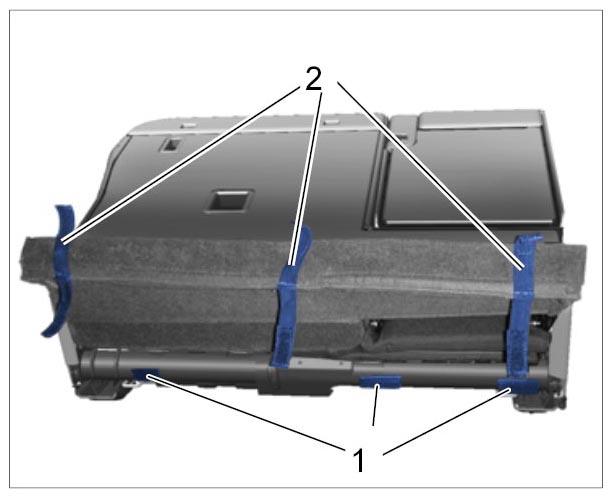

    Fig 11: Identifying Rear Velcro Fasteners (Bottom)
    G09941143Courtesy of PORSCHE CARS NORTH AMERICA, INC.

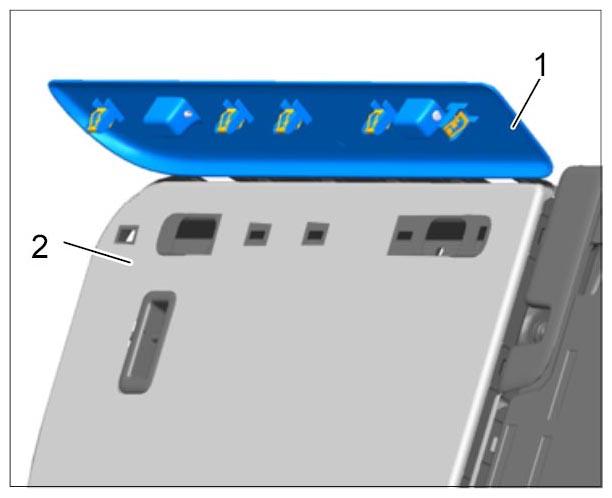

  13. Clip the rear trim panel at the top -1-  into the seat backrest -2-  .
    Fig 12: Identifying Rear Trim Panel (Top)
    G09941144Courtesy of PORSCHE CARS NORTH AMERICA, INC.
