Removing Padding For 1/3-Split Folding Rear Backrest

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

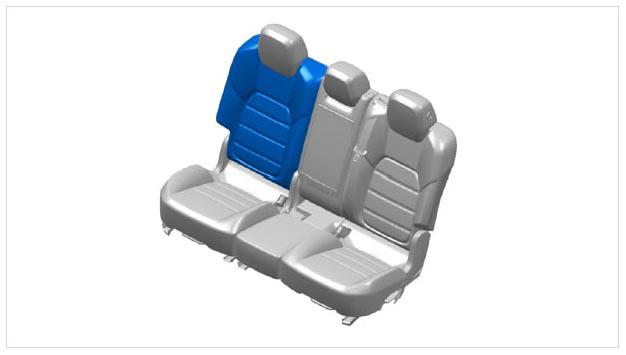

Fig 1: Identifying 1/3-Split Folding Rear Backrest
G09941104Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unclip rear trim panel at the top -1-  at the retaining clips -2-  .

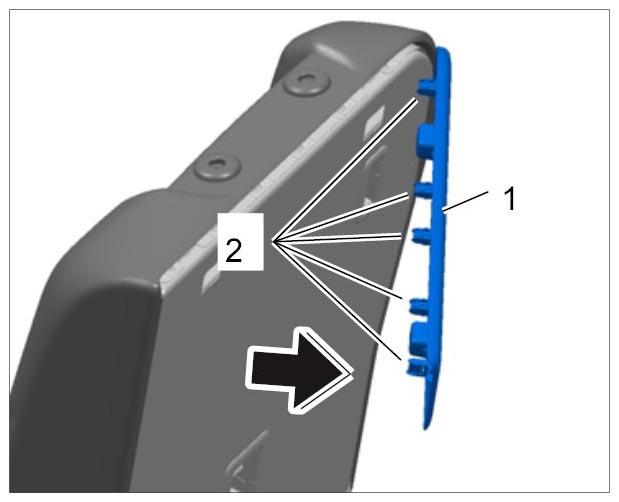

    Fig 2: Removing Trim Panel
    G09941105Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Disconnect electric plug connection for 1/3-split folding rear backrest.

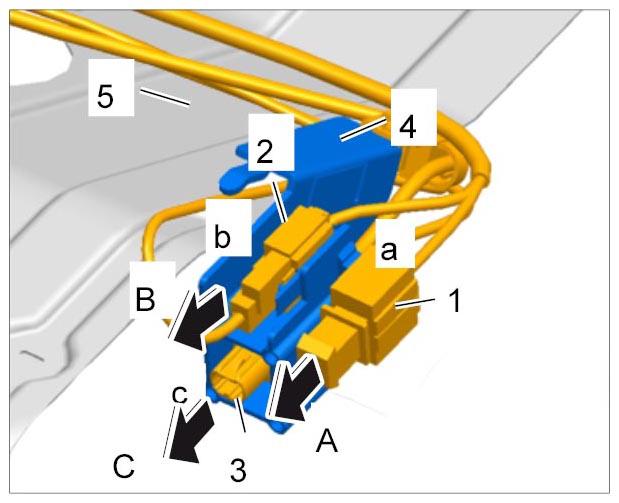

    Fig 3: Removing Electric Plug Connections For 1/3-Split Folding Rear Backrest
    G09941106Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 2.1. Release electric plug connection -1-  for wire harness for seat heating -a-  and pull it off -A-  .
    2. 2.2. Release electric plug connection -2-  for seat heating connection point -b-  and pull it off -B-  .
    3. 2.3. Release electric plug connection -3-  on wire harness for side airbag -c-  and pull it off -C-  .
    4. 2.4. Unclip the holder -4-  at the seat frame -5-  .
  3. Unclip electric wire harness -1-  for the seat backrest at the brackets -2-  .

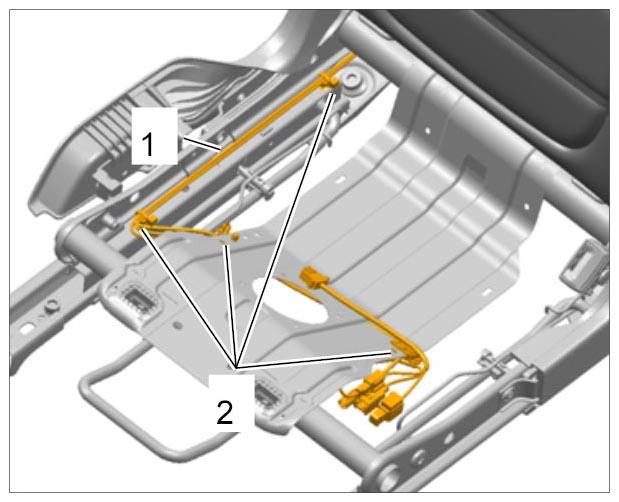

    Fig 4: Identifying Wire Harness Mounting On Seat Frame
    G09941107Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Loosen Velcro fasteners -1, 3-  at the bottom of the backrest cover -2- (-A-)  .

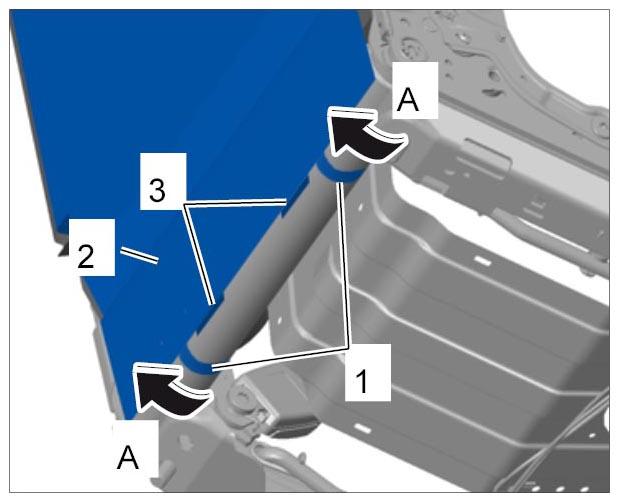

    Fig 5: Loosening Backrest Cover At Bottom
    G09941108Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Insert a suitable tool -1-  into the gap -2-  at the bottom of the backrest frame and carefully lever out the backrest cover piping -3-  over the entire length of the backrest.

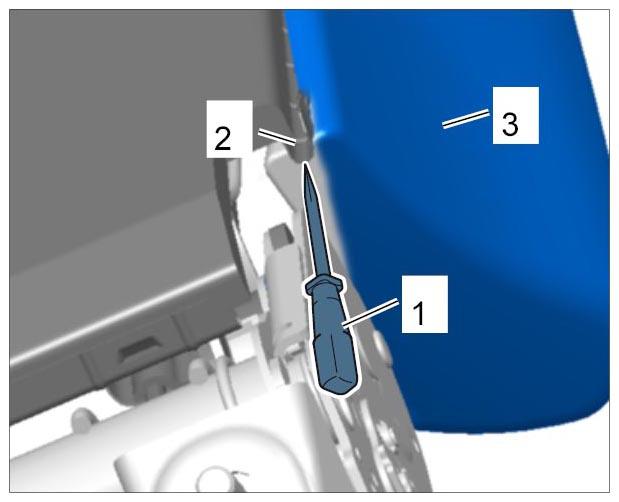

    Fig 6: Loosening Backrest Cover
    G09941109Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Carefully slide the backrest cover -1-  over the covers -2-  on the headrest support.

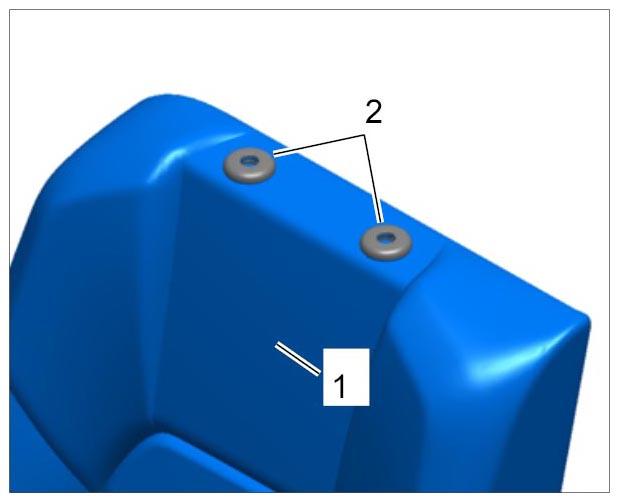

    Fig 7: Identifying Backrest Cover (Top)
    G09941110Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Unscrew fastening screw -4-  on side airbag -2-  .

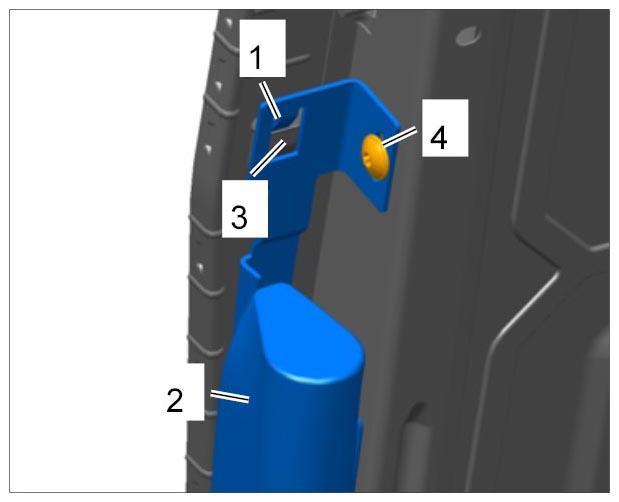

    Fig 8: Identifying Side Airbag On Backrest Frame
    G09941111Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Slide the side airbag holder -1-  up and take it out of the guide -3-  .

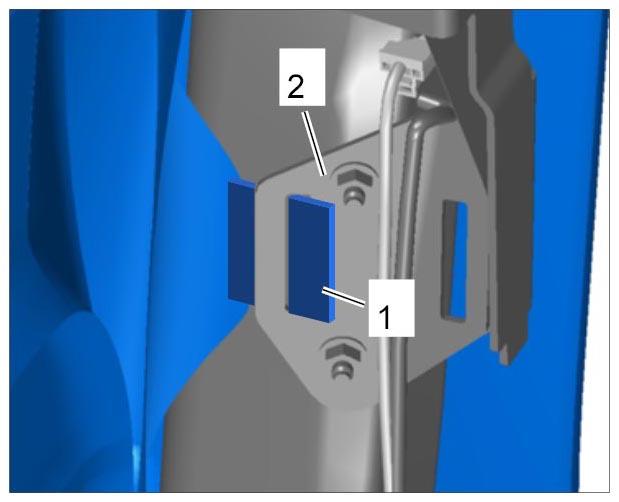

  9. Loosen the fastenings -1-  securing the cover to the side airbag holder -2-  at the front and rear.
    Fig 9: Identifying Cover On Airbag
    G09941112Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  10. Remove the padding for the 1/3-split folding rear backrest together with the cover and wire harness.
