Installing Padding For 1/3-Split Folding Rear Backrest

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Position the padding for the 1/3-split folding rear backrest together with the cover and wire harness on the seat frame.

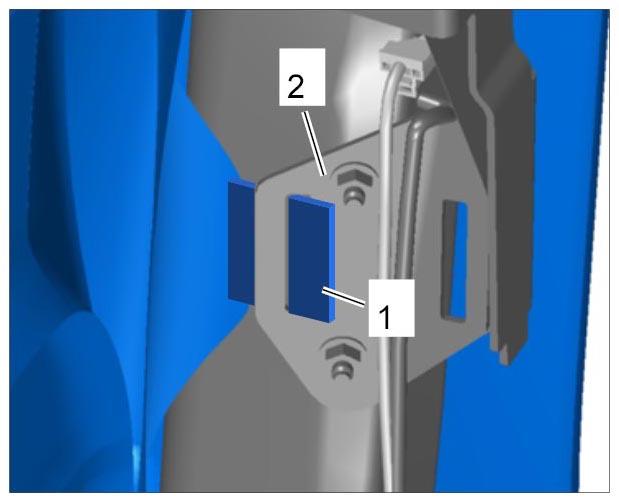

Secure the backrest cover -1- to the side airbag holder -2- at the front and rear.

Fig 1: Identifying Cover On Airbag
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit side airbag to the backrest frame.

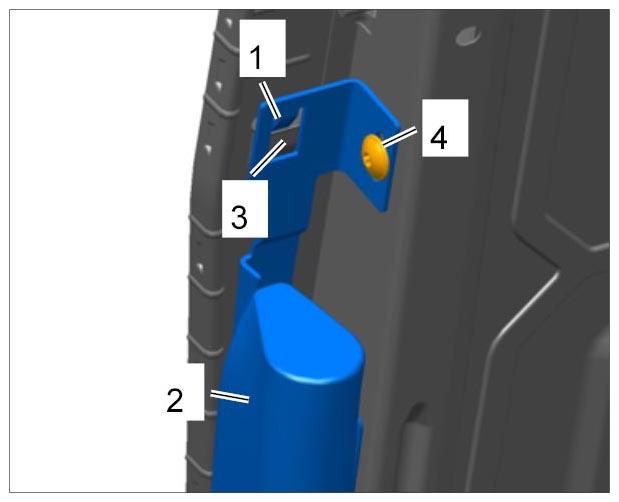

1. 3.1. Guide the holder -1- for the side airbag -2- into the guide -3- .

  Fig 2: Identifying Side Airbag On Backrest Frame
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Screw in fastening screw -4- and tighten to → Tightening torque: 9 Nm (6.5 ftlb.) .

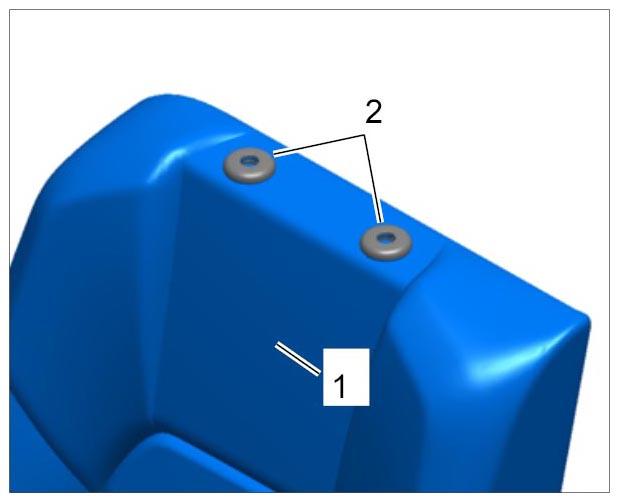

Carefully pull the backrest cover -1- over the covers -2- on the headrest guide.

Fig 3: Identifying Backrest Cover (Top)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect the existing electric plug connections.

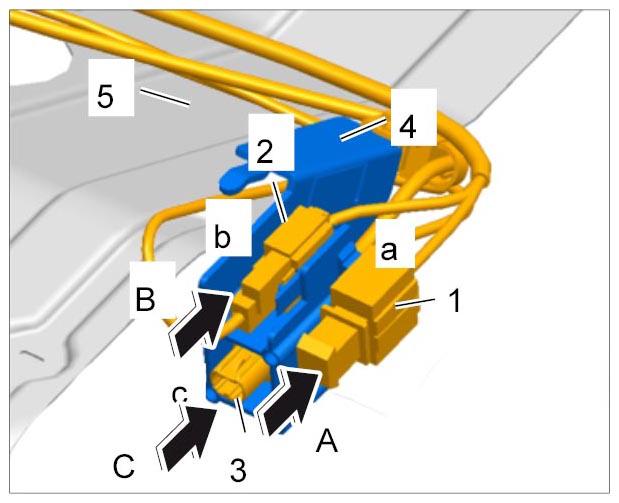

Fig 4: Connecting Electric Plug Connections For 1/3-Split Folding Backrest
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 5.1. Plug in electric plug connection -1- for seat heating -A- and lock it -a- .
2. 5.2. Plug in electric plug connection -2- for seat heating connection point -B- and lock it -b- .
3. 5.3. Plug in electric plug connection -3- for side airbag -C- and lock it -c- .
4. 5.4. Clip the holder -4- for the electric plug connections onto the seat frame -5- .

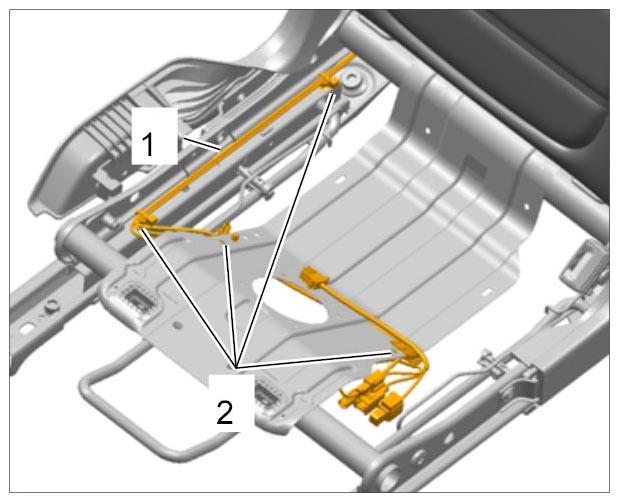

Clip in the wire harness -1- at the holders -2- on the seat frame.

Fig 5: Identifying Wire Harness Mounting On Seat Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

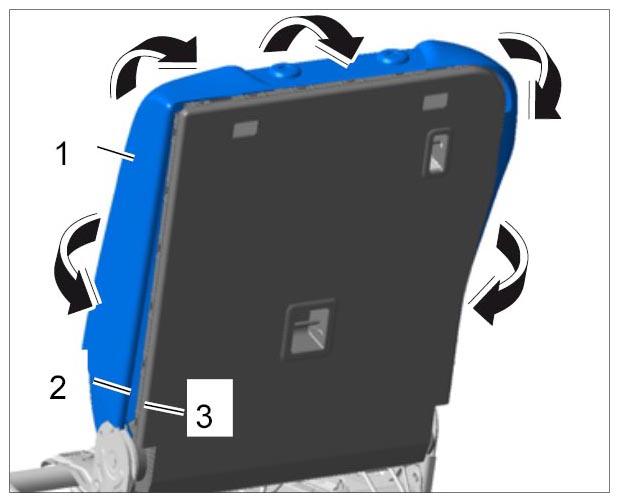

Carefully fold the backrest cover to the rear -arrows- and insert the piping -2- over the entire length into the guide -3- on the backrest frame → Seat piping .

Fig 6: Securing Rear Backrest Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check that the piping -2- on the backrest cover -1- engages securely in the guide -5- .

Fig 7: Checking Seat Piping
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

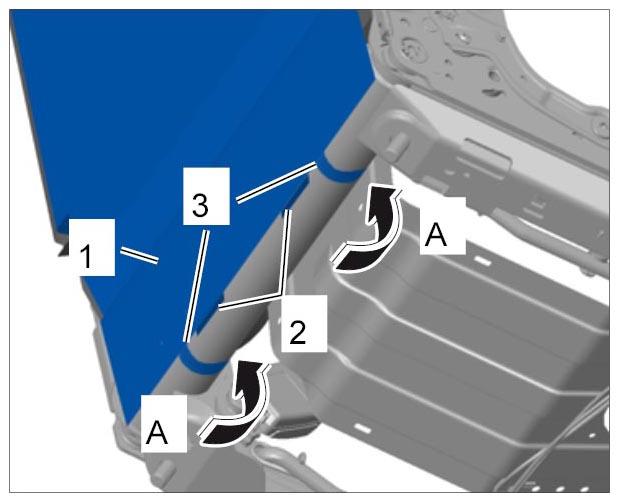

Pull the rear backrest cover -1- down -A- and close the Velcro fasteners -2, 3- .

Fig 8: Securing Backrest Cover At Bottom
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

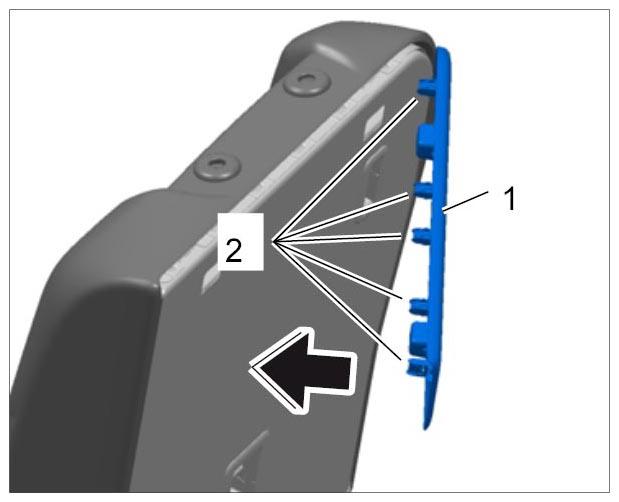

Clip in the rear trim panel at the top -1- at the retaining clips -2- (-arrow- ).

Fig 9: Fitting Trim Panel At Top
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
